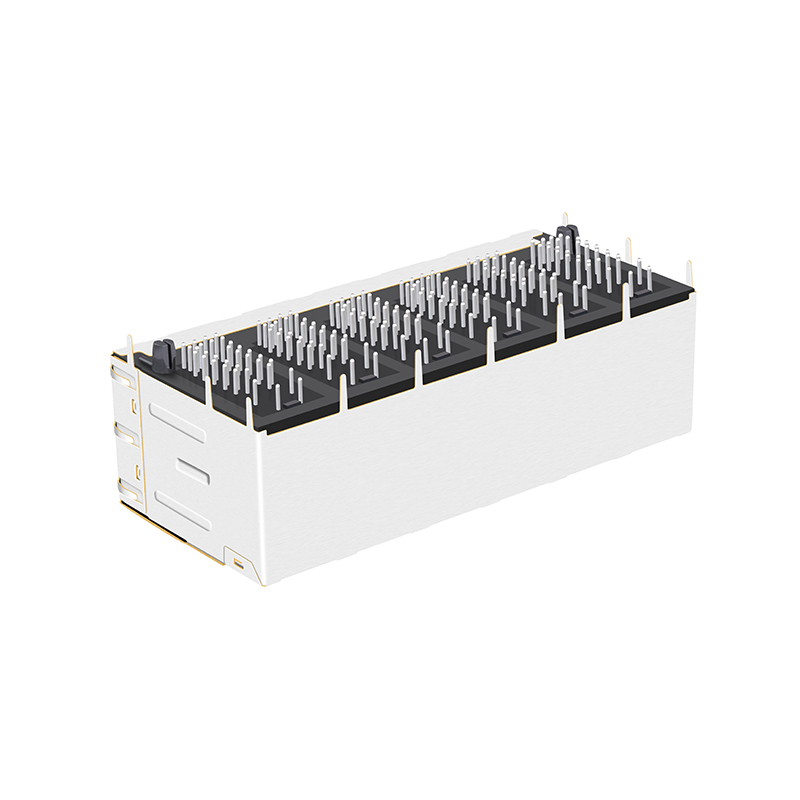

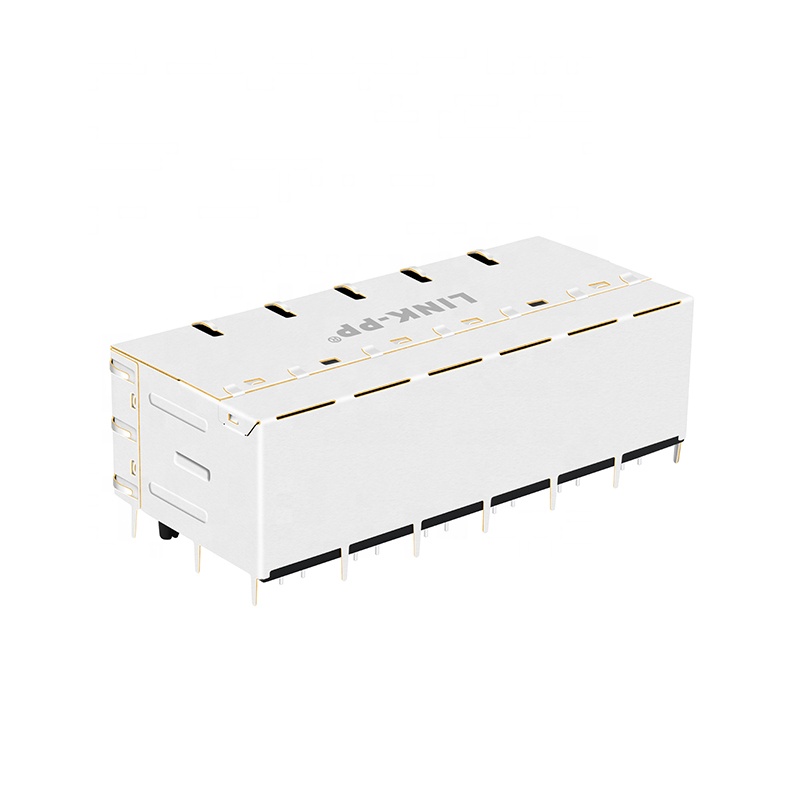

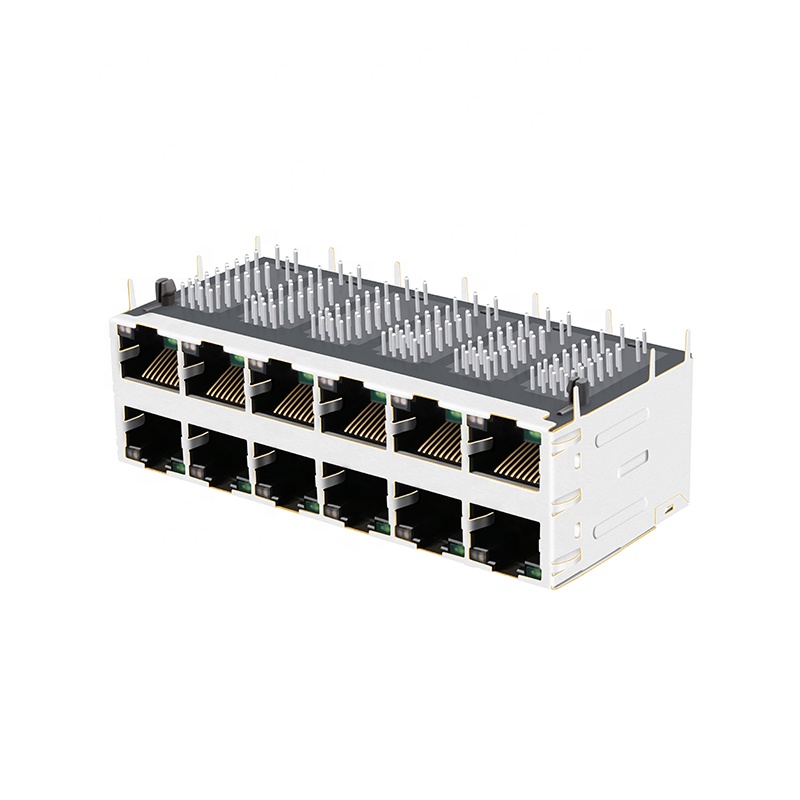

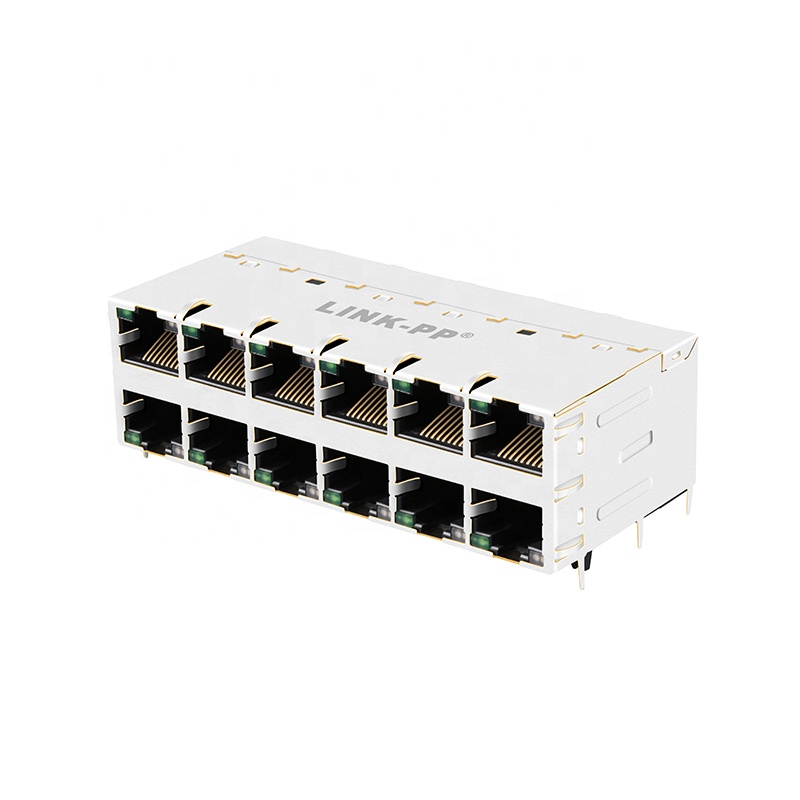

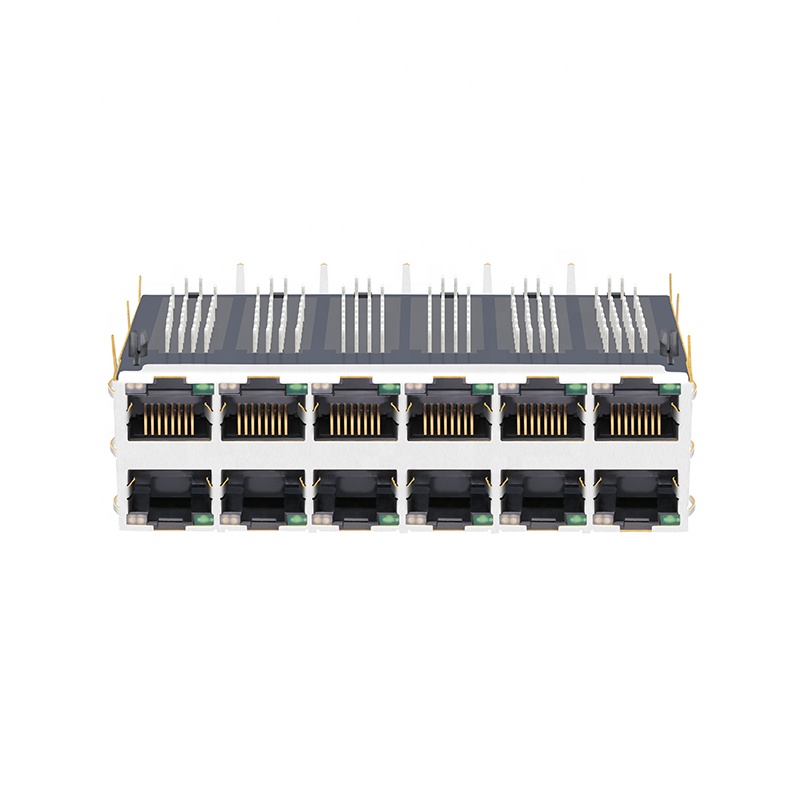

XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
1 / 5
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector

XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector

Send Inquiry

Product Description

XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
RJ45 Connector Overview
Product Detail
Products Description
ItemRJ45 Female Connector
Compatible WithXFATM8-STACK12-4
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non PoE)
Number of Ports2x6 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCB MaterialFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃ / -40℃ TO 85℃
Bst CircuitYes
AutoMDXYes
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT, C
Product Gallery & Categories
Category 1
Technical Drawing
Product View 1
Product View 2
Product View 3
Contact Info Visual
Facility 1
Facility 2
Manufacturing Excellence
✔ Established in 1997, a professional designer and manufacturer in magnetic telecom and networking components.
✔ Extensive line of state-of-the-art catalog products as well as custom capabilities.
✔ Global supplier serving more than 10,000+ customers in over 200 countries.
✔ Advanced multi-warehouse systems ensuring continuous inventory availability.
Production Line
Quality Control
Warehouse
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we offer free samples to test quality, though shipping fees are covered by the customer.
What is your standard delivery time?
Stock items are ready to ship immediately; mass production typically requires 15-30 days.
What kind of after-sales service do you provide?
We provide a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your specific requirements in detail.
What are your primary advantages?
With over 19 years of production experience, we are a trusted partner to major global technology corporations.
