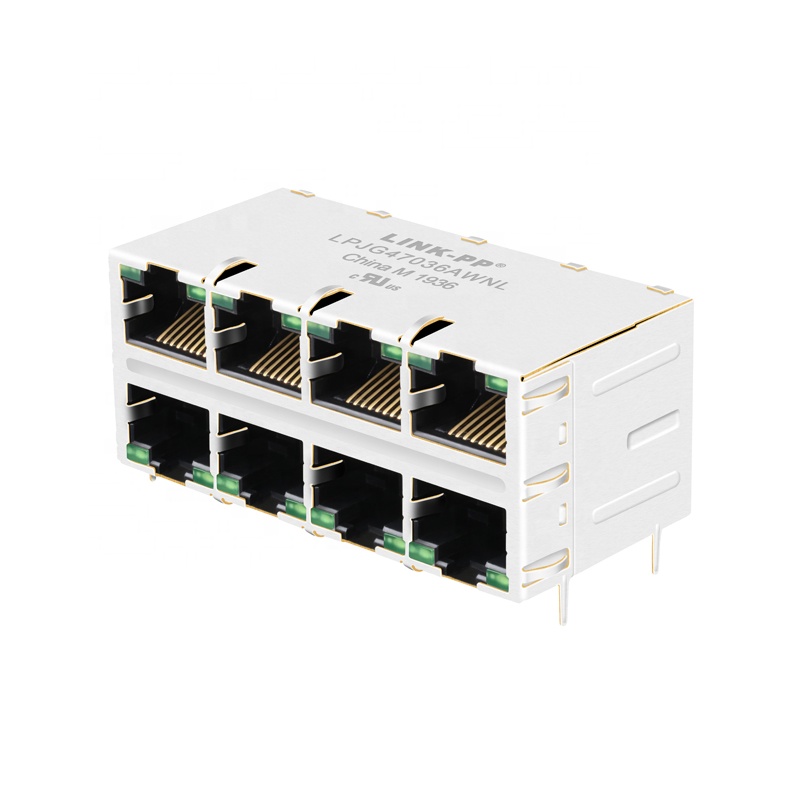

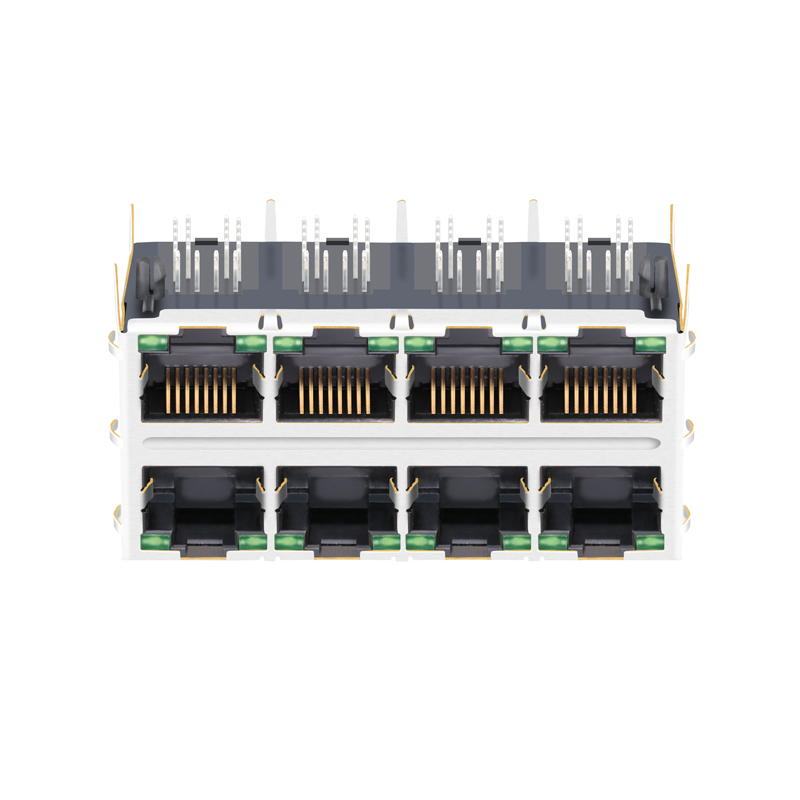

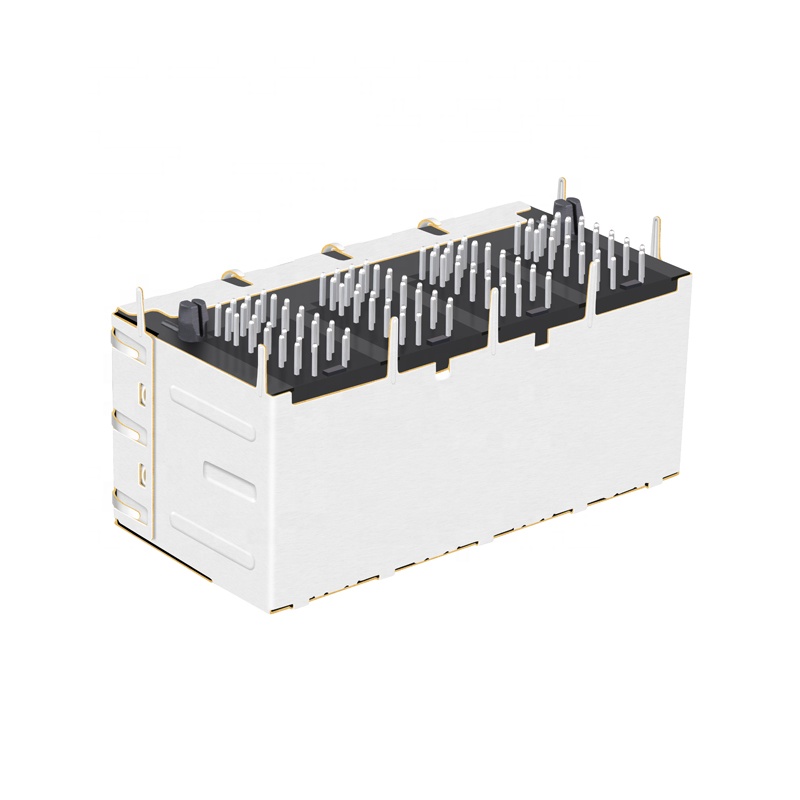

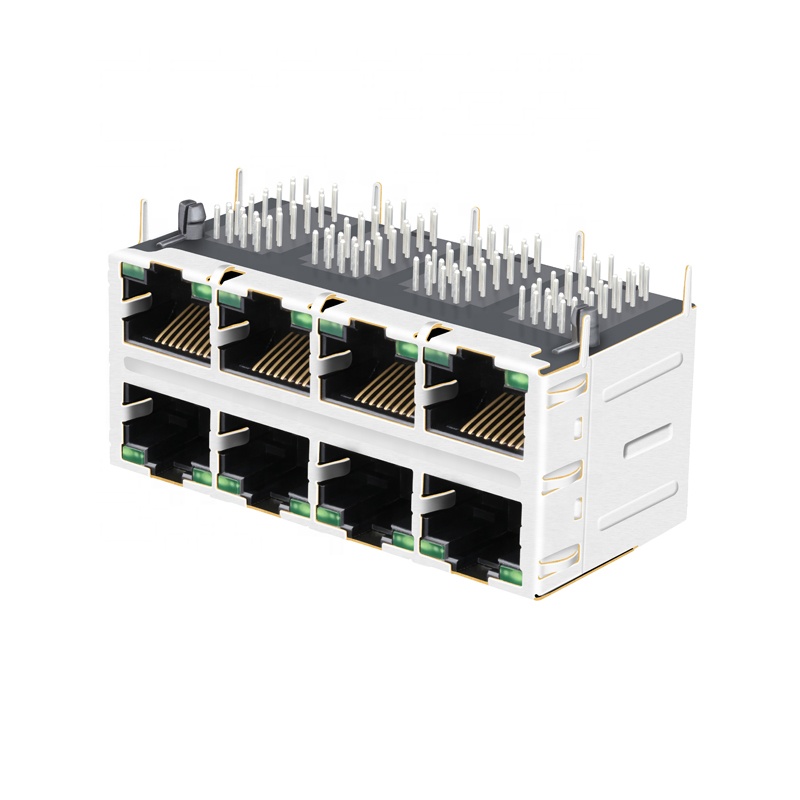

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector
| Part Number | LPJG47036AWNL |
| Application-LAN | ETHERNET(POE) |
| AutoMDIX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN/GREEN |
| Latch | UP/DOWN |
| Number of Ports | 2X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Shielding | Shielded |
| Speed | 2.5G BASE-T |
| Temperature | -20~+70℃ |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
Product Features & Capabilities
Professional Certification
✓ ISO 9001:2008
✓ UL Certification
✓ Reach Certification
✓ RoHS Compliance
✓ Active Environmental Policy
100% Guaranteed Quality
✓ Manufactured Under Strict Controls
✓ 100% Tested (Not Just Batch Tested)
✓ Preferred Supplier For Global Tech Leaders
✓ 6 Years Quality Guarantee
Competitive Advantage
✓ High Performance 2.5G BASE-T Speed
✓ Efficient Delivery Time: 2-3 Weeks
✓ Free Samples Available for Evaluation
✓ Custom Design Support for New Requirements
Frequently Asked Questions
1. What is the maximum data rate supported by this RJ45 connector?
This 2x4 Port RJ45 connector is designed for high-speed networking, supporting up to 2.5G BASE-T Ethernet applications.
2. Does this connector support Power over Ethernet (PoE)?
Yes, it is specifically designed for ETHERNET (POE) applications, making it suitable for powering devices via the network cable.
3. What are the operating temperature limits?
The connector is built to perform reliably within a temperature range of -20°C to +70°C.
4. What type of mounting and soldering is required?
The product uses a side entry PCB mount angle and is designed for THT (Through-Hole Technology) soldering.
5. Is the connector shielded against electromagnetic interference?
Yes, it features integrated shielding with EMI tabs to provide excellent protection against electromagnetic interference.
6. What certifications does this product hold?
The connector is manufactured under ISO 9001:2008 standards and is compliant with UL, Reach, and RoHS specifications.
