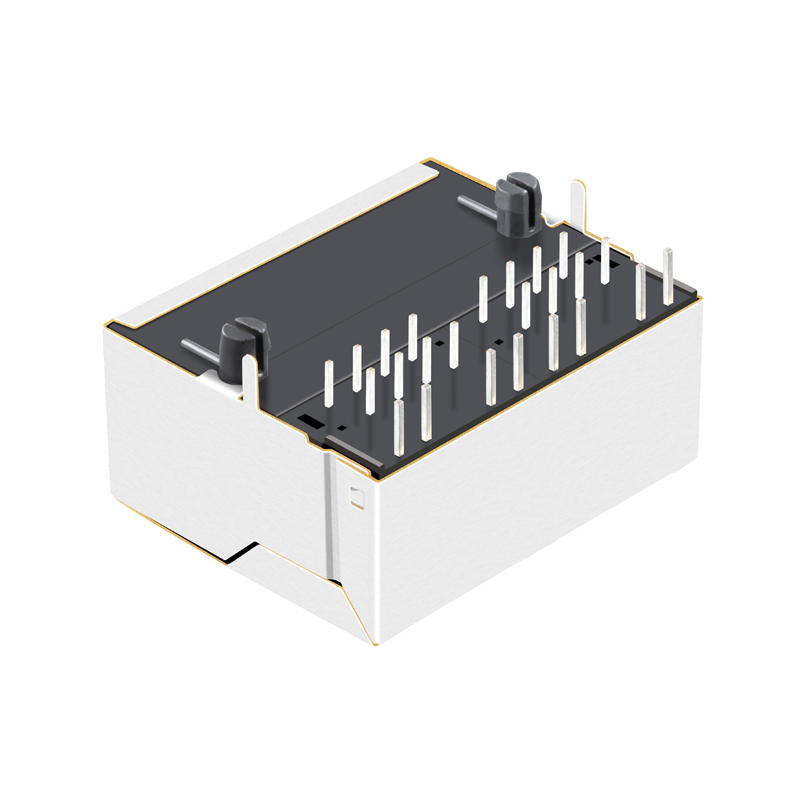

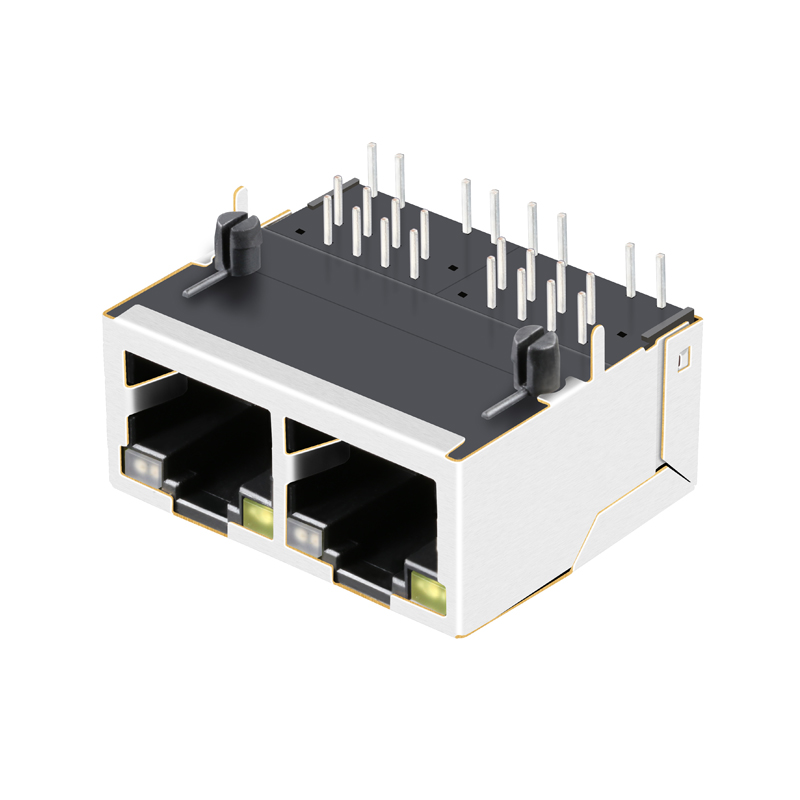

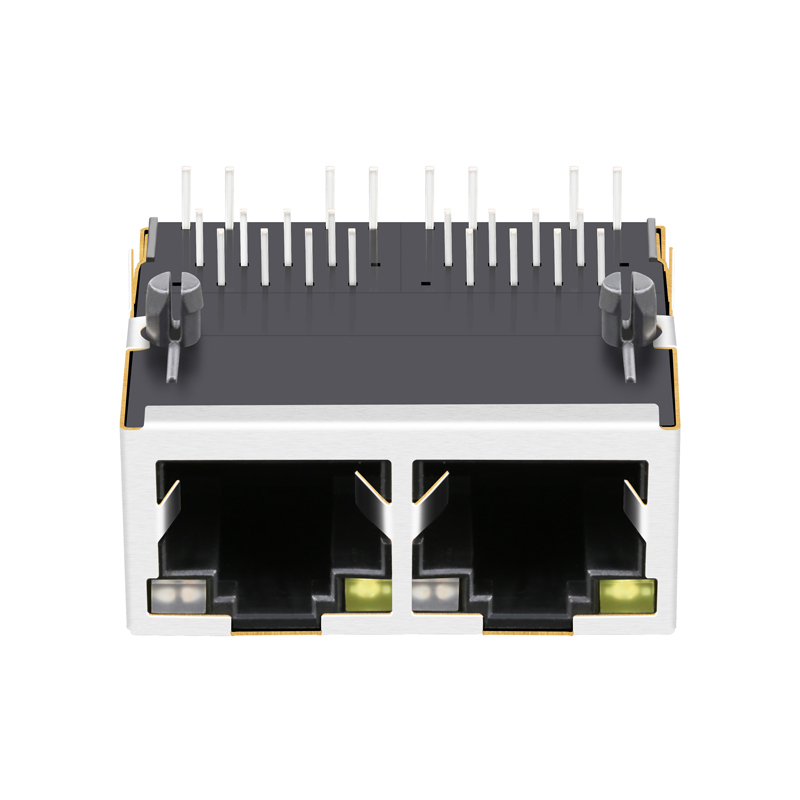

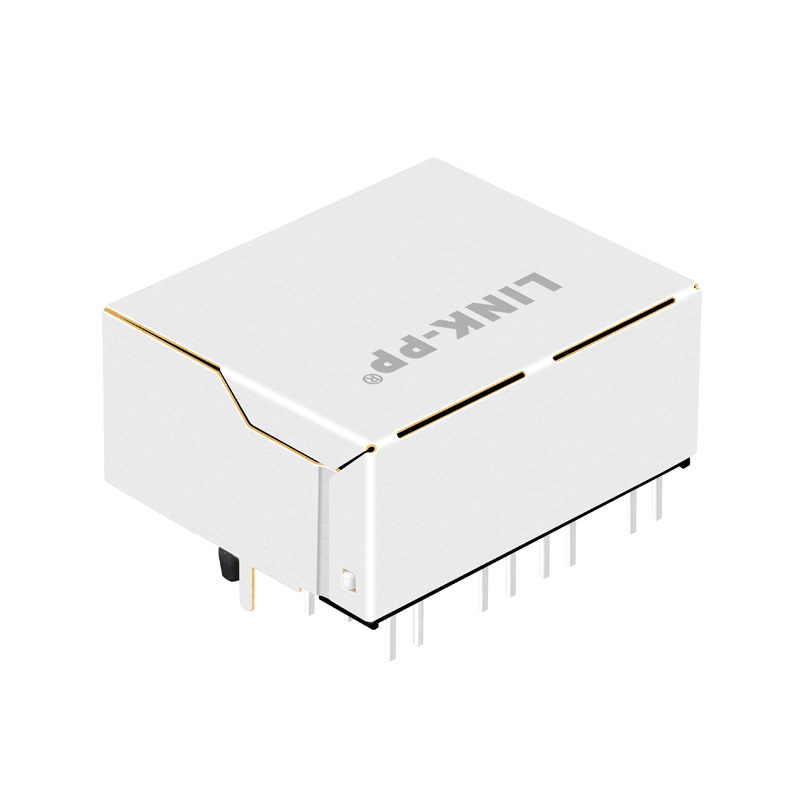

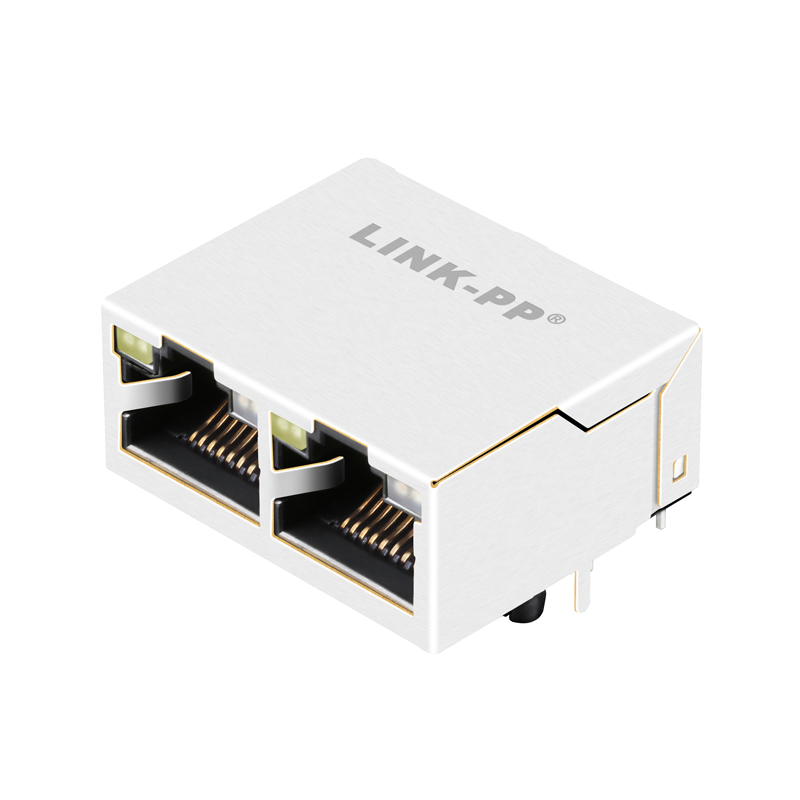

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
| Part Number |
1840538-3 6610128-1 1840538-4 1840538-2 |
| Application-LAN |
ETHERNET (Non-PoE) |
| AutoMDIX |
YES |
| Bst Circuit |
YES |
| Configuration RX / TX |
1CT:1 / 1CT:1 |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
6 |
| LED Option |
GREEN/GREEN |
| Latch |
UP |
| Number of Ports |
1x2 |
| PCB Mount Angle |
SIDE ENTRY |
| RoHS Compliant |
YES |
| Shielding |
Shielded with EMI Tabs |
| Speed |
10/100 Base-T |
| Temperature |
0 ~ 70℃ |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
ISO 9001:2008 Certified
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy
100% Guaranteed Quality
Manufactured Under Strict Controls
100% Fully Tested (Not Just Batch)
Quality Guarantee: 6 Years
Long-term Industry Experience
Competitive Price & Service
Highly Competitive Pricing
Fast Delivery: 2-3 Weeks
Free Samples Available
Custom Design Support
1. What is the maximum data speed supported by this RJ45 connector?
This connector is designed for 10/100 Base-T Ethernet applications, ensuring stable data transmission for standard networking needs.
2. Is this connector shielded for EMI protection?
Yes, it features a fully shielded design with EMI tabs to provide excellent electromagnetic interference protection and maintain signal integrity.
3. Does the connector support Power over Ethernet (PoE)?
No, this specific series is designated as Non-PoE. It is intended for standard Ethernet applications without power delivery requirements.
4. What are the plating options for the contact mating area?
We offer multiple gold plating thicknesses for the contact area, including 6u", 15u", and 30u", depending on your durability and conductivity requirements.
5. Are these components RoHS compliant?
Yes, our RJ45 connectors are fully RoHS compliant and meet environmental standards including Reach and active environmental policies.
6. What is the standard operating temperature range for these parts?
The standard operating temperature range is 0℃ to 70℃, making them suitable for most commercial and industrial networking environments.
