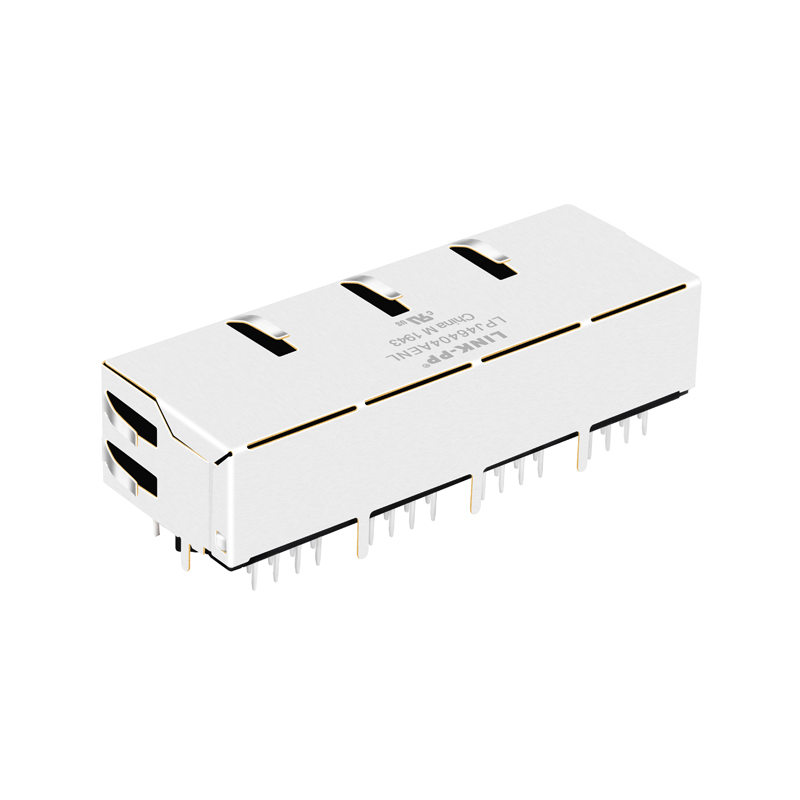

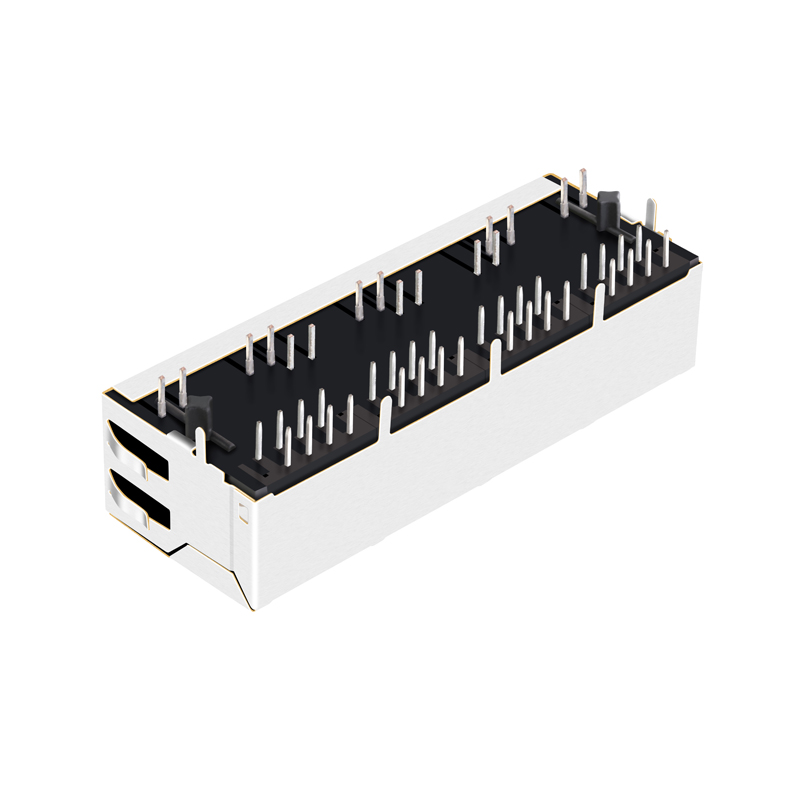

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

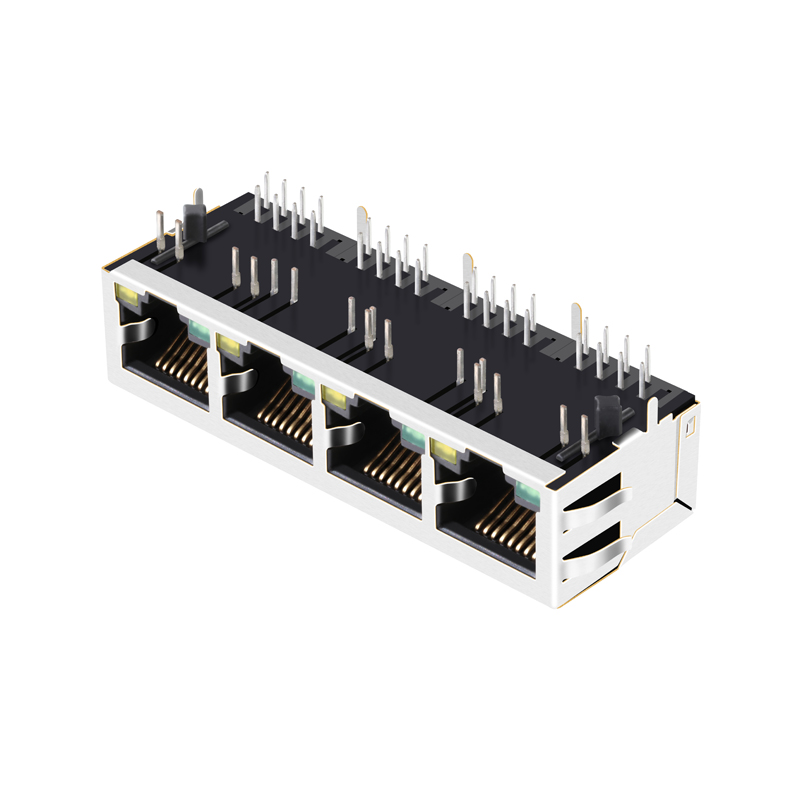

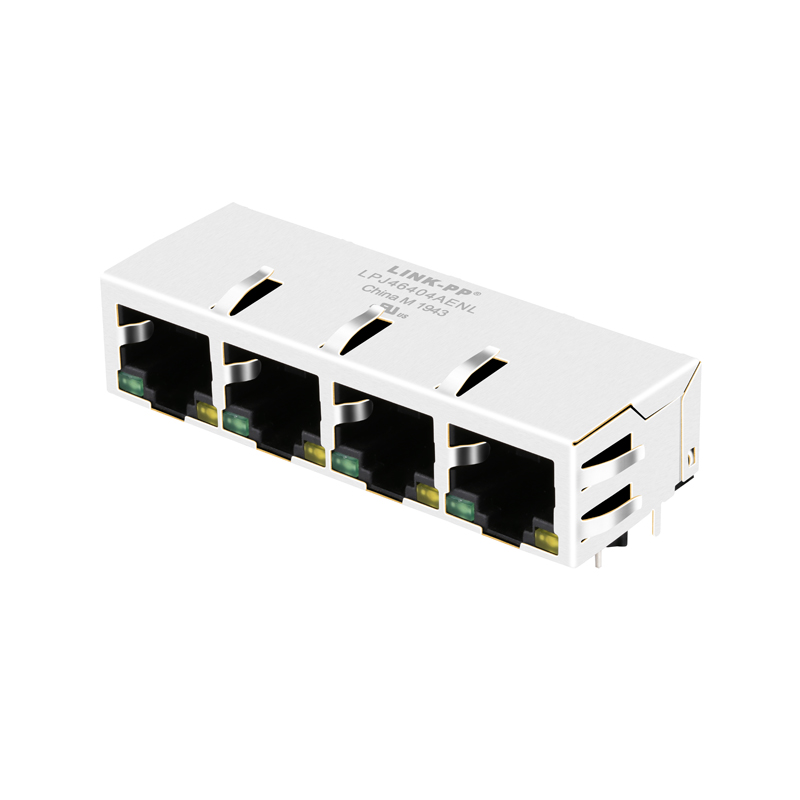

Product Image 1

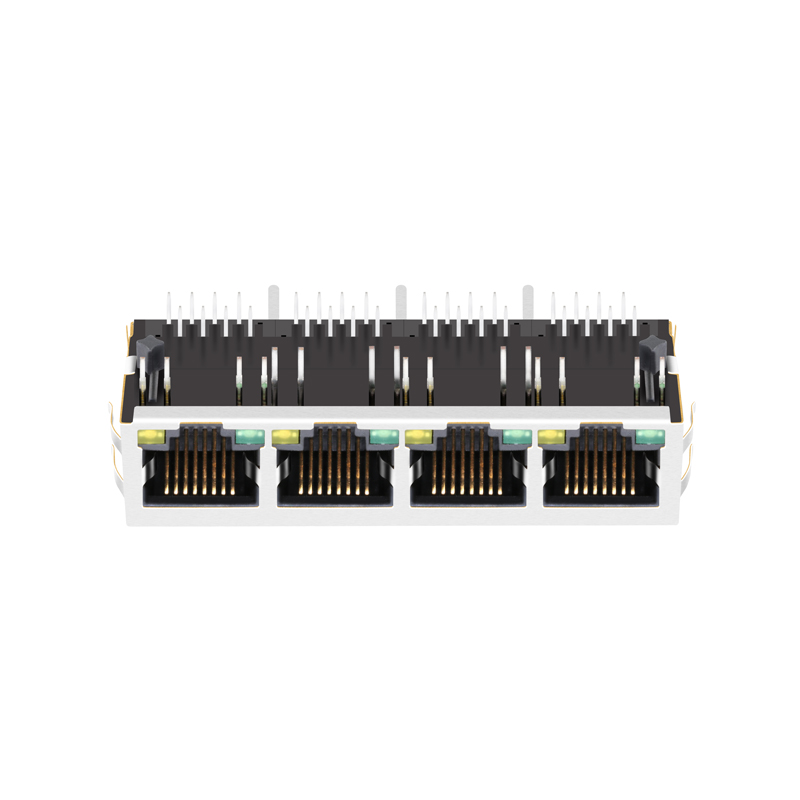

Product Image 2
■ Specification
Part NumberLPJ46404AENL
Cross ReferenceJXD0-4005NL / JX80-0033NL
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(Non_PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen/Yellow Led
Cores per Jack4
ShieldingShielded, Emi Finger
Number of Ports1x4 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
Detailed View 1
Detailed View 2
Technical Drawing 1
Technical Drawing 2
■ Manufacturing Excellence

As a specialized manufacturer of magnetic telecom and networking components, our operations are certified by ISO9001:2000, ROSH, REACH, CE, and UL. We utilize advanced manufacturing facilities and test equipment imported from abroad to ensure the highest quality standards. With a robust production capacity of 3000K per month, we provide efficient delivery times and professional technical support for all magnetic component solutions.

Our products are widely integrated into networking and communication equipment including HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.

Production Process

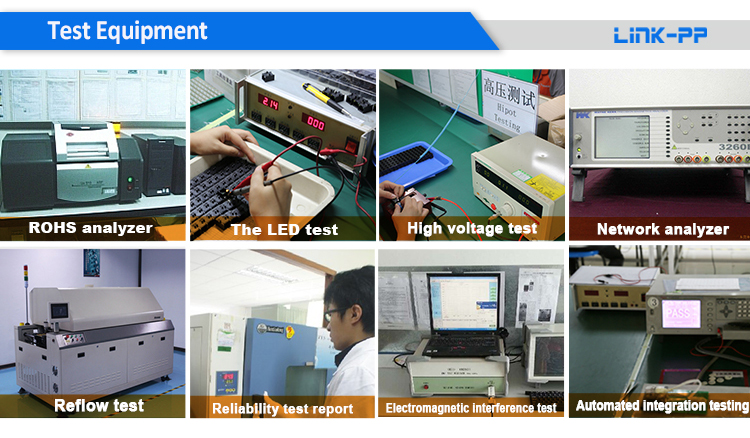

Quality Control
■ Main Products
✔ 10/100/1000M / 2.5G/5G/10G LAN pulse transformer and filter
✔ RJ45 connector with 10/100/1000M / 2.5G/5G/10G magnetic
✔ T1/E1, T3/DS3/E3/STS-1 interface line transformer
✔ ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Factory Overview
Certifications
Global Reach
FAQ
Q1: Are you a manufacturer or trade company?
A: We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: Can I get some samples?
A: Yes, 3-5 pcs free samples are available for your testing. Small batch orders are also acceptable.
Q3: Is OEM service available?
A: Yes. We have extensive experience in transforming your designs and ideas into real products, including laser printing your brand on the components.
Q4: What is the typical lead time?
A: With our professional production team, we usually ship within 30 days. Please contact our sales team for specific project timelines.
Q5: What quality certifications do your products hold?
A: Our products and processes are fully certified by ISO9001:2000, RoHS, REACH, CE, and UL standards.
Q6: Can you provide technical support for networking solutions?
A: Yes, we provide complete professional solutions for magnetic components along with strong technical support for various networking applications.
