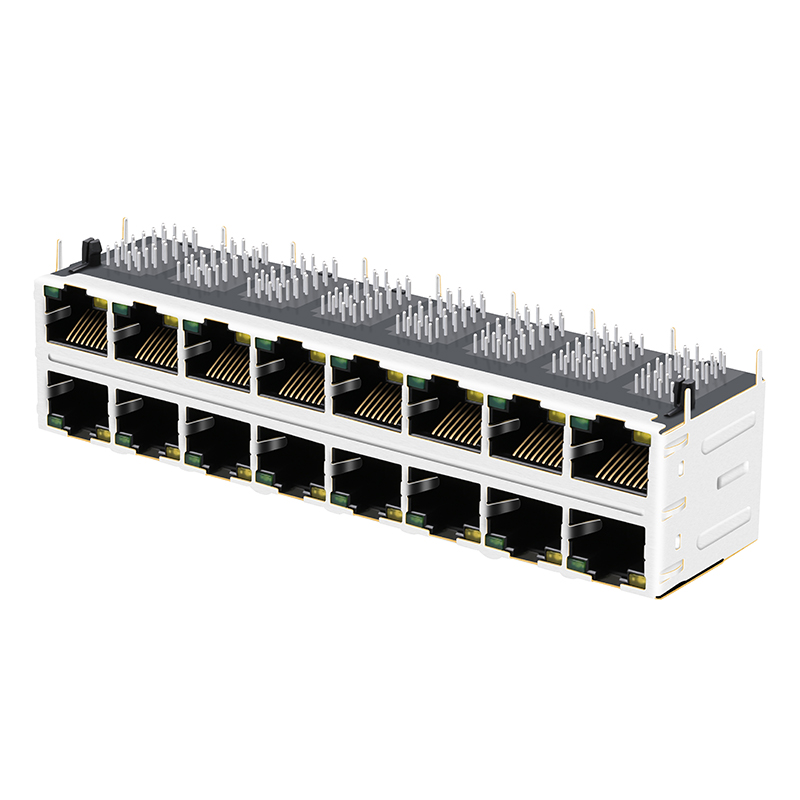

2 * 8 Port RJ 45 Jack, Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

RJ45 Jack Shielded Banner

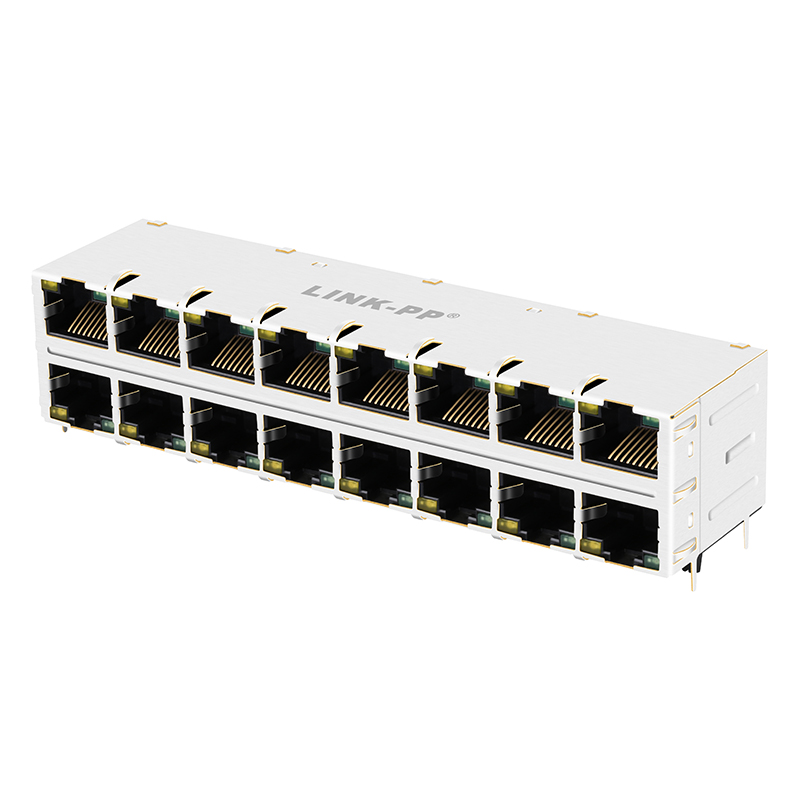

RJ45 Connector Main Image
RJ45 Jack Specs Line
Product Specifications
Part NumberRJ45 connector
Application-LANETHERNET(NON POE)
AutoMDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores Per Port8
DiodesNO DIODES
LED OptionWITH LEDS
LatchUp/Down
Number of Ports2x8
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Shield EMI TabsShield, EMI Finger
Speed10/100/1000 Base-T
Temperature-40°C ~ 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Technical Drawing
Quality and Standards
  • ISO 9001:2008 Certified
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
Performance Guarantee
  • Manufactured Under Strict Quality Controls
  • 100% Fully Tested (Not Just Batch Tested)
  • Preferred Supplier for High-End Networking Equipment
  • Quality Guarantee: 6 Years
Competitive Advantages
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Available
  • Custom Design Provisions for Specific Requirements

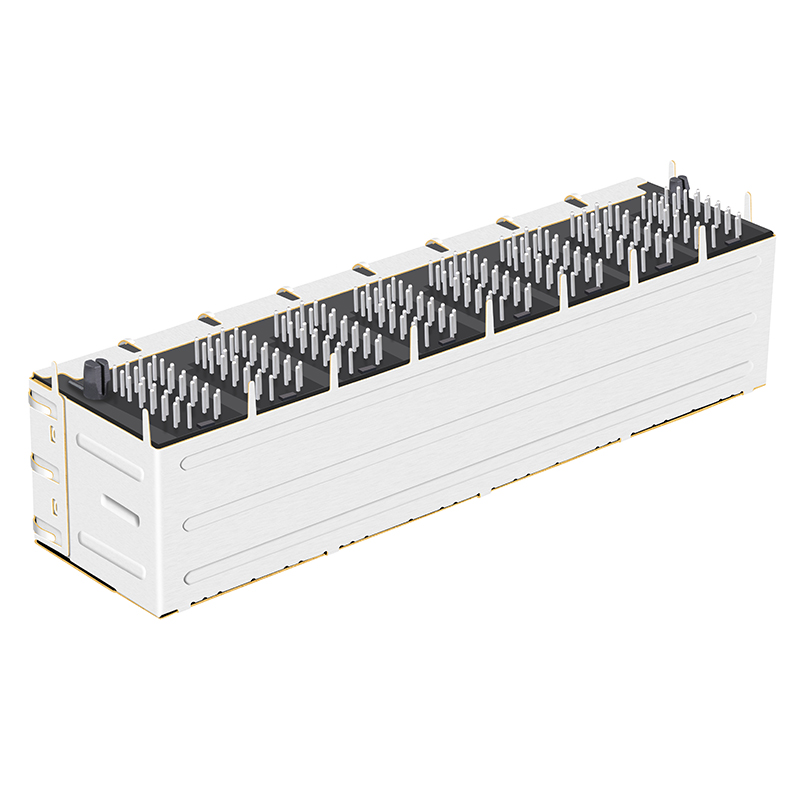

Production Detail

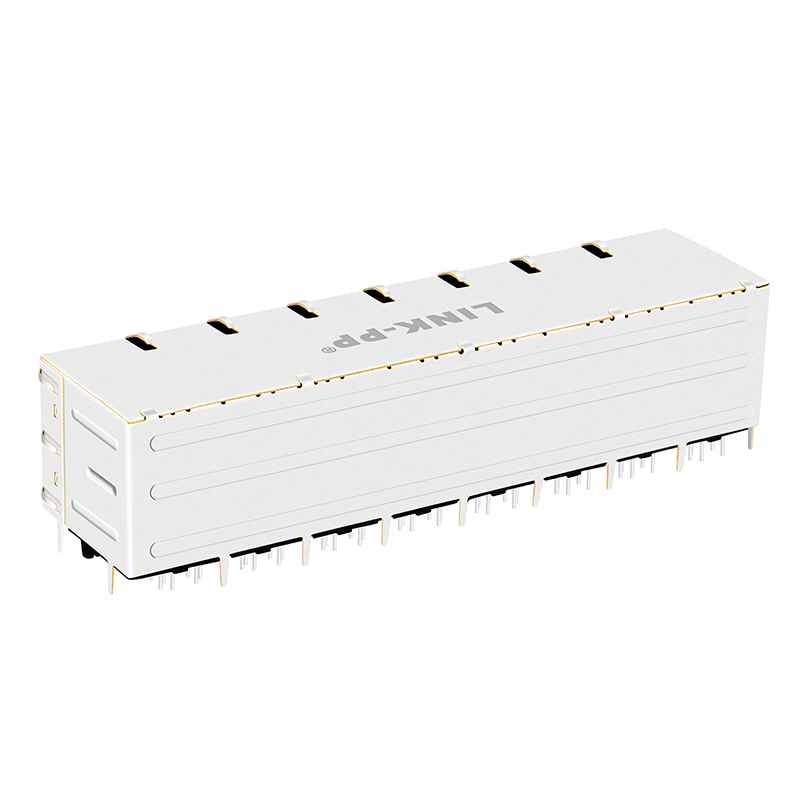

Shielded Detail

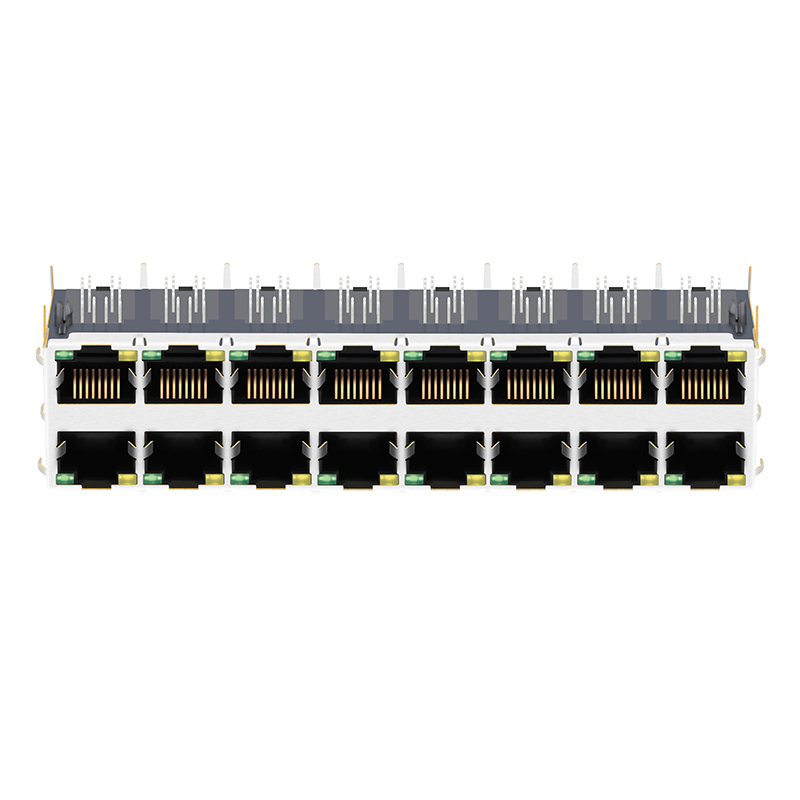

Side Entry View
Footer Banner 1
Footer Banner 2
Footer Banner 3

Frequently Asked Questions (FAQ)

1. What is the transmission speed of this 16-port RJ45 connector? The connector supports 10/100/1000 Base-T Gigabit Ethernet speeds.
2. Can this connector be used in industrial environments with extreme temperatures? Yes, it is designed to operate within a wide temperature range of -40°C to 85°C, making it suitable for industrial applications.
3. Does this RJ45 jack support Power over Ethernet (PoE)? This specific model is designed for ETHERNET (NON POE) applications.
4. What type of mounting and soldering is required for installation? It uses a Side Entry PCB mount angle and is designed for THT (Through-Hole Technology) solder.
5. What options are available for the contact plating? The contact mating area is available with Gold plating in thicknesses of 6u", 15u", or 30u" to meet different durability requirements.
6. Is the product compliant with international environmental standards? Yes, the connector is RoHS compliant (RoHS-5) and meets Reach certification standards.
