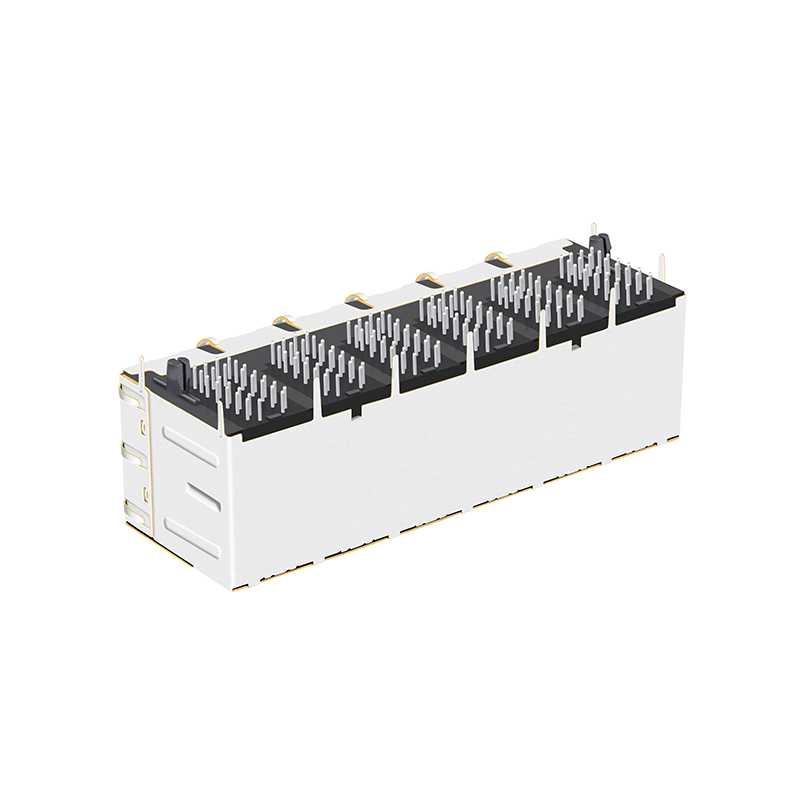

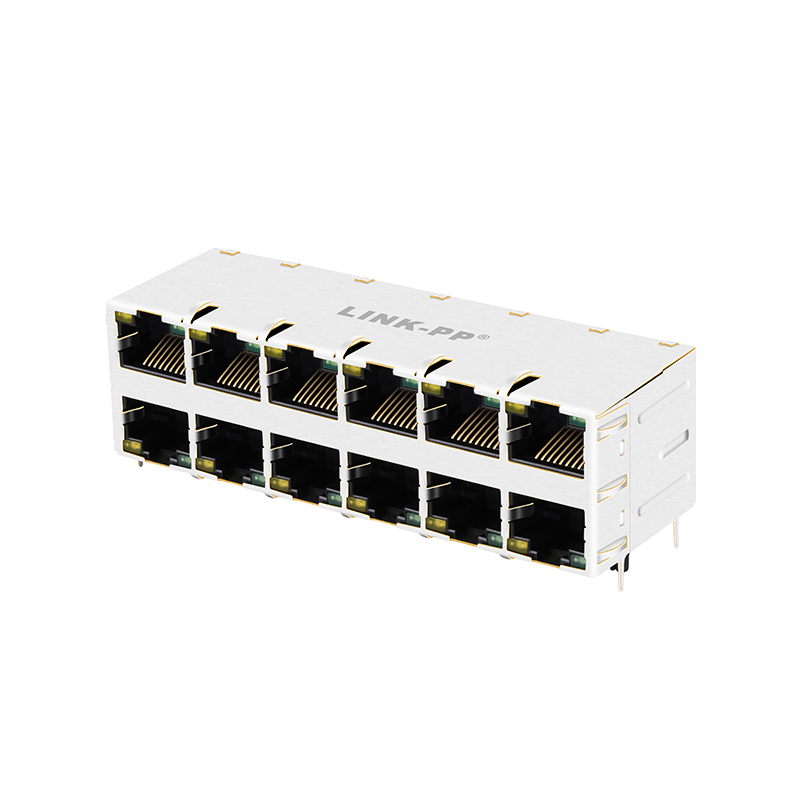

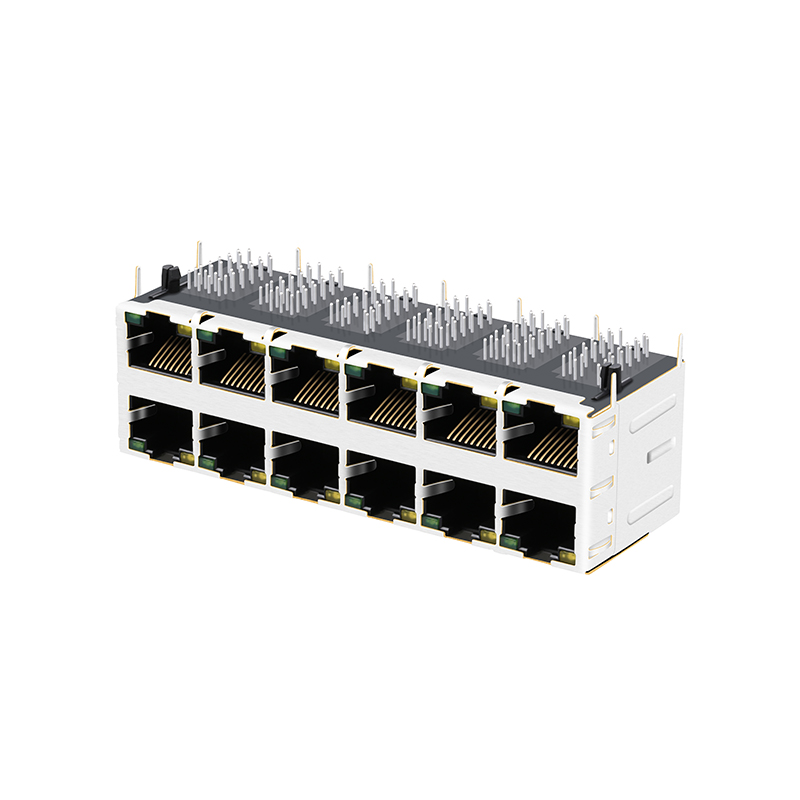

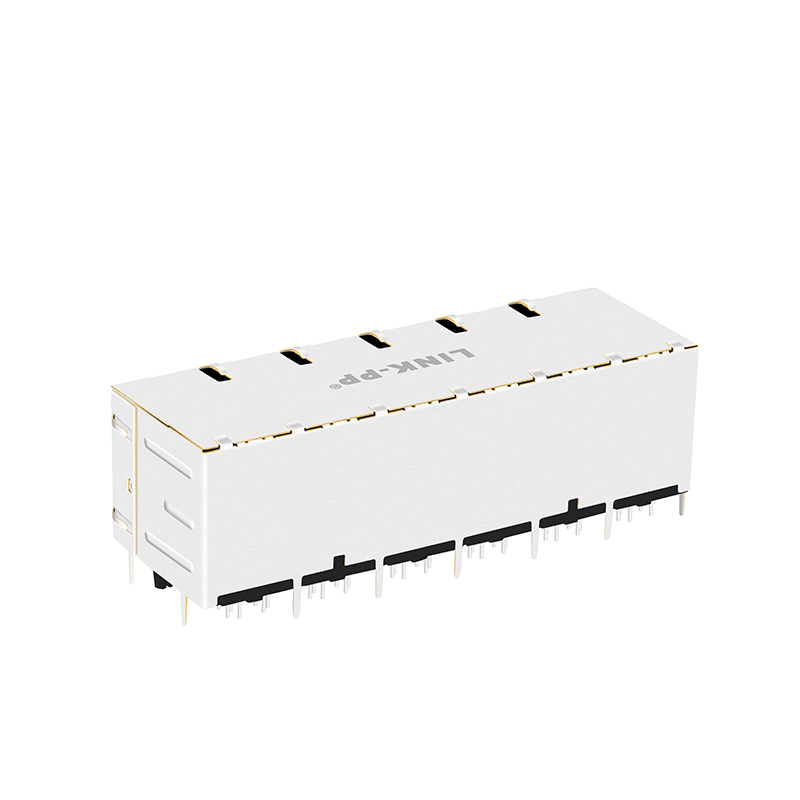

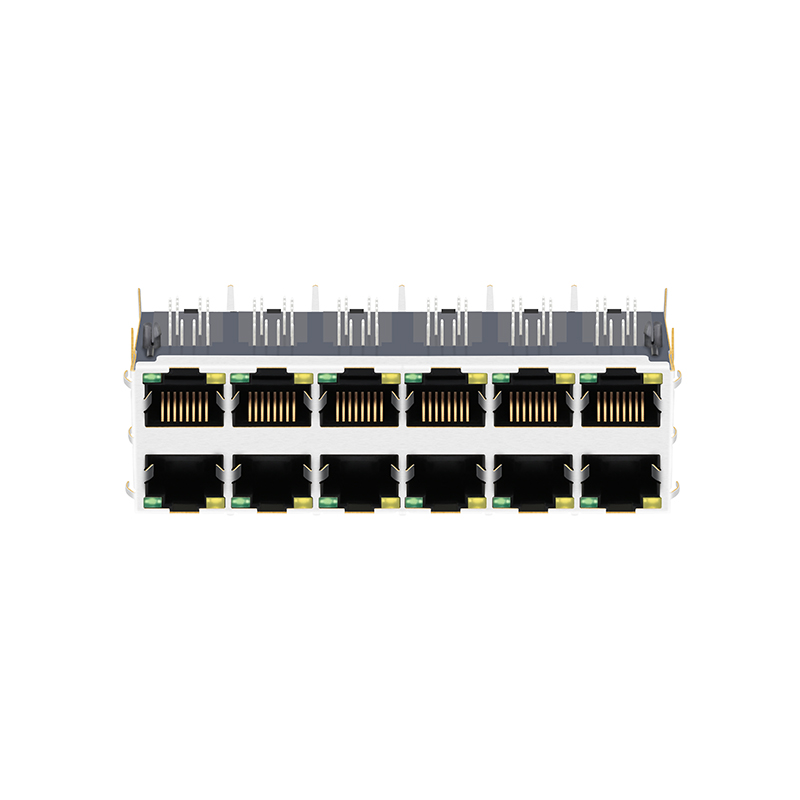

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP

1 / 5

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP

Send Inquiry

Product Description

10/100/1000 Base-T RJ45 Stacked Jack 2x6 Port RJ45 Jack RJGE-12M6170DJP

Part Number	RJGE-12M6170DJP
Application-LAN	ETHERNET (NON POE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WITH/WITHOUT LEDS
Latch	UP/DOWN
Number of Ports	2X6
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100/1000/10G BASE-T
Temperature	0 TO 70°C / -40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Our Solutions

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guaranteed Quality

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
OEM Partner for Major Industry Leaders for 9 Years
Trusted by Global Tech Giants
Quality Guarantee: 6 Years

Competitive Price And Service

Highly Competitive Pricing in the Global Market
Rapid Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Custom New Design for Specific Customer Requirements
Significant Savings on International Shipping Costs

Preferred Supplier Of Top Global Electronics Manufacturers

You Will Find Our Components On High-Performance BeagleBone Boards

Frequently Asked Questions (FAQ)

Q1: What transmission speeds does this RJ45 Stacked Jack support? A: It supports a wide range of speeds including 10/100/1000 Base-T and is compatible with 10G Base-T applications.

Q2: Does this connector support Power over Ethernet (PoE)? A: No, this specific part number (RJGE-12M6170DJP) is designed for non-PoE Ethernet applications.

Q3: What are the LED options for this 2x6 port jack? A: This model can be configured either with or without LEDs according to your specific PCB design requirements.

Q4: What is the operating temperature range for this component? A: It is available in both commercial grade (0 to 70°C) and industrial grade (-40 to 85°C) temperature ranges.

Q5: Is the product compliant with environmental standards? A: Yes, it is fully RoHS compliant and meets UL and Reach certification standards.

Q6: What type of mounting and soldering is required? A: It uses a Through-Hole Technology (THT) solder pin type with a side-entry PCB mount angle.
