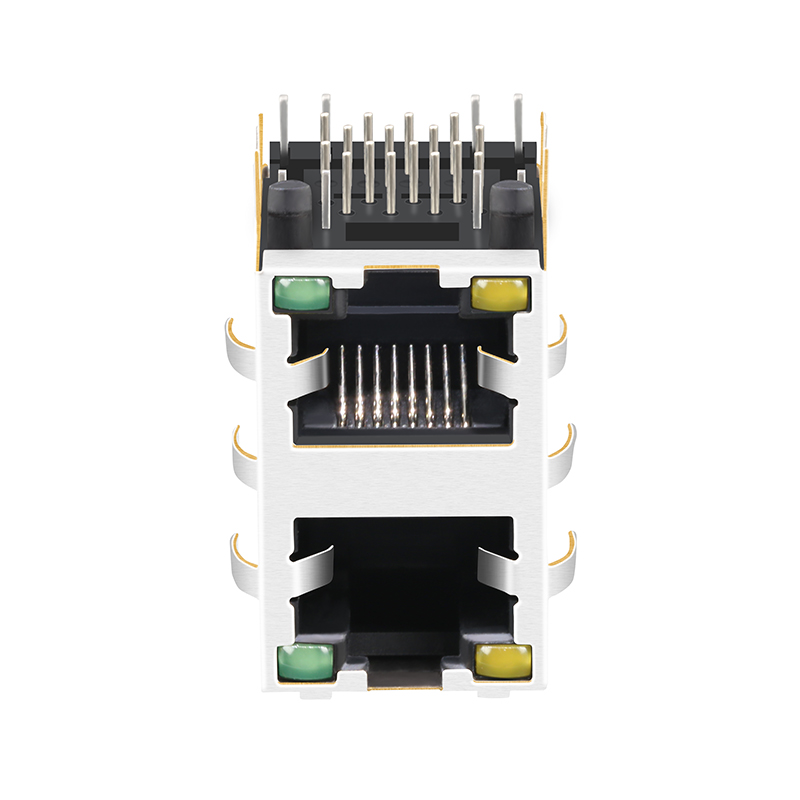

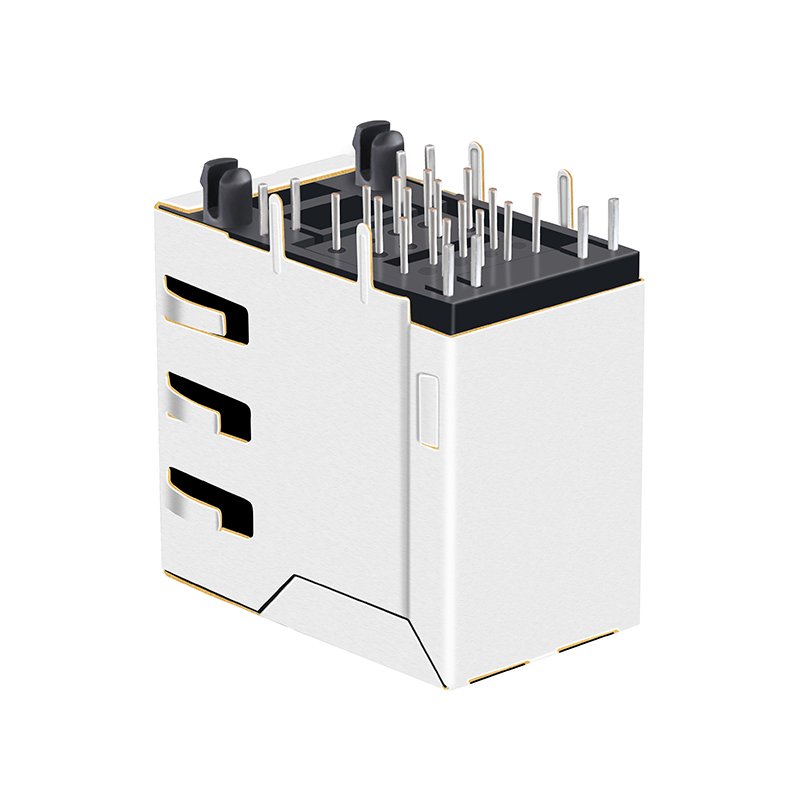

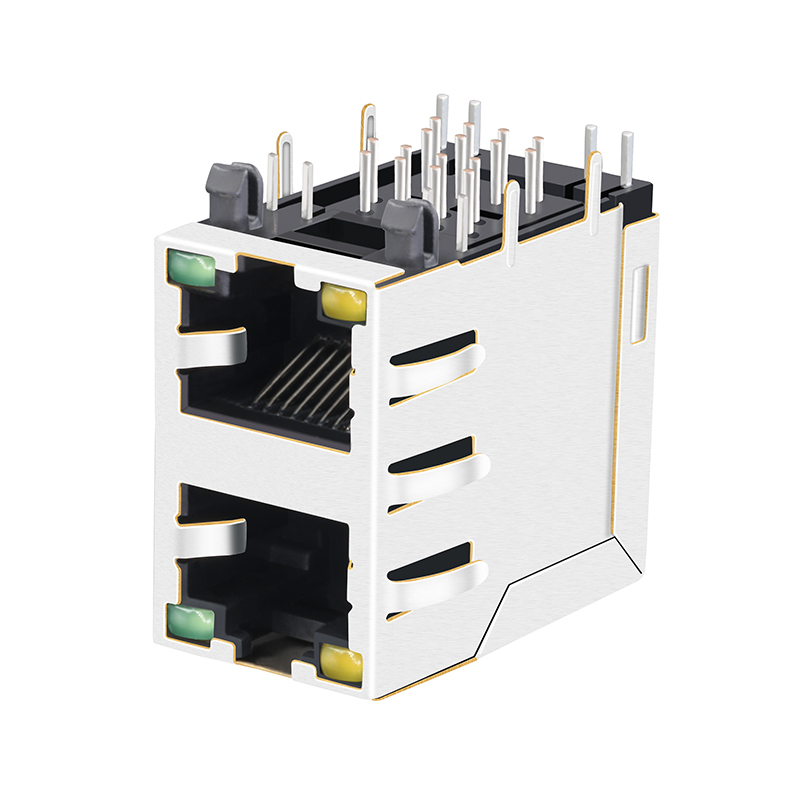

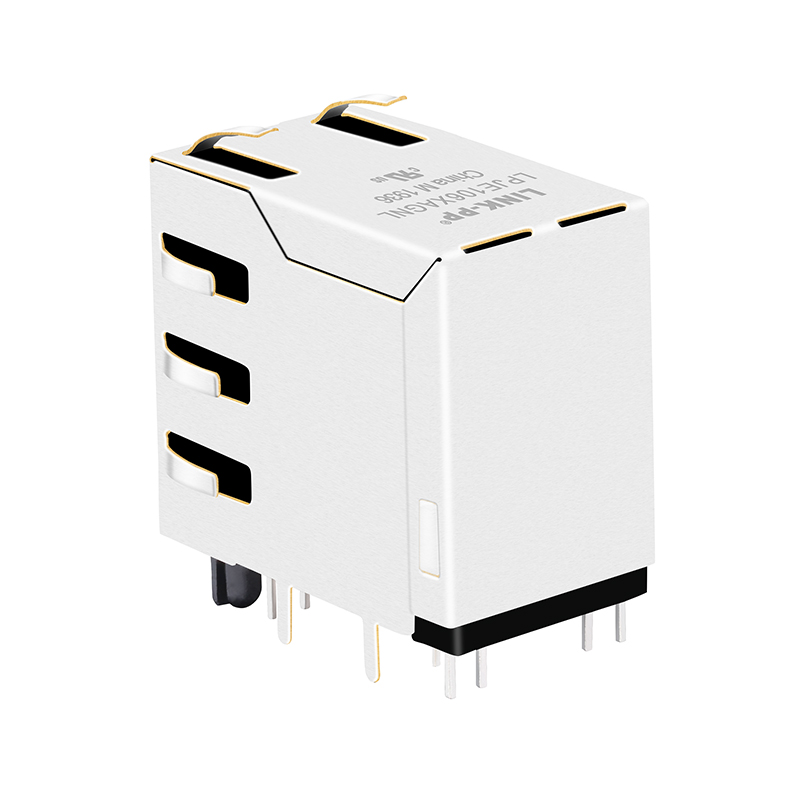

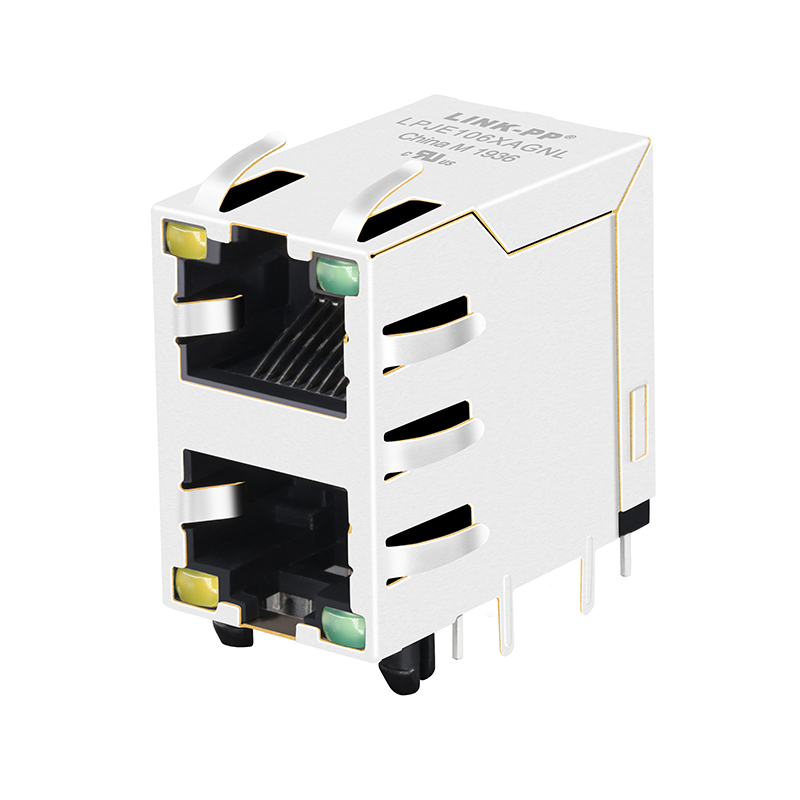

High-performance RJ45 Female Connector designed for Ethernet applications (Non-PoE). This 2x1 port jack features built-in Green/Yellow LEDs and is optimized for stable network connectivity without magnetics.
| Item | RJ45 Female Connector |
| Part Number | LPJE106XAGNL |
| Compatible With | RJSAE-5381-02 615016245421 |
| Connector Type | Jack |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application | Ethernet (Non PoE) |
| Number of Ports | 2x1 Port |
| Speed | Without Magnetics |
| Latch Direction | Down/Up |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Temperature Range | 0℃ TO 70℃ / -40℃ TO 85℃ |
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve global OEMs, contract manufacturers, and CEMs across over 200 countries.
