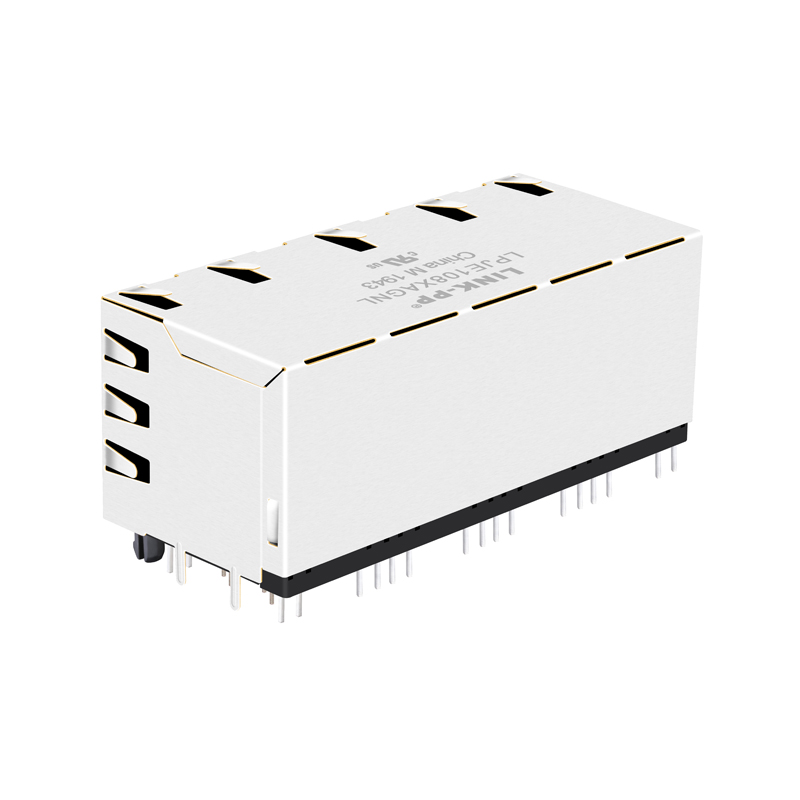

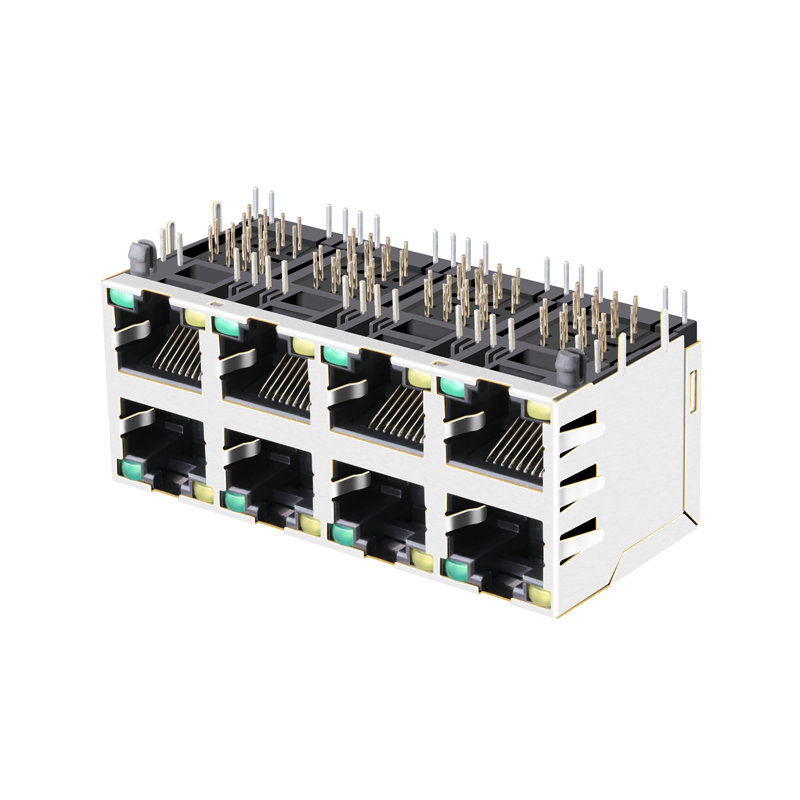

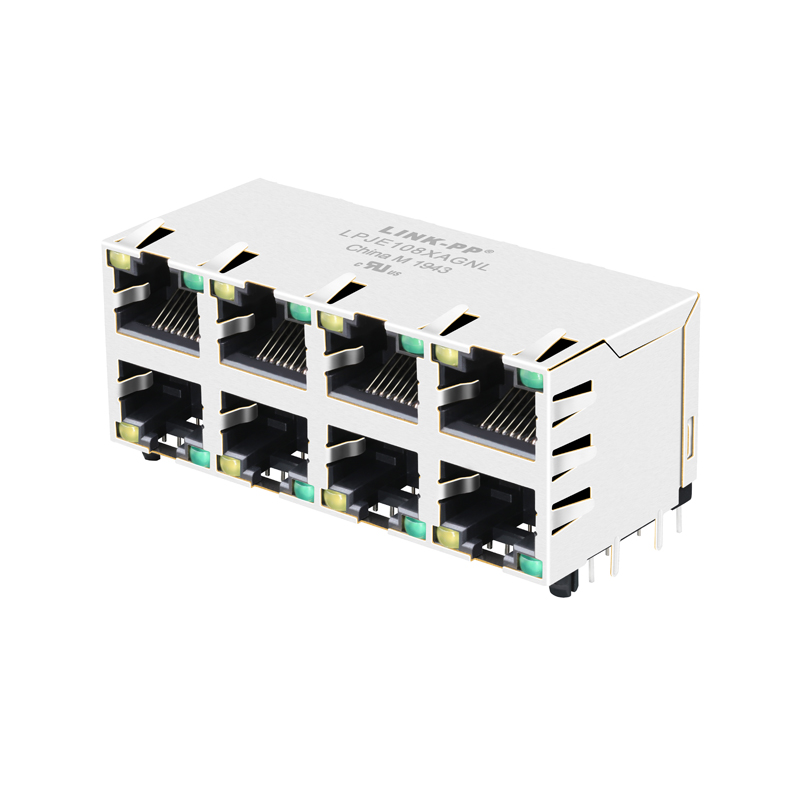

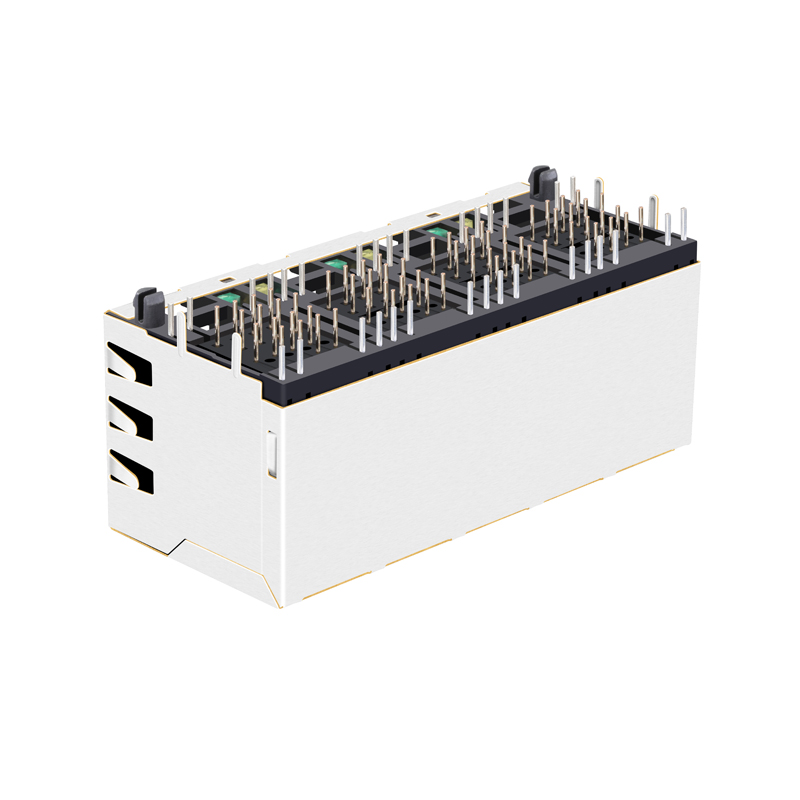

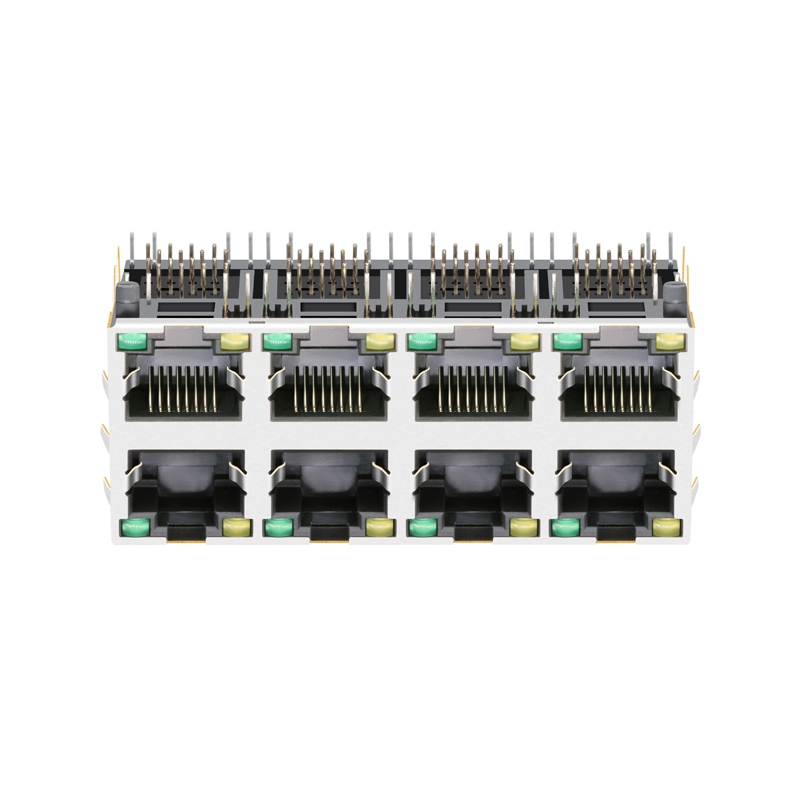

| Item | RJ45 Female Connector |
| Part Number | LPJE108XAGNL |
| Compatible With | RJSNE-5381-08 RJSAE-5385-08 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non PoE) |
| Number of Ports | 2x4 Port |
| Speed | Without Magnetics |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Green |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, our factory is a professional designer and manufacturer specializing in magnetic telecom and networking components. We offer an extensive line of state-of-the-art catalog products as well as custom capabilities to meet specific engineering requirements.
As a global supplier to OEMs, contract manufacturers, and CEMs, we serve over 10,000 customers across 200 countries. With advanced multi-warehouse systems and a commitment to maintaining high inventory levels, we strive to be a world-leading provider of Ethernet RJ45 connectors and LAN transformers.
