| item | Lan Transformer |
| Place of Origin | China |
| Part Number | LP6062ANL |
| Halo Part Number | H6062NL |
| Transformer Type | Lan Transformer |
| Application-Lan | Ethernet(PoE+) |
| Number of Ports | Single Port |
| Speed | 10/100/1000 Base-T |
| Package | Tape & Reel |
| Cores per Port | 8 |
| PIN number | 24 Pin |
| Mounting Type | Surface Mount |
| Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C,S |
A specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

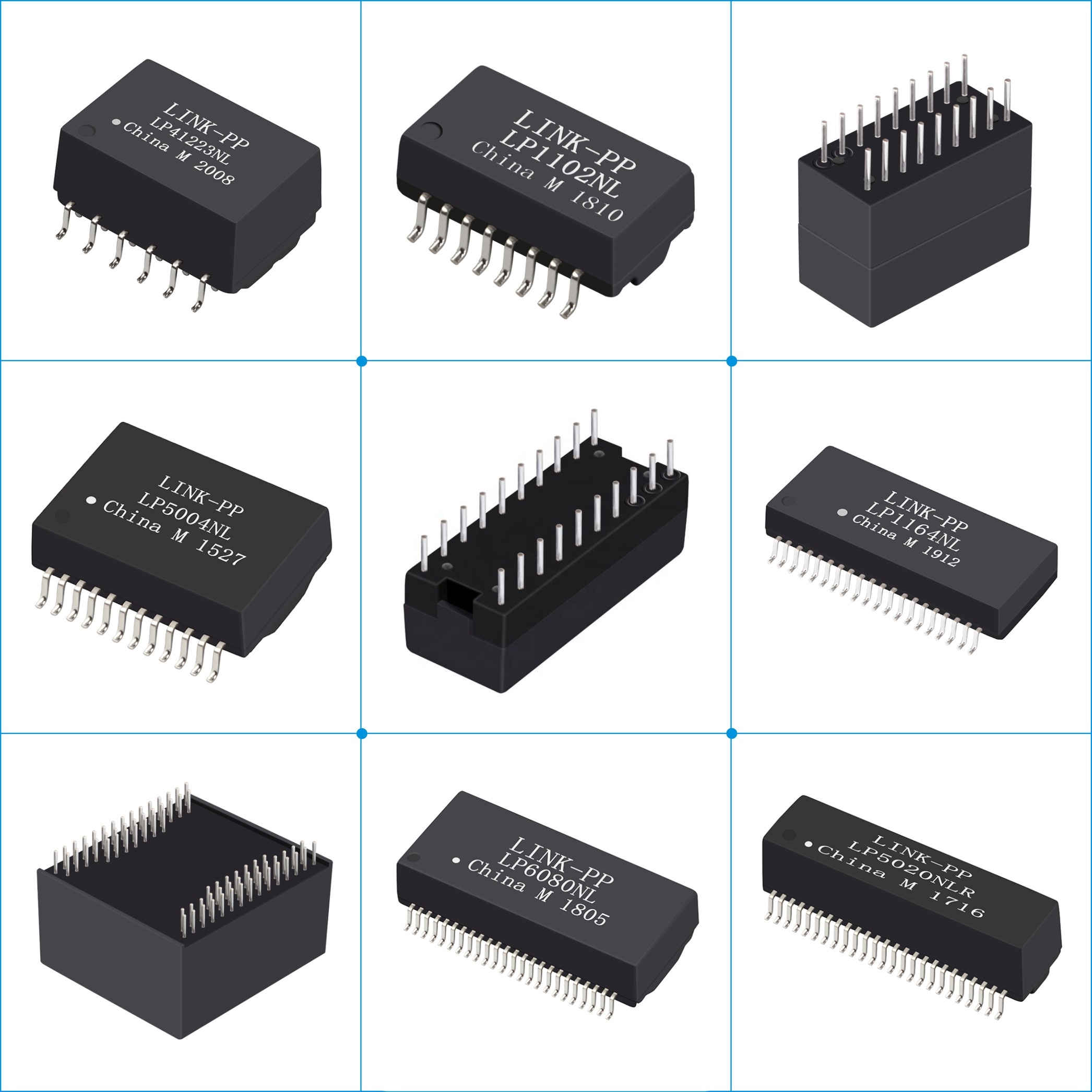

Main Products: 10/100/1000M LAN pulse transformer and filter; RJ45 connector with 10/100/1000M magnetic; T1/E1, T3/DS3/E3/STS-1 interface line transformer; ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.
We have exported our products to more than 30 countries and regions in the world. Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our longterm friend.
