Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
1 / 5
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Send Inquiry

Product Description

Product Description

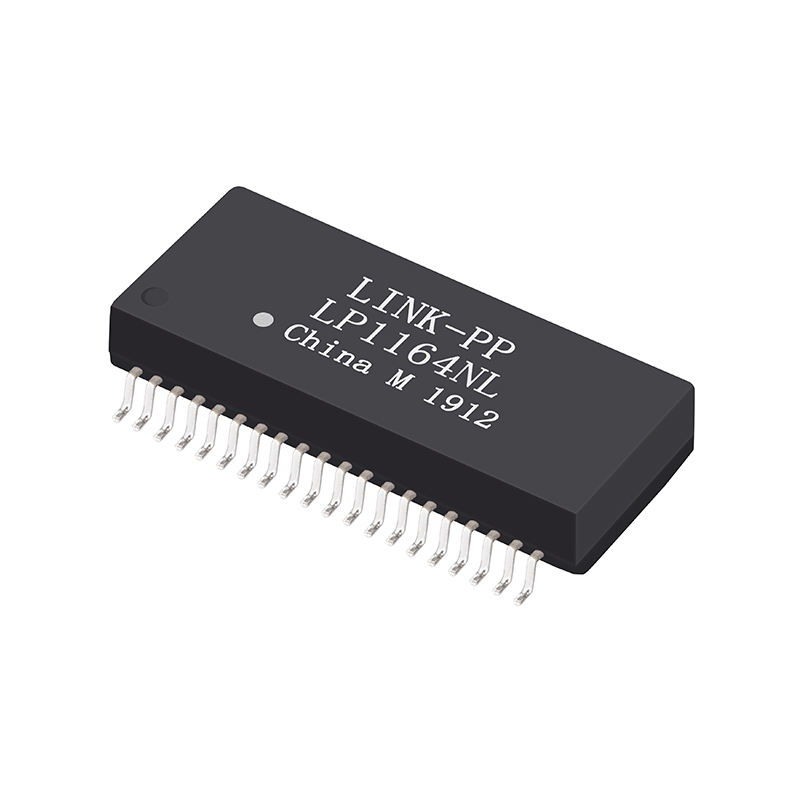

Product Image 1

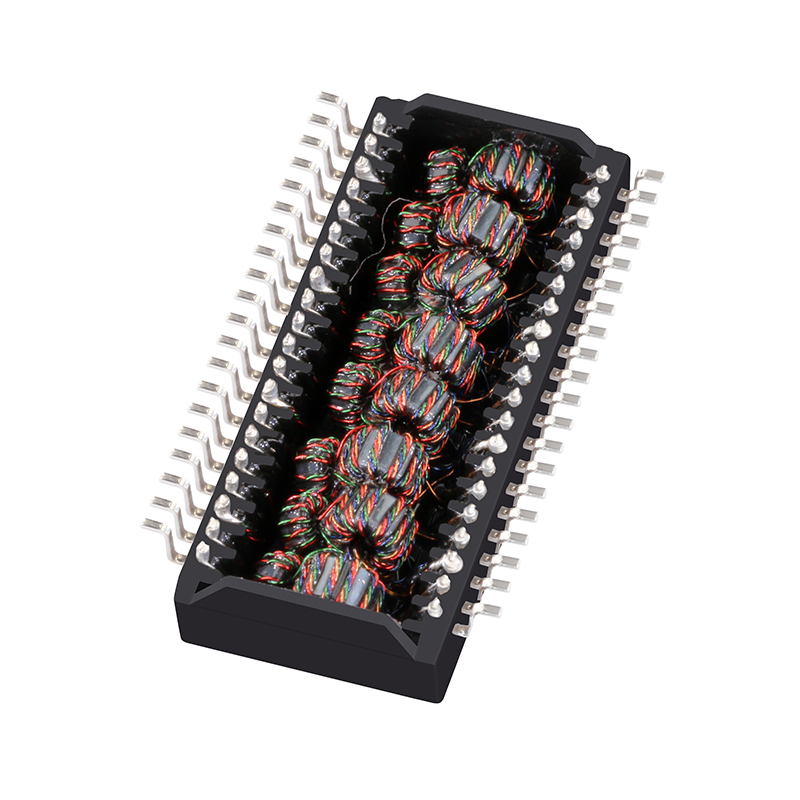

Product Image 2
Specification
itemvalue
Place of OriginChina
Part Number:LP1164NL
Cross Reference:H1164NLT
Transformer TypeLan Transformer
Application-LanEthernet(NoN PoE)
Number of PortsQuad Port
Speed10/100 Base-T
PackageTape & Reel
Cores per Port16
PIN number40
Mounting TypeSurface Mount
Temperature0℃ TO +70℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
Packing & Delivery
Packing Info
The package details:
N.W/pcs: 0.005kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs | Carton size: 36*35.5*23cm | G.W/carton: 7.5kg
Manufacturing & Technical Excellence
The specialized manufacturer of magnetic telecom and networking components is certificated by ISO9001:2000, ROSH, REACH, CE and UL. Facilities include advanced manufacturing and test equipment. Products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.

Main Product Lines:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Frequently Asked Questions
What is the primary application of the LP1164NL transformer?
The LP1164NL is designed for Quad Port 10/100 Base-T Ethernet applications, specifically for non-PoE (Power over Ethernet) environments.
What are the mounting specifications for this component?
This transformer features a Surface Mount (SMD) mounting type with 40 pins, suitable for modern PCB assembly processes.
What is the operating temperature range?
The component is rated for standard operating temperatures ranging from 0℃ to +70℃.
How is the product packaged for shipping?
The units are supplied in Tape & Reel format, with a Standard Package Quantity (SPQ) of 400 pieces per reel and 1600 pieces per carton.
Does this transformer comply with international standards?
Yes, the manufacturing processes are certified under ISO9001:2000, and the products meet ROSH, REACH, CE, and UL standards.
What is the turns ratio for this model?
The LP1164NL features a turns ratio of 1CT:1CT for both receiving (RX) and transmitting (TX) channels.
