2X8 RJ45 Male to Female Connector 1-1840289-2

Product Description

2X8 RJ45 Male to Female Connector 1-1840289-2
RJ45 Connector Overview
📋 Products Description
Item RJ45 Female Connector
Compatible With 1-1840289-2
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x8 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
🔍 Product Showcase

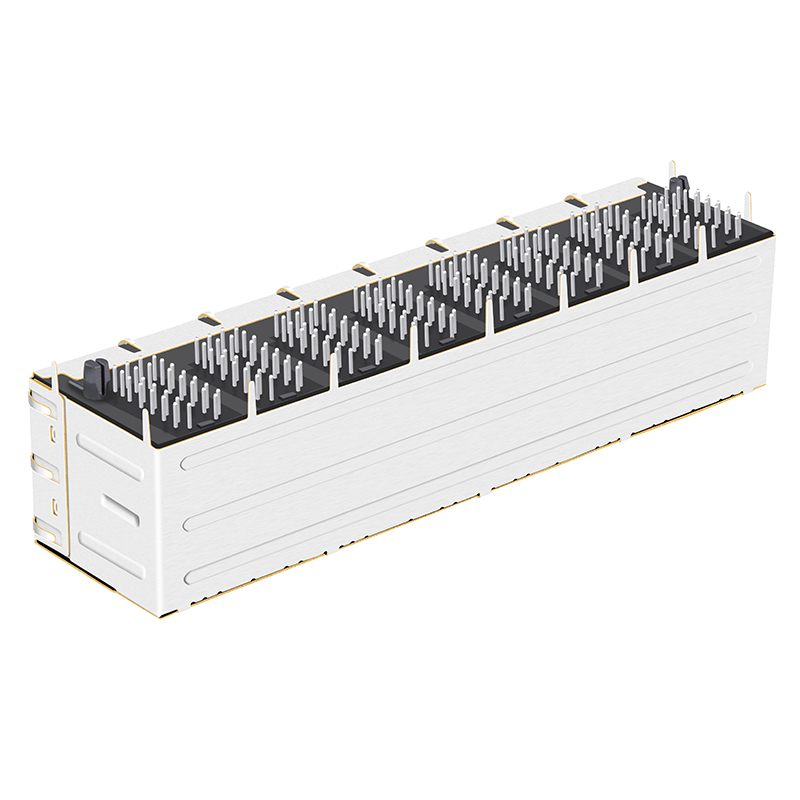

Product Detail 1

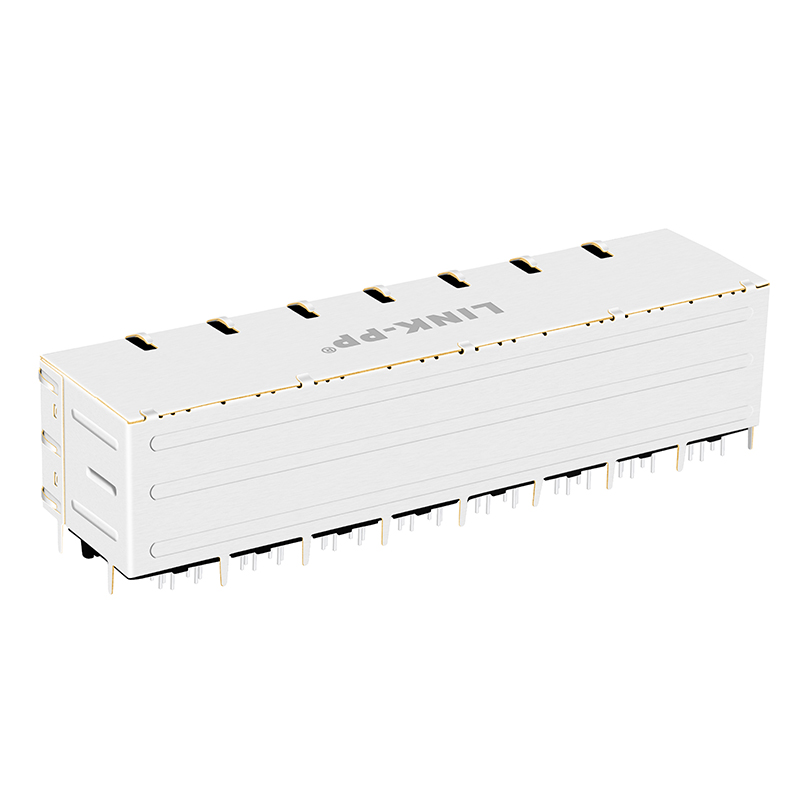

Product Detail 2

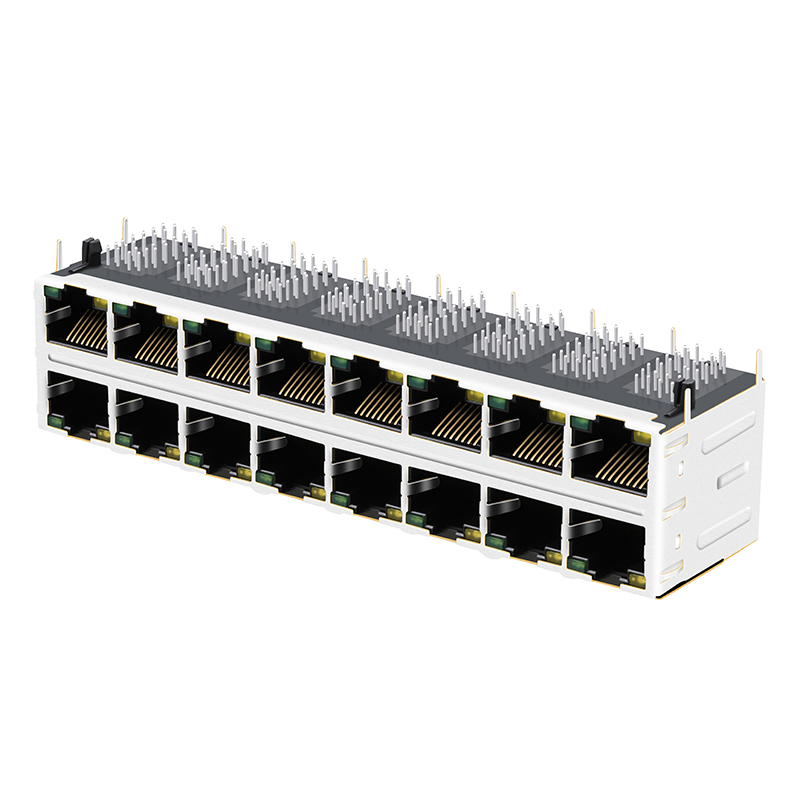

Product Detail 3

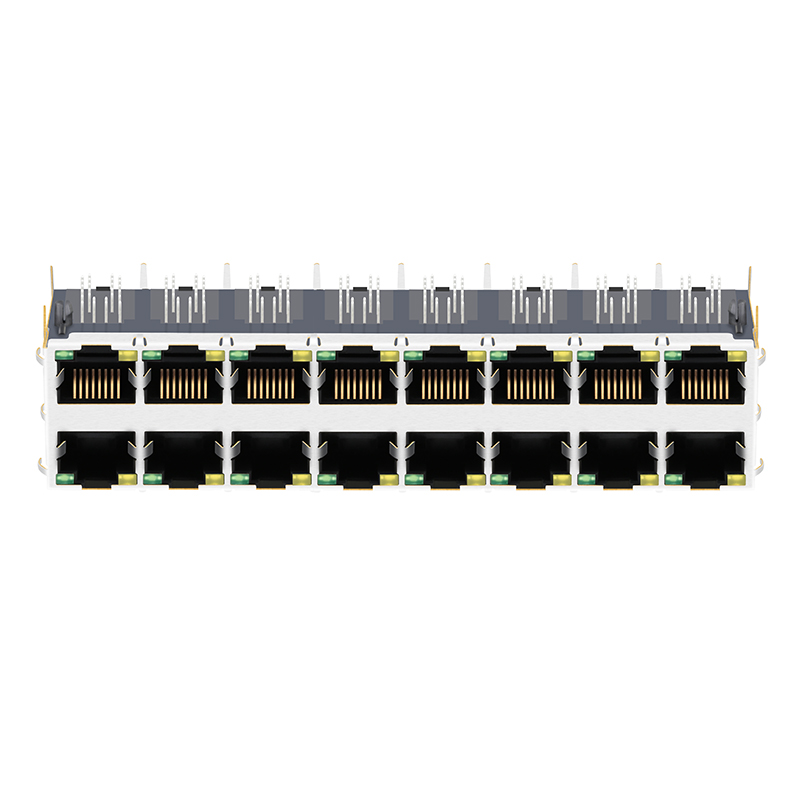

Product Detail 4

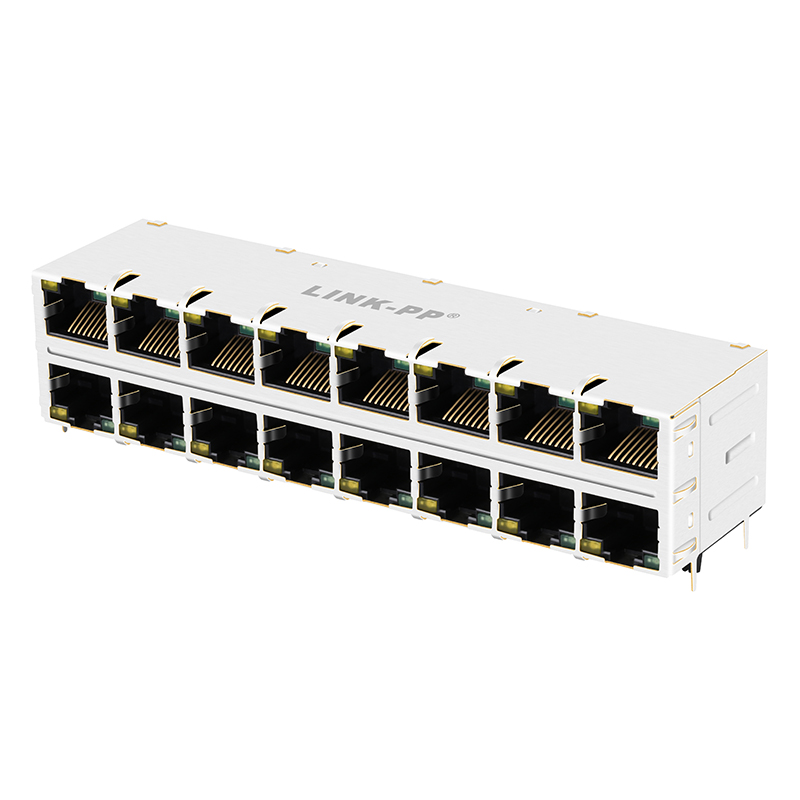

Product Detail 5
⚙️ Production & Quality Control
Quality Control 1
Quality Control 2
Manufacturing 1
Manufacturing 2
🏢 Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider worldwide.
Factory View 1
Factory View 2
Factory View 3
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing, though shipping fees are to be covered by the customer.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-sales service do you provide?
We provide a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your detailed requirements.
What is your core advantage?
With 19 years of professional production experience, we have served as a trusted partner for major industry leaders for many years.
