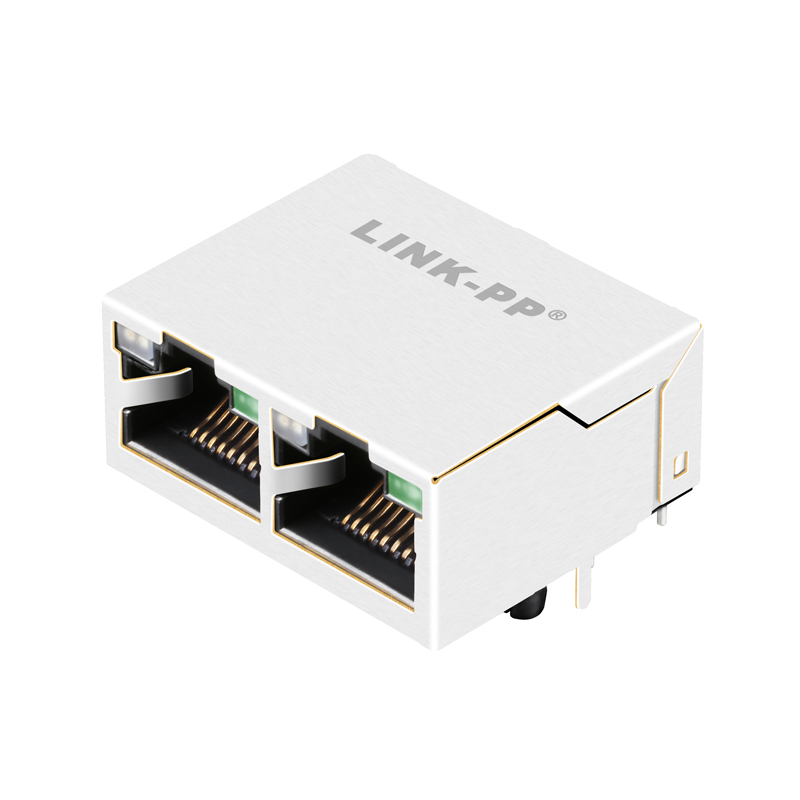

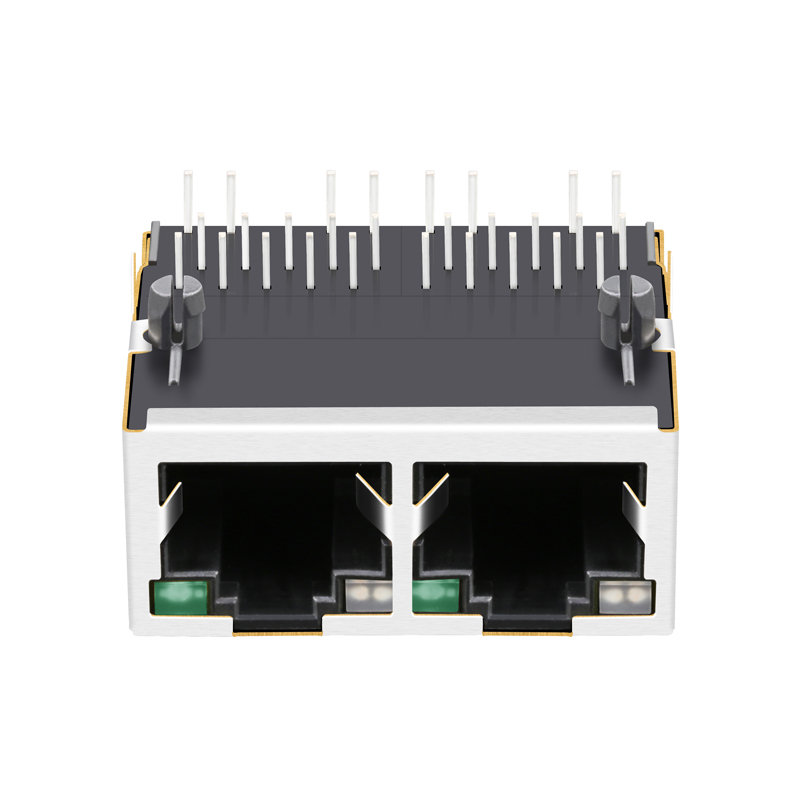

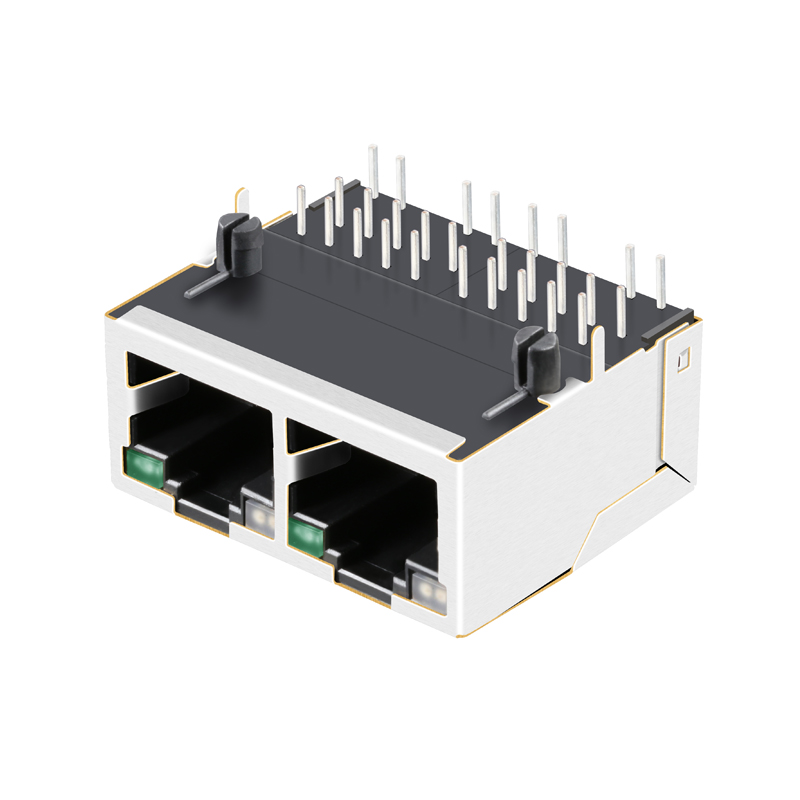

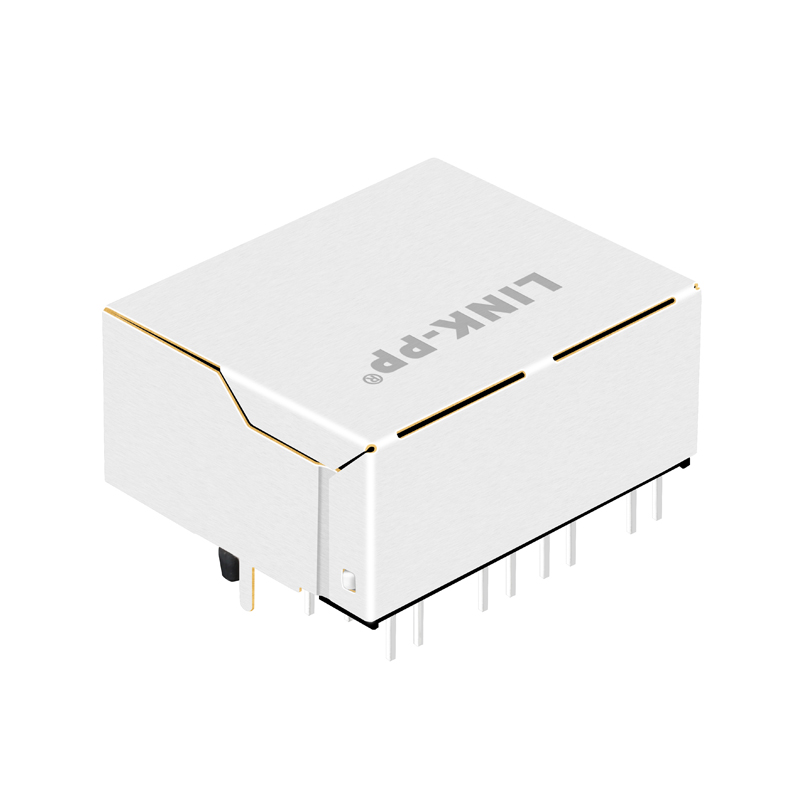

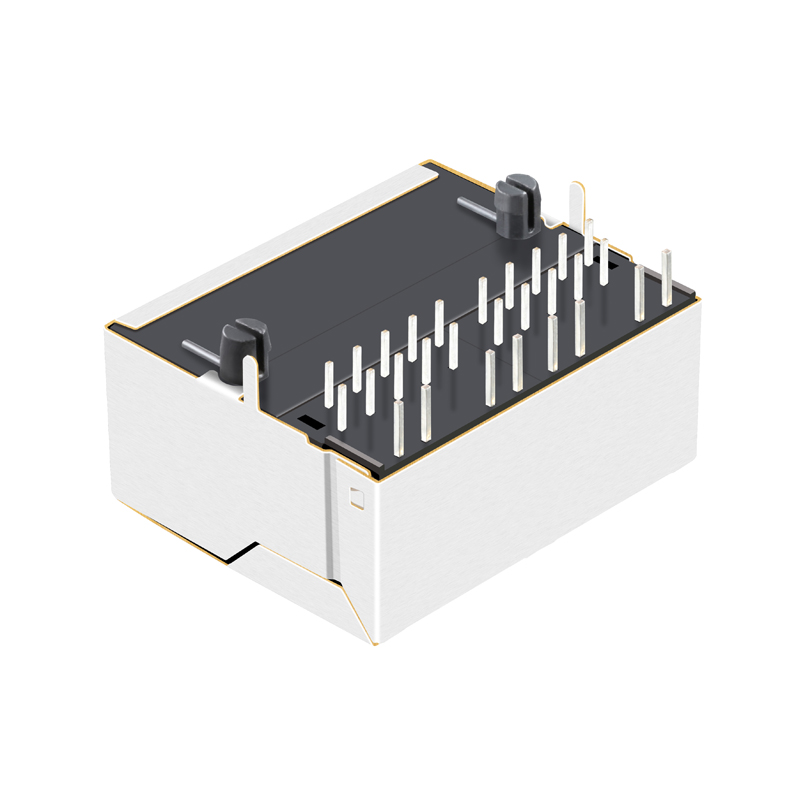

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

1 / 5

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

Send Inquiry

Product Description

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

Part Number	5-6610197-1
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	4
Diodes	NO DIDES41
LED Option	GREEN/YELLOW
Latch	UP
Number of Ports	1X2
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

🛡️ Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

💎 100% Quality Guarantee

Manufactured Under Strict Controls.
100% Tested (Not Just Batch Tested)
OEM Partner for Major Brands for 9 Years
Preferred Supplier of TI, Samsung, Cisco, Siemens, and Intel
6-Year Quality Guarantee

⚡ Price & Service

Highly Competitive Pricing
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Custom Designs Available for Special Requirements
Up to 90% Off Shipping Cost by DHL, UPS, FedEx, or TNT

📈 Corporate Policy

Continuous improvements in quality, delivery, and service.
Quality performance expected from every employee.
Standard is defect-free products and services.

10/100 BASE-T Ethernet Interface RJ45 Female Connector 1

10/100 BASE-T Ethernet Interface RJ45 Female Connector 2

10/100 BASE-T Ethernet Interface RJ45 Female Connector Specifications

10/100 BASE-T Ethernet Interface RJ45 Female Connector Dimensional Layout

• Preferred Supplier of TI, Samsung, Cisco, Siemens, and Intel

• Our connectors are featured on industry standard development boards like the BeagleBone Board.

10/100 BASE-T Ethernet Interface RJ45 Female Connector Testing

10/100 BASE-T Ethernet Interface RJ45 Female Connector Packaging

Frequently Asked Questions (FAQ)

What is the speed rating of this RJ45 connector?

This connector supports 10/100 BASE-T Ethernet interfaces, making it ideal for standard fast Ethernet applications.

What is the operating temperature range for this component?

The connector is designed to operate reliably in temperature environments ranging from 0 to 70°C, and industrial grade options are available for -40 to 85°C.

Are these RJ45 connectors compliant with international environmental standards?

Yes, these connectors comply with RoHS-5 requirements (with lead in solder exemption) and hold REACH certifications.

What kind of quality control testing is performed on these connectors?

We perform 100% individual testing on all units to guarantee functionality and performance, rather than rely on random batch testing.

Do the connectors support PoE or have built-in LEDs?

This model includes built-in Green/Yellow LEDs and is built with a side entry PCB mount angle with a Tab Up latch orientation.

What is the delivery time and sample availability?

Standard delivery time is 2-3 weeks after order confirmation. Free product samples are available upon request for qualification purposes.
