100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
1 / 5
100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
100 Base-T Single Port Through Hole Magnetics Transformer BD16A01

100 Base-T Single Port Through Hole Magnetics Transformer BD16A01

Send Inquiry

Product Description

Transformer Category

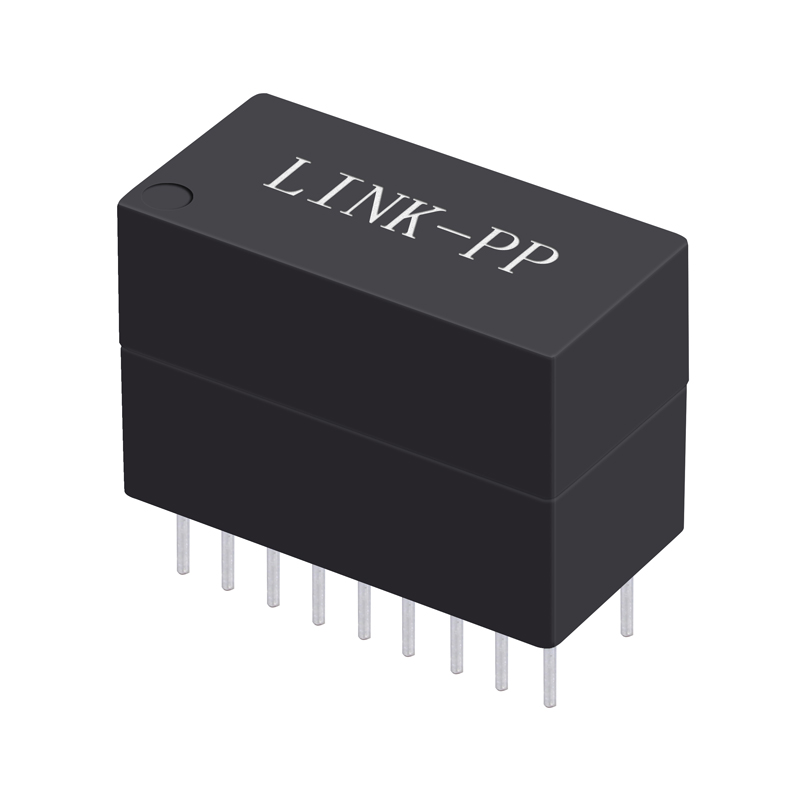

100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
Products Description
ItemLan Transformer
Replaceable Brand ModelBD16A01
Part StatusActive
ConstructionOpen Frame
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non PoE)
Number of Ports1 Port
Speed100 Base-T
Cores per Port4
Pin Number12 Pin
Mounting TypeDip
Temperature0℃ TO 70℃
AutoMDXYES
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
PackageTape & Reel
Why Choose Us
Company Profile
A specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion regarding your requirements.
What is your advantage?
We have 19 years of production experience and have been a trusted partner for major industry leaders for many years.
