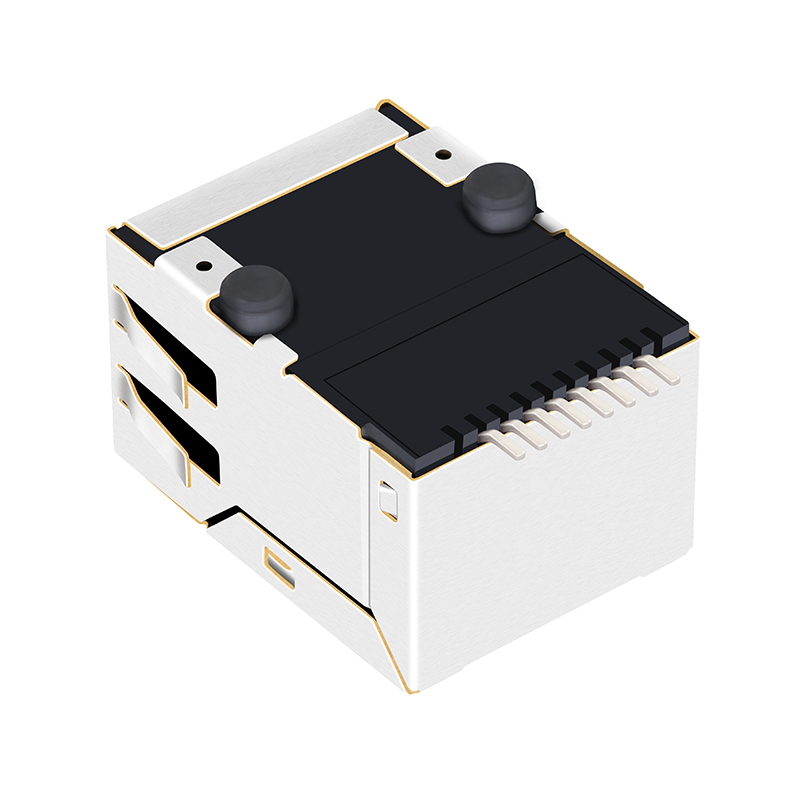

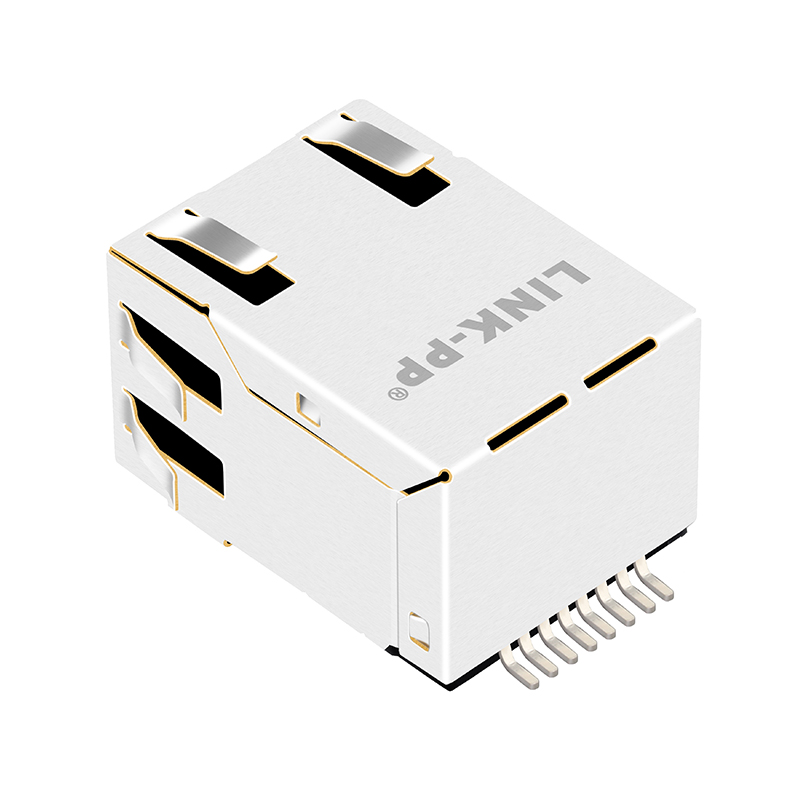

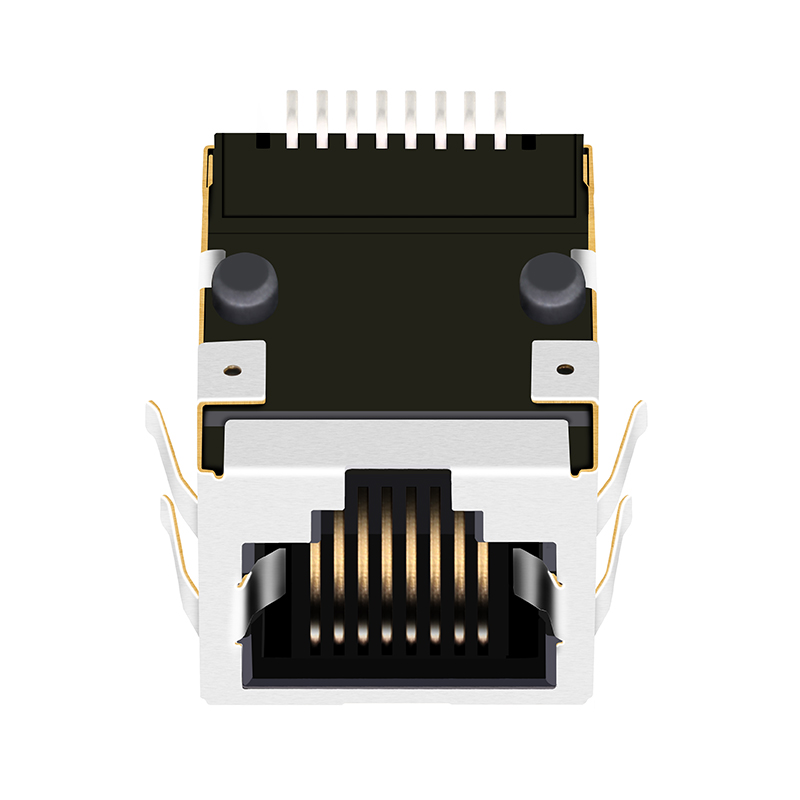

xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
1 / 5
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector

xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector

Send Inquiry

Product Description

RJ45 Series

✓ xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector

⚙ Products Description
ItemRJ45 Female Connector
Part Numberxmh-trjk2064aonl
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C

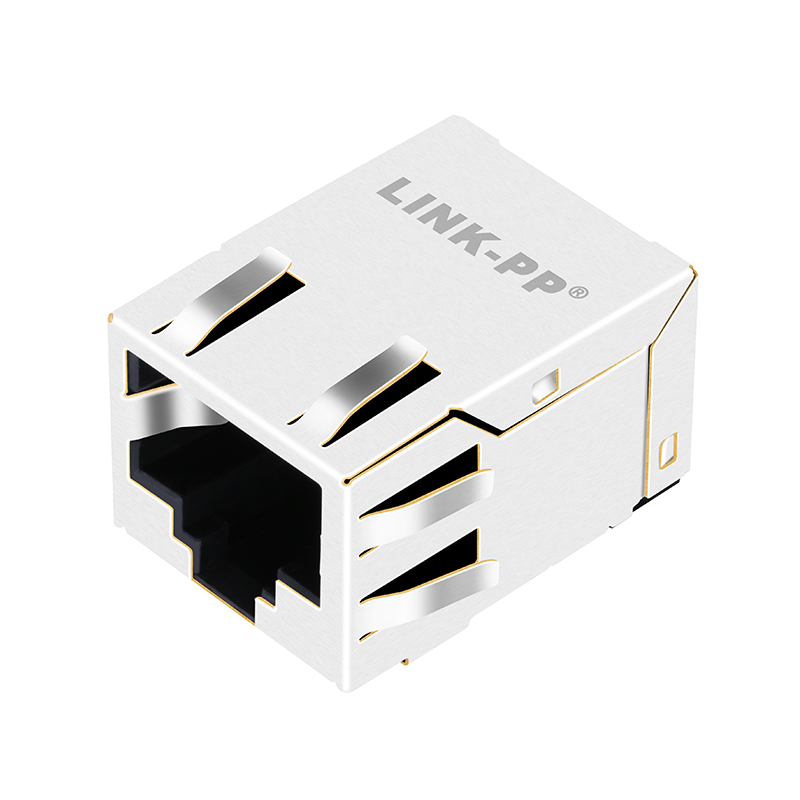

RJ45 Detail 1

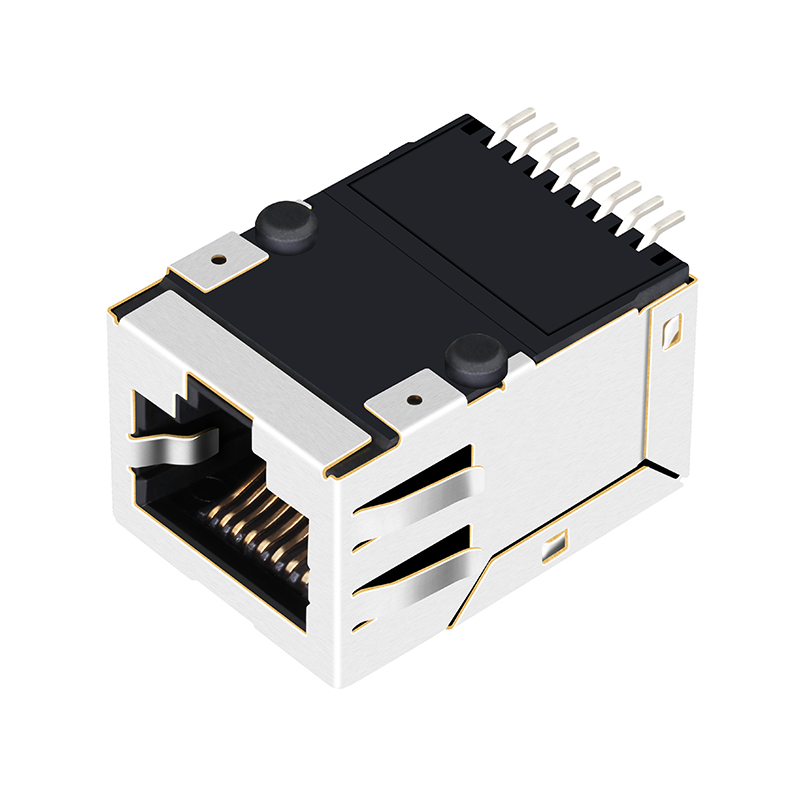

RJ45 Detail 2
Product Angle 1
Product Angle 2
Product Angle 3
Product Range
📊 Technical Specifications & Drawings
Drawing 1 Drawing 2 Drawing 3 Drawing 4 Drawing 5 Drawing 6
📜 Certifications
Certificate 1
Certificate 2
? Frequently Asked Questions
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer free samples to test the quality, though the shipping fee should be covered by the customer.
3. What is your delivery time?
Stock items are ready to ship immediately. For mass production, the typical lead time is 15-30 days.
4. What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
5. Do you accept OEM/ODM orders?
Yes, we accept both OEM and ODM orders. Please contact us to discuss your specific requirements in detail.
6. What are your core advantages?
With 19 years of production experience, we have established long-term partnerships with major industry players and global electronic leaders.
