Product Specification

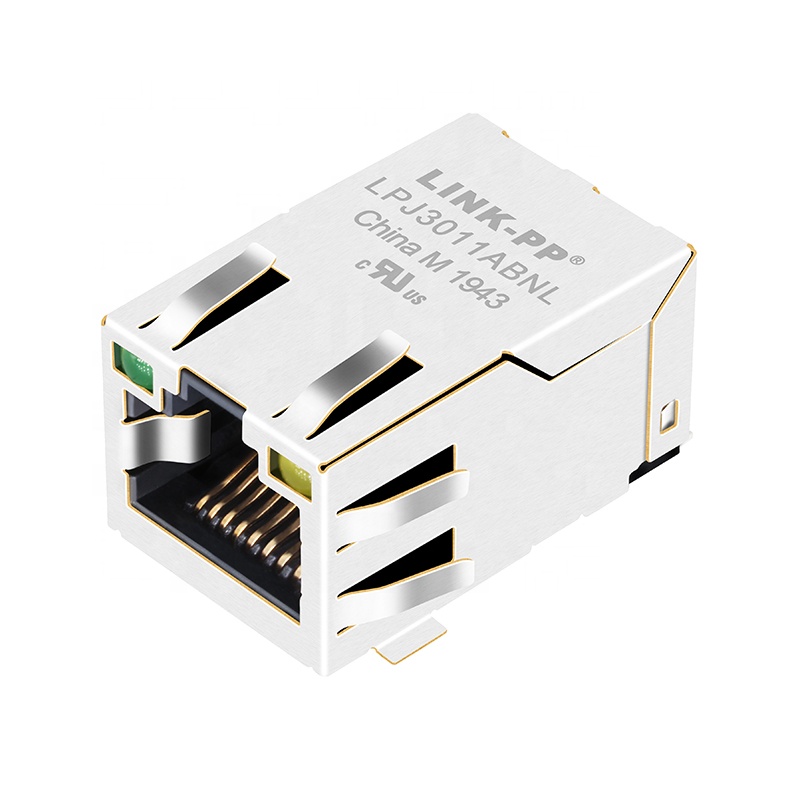

7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
| Item | RJ45 Female Connector |
| Part Number | LPJ3011ABNL |
| Equivalent Part | 7498010210A |
| Part Status | Active |
| Connector Type | Jack |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch Direction | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| Retaining Post | T POST |
| Temperature Range | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
Product Detailed Views
🔍
Comprehensive Product Range
Explore our diverse catalog including Low Profile RJ45, SMT Connectors, Vertical Jacks, and Multi-port configurations.
Manufacturing Excellence
About The Manufacturer
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier to OEMs, contract manufacturers, and CEMs, supporting over 10,000+ customers across 200 countries. We are committed to becoming a world leader in Ethernet RJ45 connectors and LAN transformer technology.
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I obtain samples before placing a bulk order?
Yes, we provide free samples for quality testing purposes. Shipping costs are typically covered by the customer.
What is the standard delivery lead time?
Stock items are ready for immediate shipment. For mass production, the typical lead time is between 15 to 30 days.
What kind of after-sales support do you provide?
We offer a one-year guarantee period and provide 24-hour online technical support to assist with any queries.
Do you accept OEM or ODM requirements?
Yes, we welcome OEM and ODM orders. Please contact our technical team for a detailed discussion regarding your specifications.
What are your core advantages?
With over 19 years of specialized production experience, we have established long-term partnerships with leading global technology firms.
