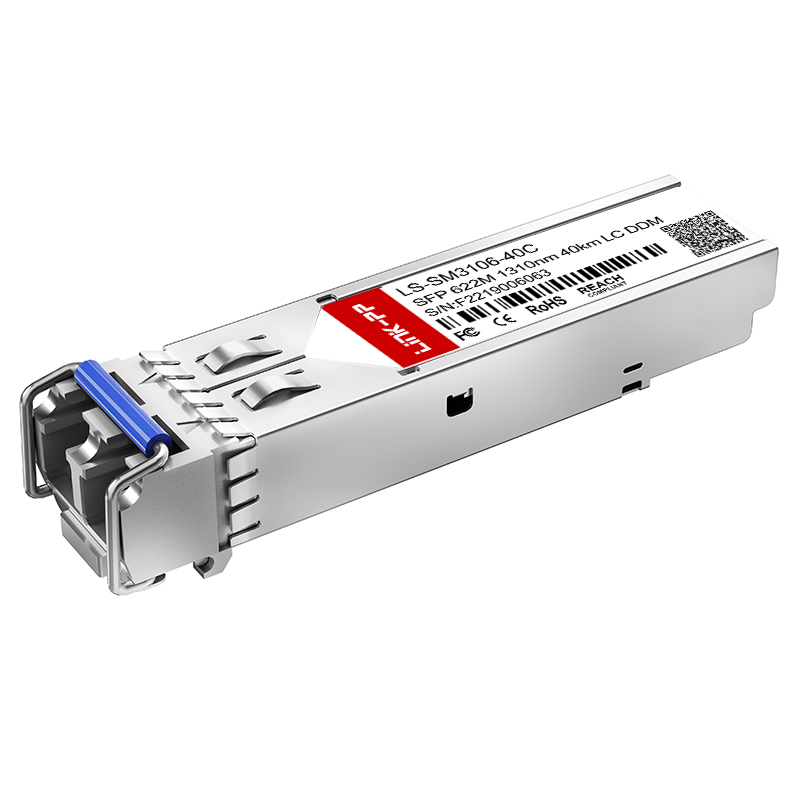

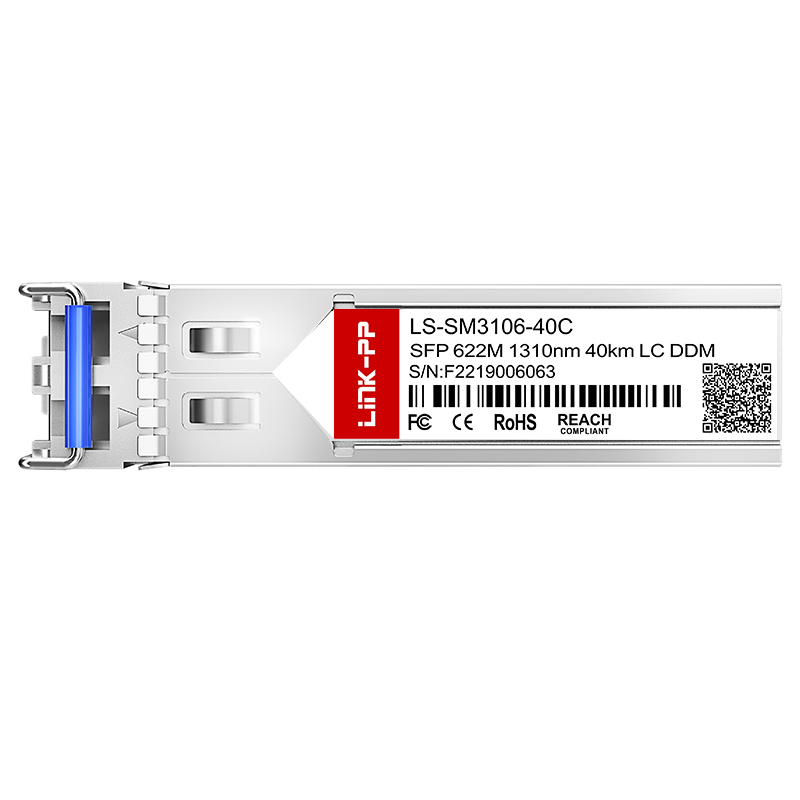

| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 40km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| EMC Supported | Yes |
| DDM/DOM Supported | Yes |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
End-to-end DWDM device solutions covering almost all optical components - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
Providing high reliability and performance products with mature laser and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for various 4G/5G system scenarios.
Total solutions for FTTx optical fiber access, covering all-optical or optical copper combined access solutions and products for global communication network constructors.
Ensuring normal operation of communication lines with optical cable O&M solutions that integrate optical line protection systems (OLP) and optical line monitoring systems (OLM).
A specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Equipped with advanced manufacturing and testing equipment. Established in 1997 with a large production capacity of 3000K per month, ensuring short delivery times. Provides a complete series of optical modules for fixed access, wireless access, carrier Ethernet, and cloud computing networks worldwide.
