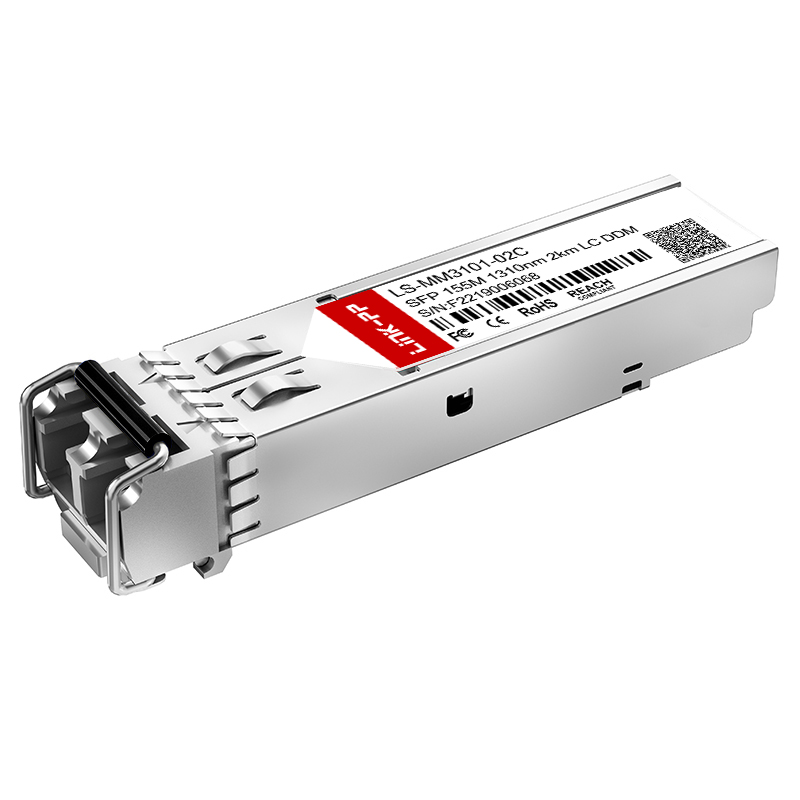

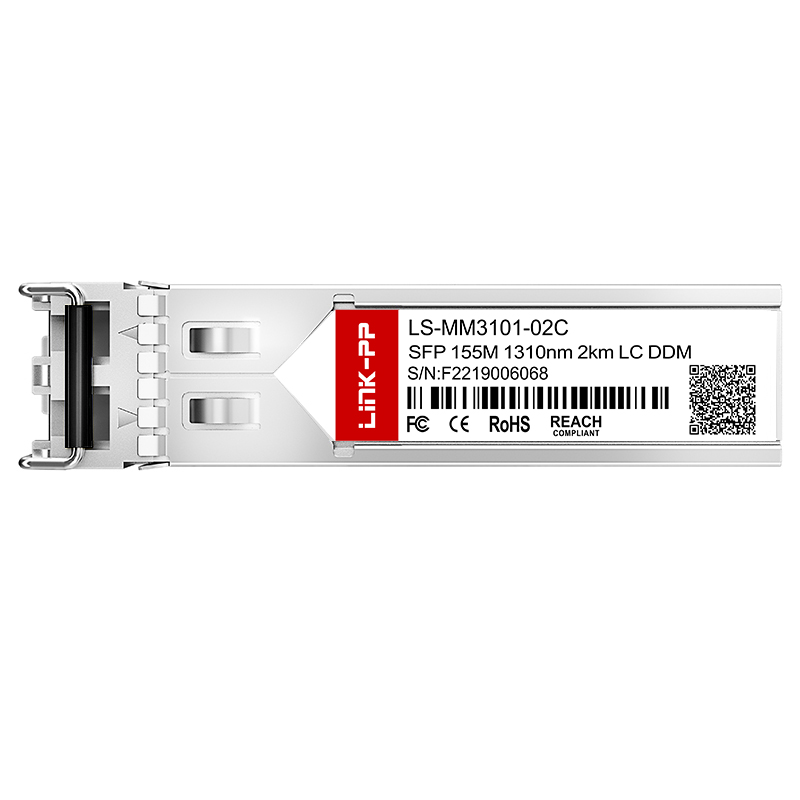

Hirschmann SFP-FAST-MM/LC-EEC Compatible MMF 1310nm 155M SFP Module 2km Multimode LC Optical Transceiver

Product Description

VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Solutions
🌐
Optical Transport Networks
We provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
☁️
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
📶
Wireless
High reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
🏠
FTTx
For global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
⚙️
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Technical Specifications
Hirschmann SFP-FAST-MM/LC-EEC Compatible MMF 1310nm 155M SFP Module 2km Multimode LC Optical Transceiver
Part No.LS-MM3101-02C
Form FactorSFP
Max Data Rate155Mbps
Wavelength1310nm
Max Cable Distance2km
ConnectorDuplex LC
MediaMMF
Transmitter TypeFP
Receiver TypePIN
TX Power-15 ~ -8dBm
Receiver Sensitivity< -32dBm
EMC SupportedYes
DDM/DOMSupported
ProtocolsIEEE802.3U, GR-468, MSA Compliant
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
SFP Modules
SFP Cage
100M (155M) SFP Ordering Information
LS-MM8501-S5CSFP 155M, 850nm, 550m, LC, DDM, 0-70℃ / -40-85℃
LS-MM8501-02CSFP 155M, 850nm, 2km, LC, DDM, 0-70℃ / -40-85℃
LS-MM3101-02CSFP 155M, 1310nm, 2km, LC, DDM, 0-70℃ / -40-85℃
LS-SM3101-10CSFP 155M, 1310nm, 10km, LC, DDM, 0-70℃ / -40-85℃
LS-SM3101-40CSFP 155M, 1310nm, 40km, LC, DDM, 0-70℃ / -40-85℃
LS-SM5501-80CSFP 155M, 1550nm, 80km, LC, DDM, 0-70℃ / -40-85℃
Why Choose Us
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing equipment and testing facilities, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, and data communication networks. Our production capacity ensures delivery within a short time using the latest optoelectronic technologies.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I obtain samples for quality testing?
Yes, we provide free samples to test quality, with the customer covering the shipping costs.
What is the standard delivery time for orders?
Stock items are ready to ship immediately. For mass production, the typical lead time is 15 to 30 days.
What kind of warranty and after-sales service do you offer?
We offer a 5-year warranty on our optical transceivers and provide 24-hour online technical support.
Do you accept OEM or ODM orders?
Yes, we accept both OEM and ODM orders. Please contact us to discuss your specific requirements.
What are the certifications of your products?
Our products and facilities are certified by ISO9001:2000, ROSH, REACH, CE, and UL, ensuring international quality standards.
