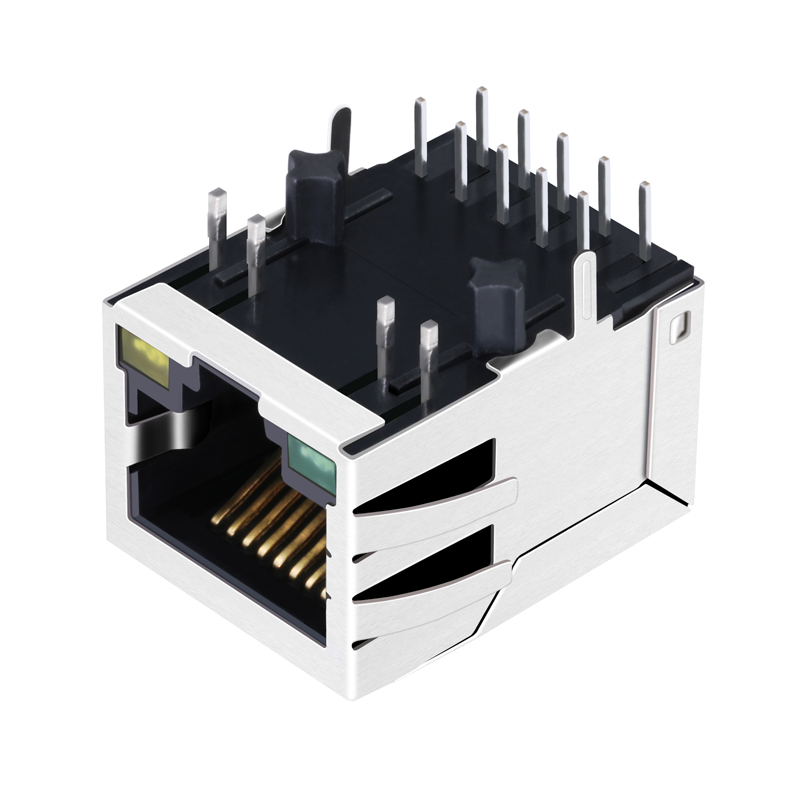

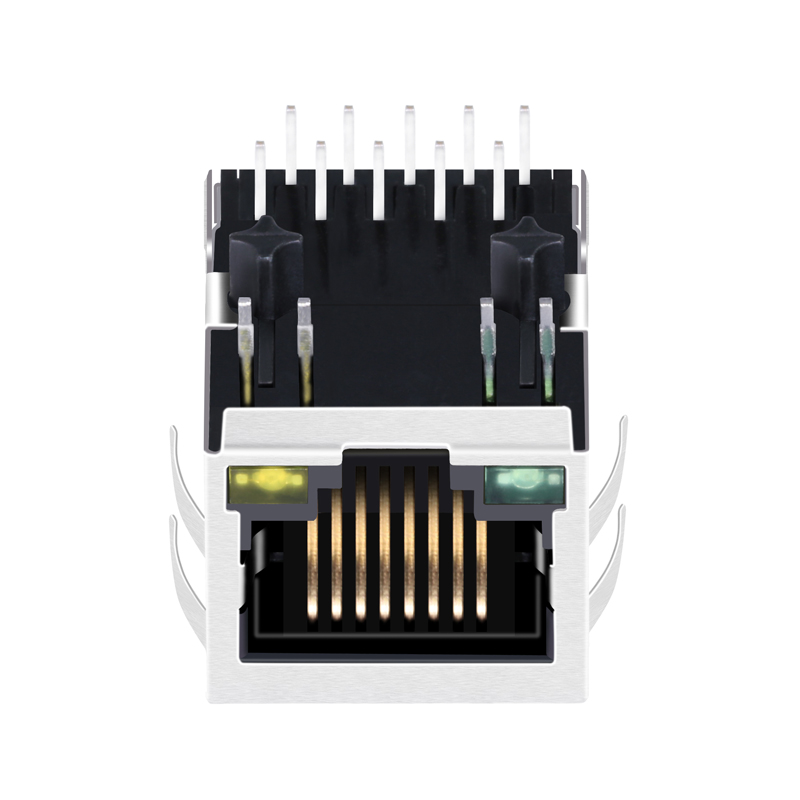

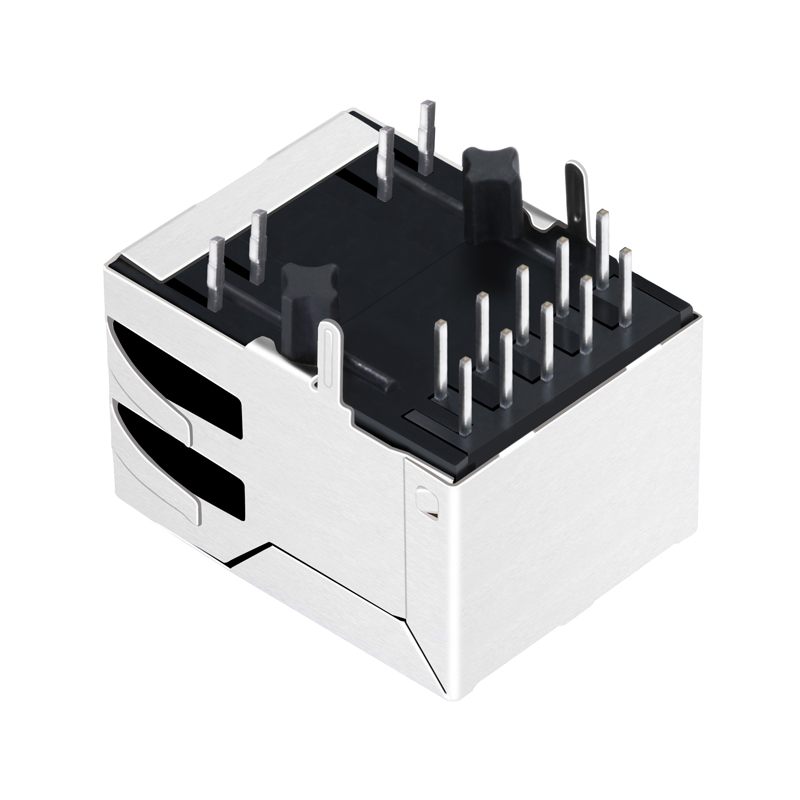

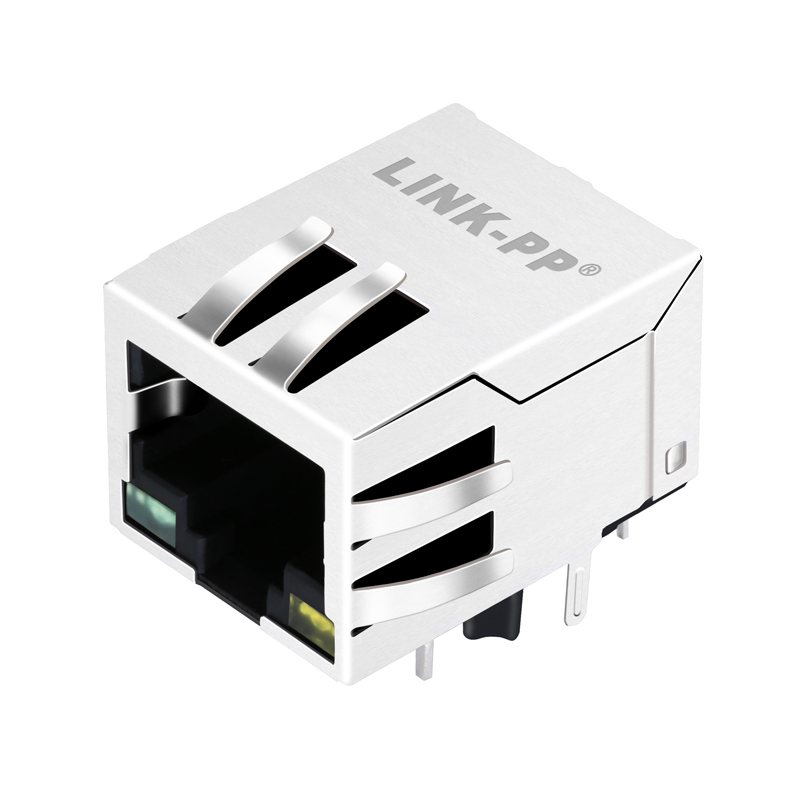

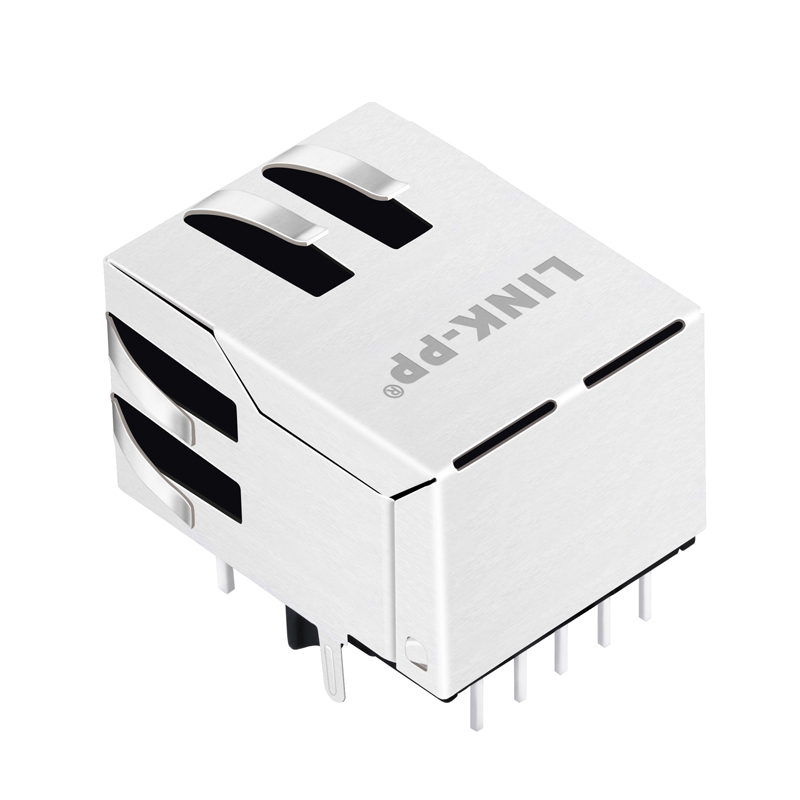

| Part Number |
ARJ11E-MCSS |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIDES41 |
| LED Option |
GREEN/RED |
| Latch |
UP |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
• LINK-PP Is The Preferred Supplier Of TI Samsung Cisco Siemens …
Welcome To Visit The TI Website://www.ti.com/tool/beaglebk#0
You Will Look At Our Logo “LINK-PP” On BeagleBone Board
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- LINK-PP Is OEM Of TE (Tyco) For 9 Years
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
- LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
LINK-PP Corporate Policy
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- LINK-PP Is Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
Frequently Asked Questions (FAQ)
What are the speed capabilities of these RJ45 connectors?
These connectors support speeds up to 1000 BASE-T (Gigabit Ethernet) for high-performance networking transmissions.
What certifications do these RJ45 connectors hold?
Our products meet several standards including ISO 9001:2008, UL Certification, Reach Certification, and RoHS Compliance.
What is the operating temperature range for these parts?
The supported operating temperature ranges from 0 to 70°C up to -40 to 85°C depending on the application environment.
Are the products batch-tested or individually tested?
We maintain 100% testing on our units under strict quality control policies, ensuring no product is only batch-tested.
What options are available for the LED configuration?
The LED indicators come with Green/Red configuration options to match specific design requirements.
Can I get custom designs or free samples?
Yes, free samples are available and new customized designs can be provided based on your exact customer requirements.
