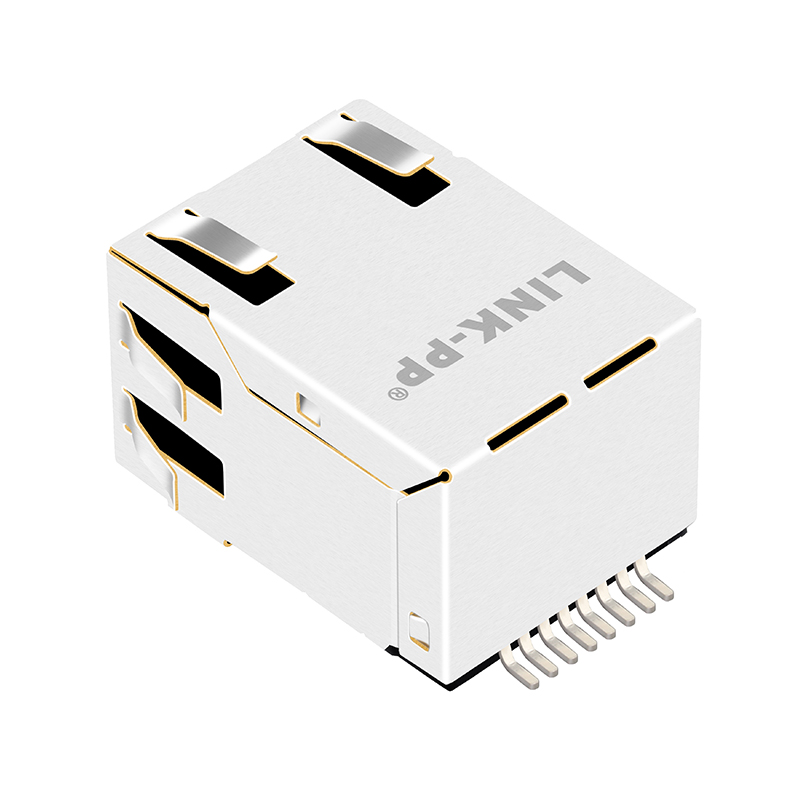

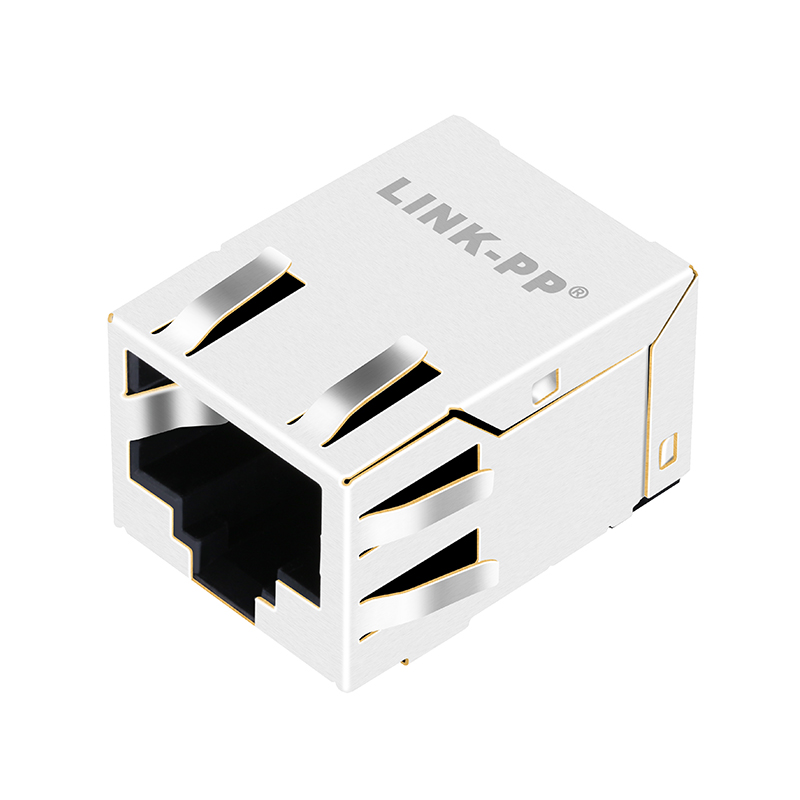

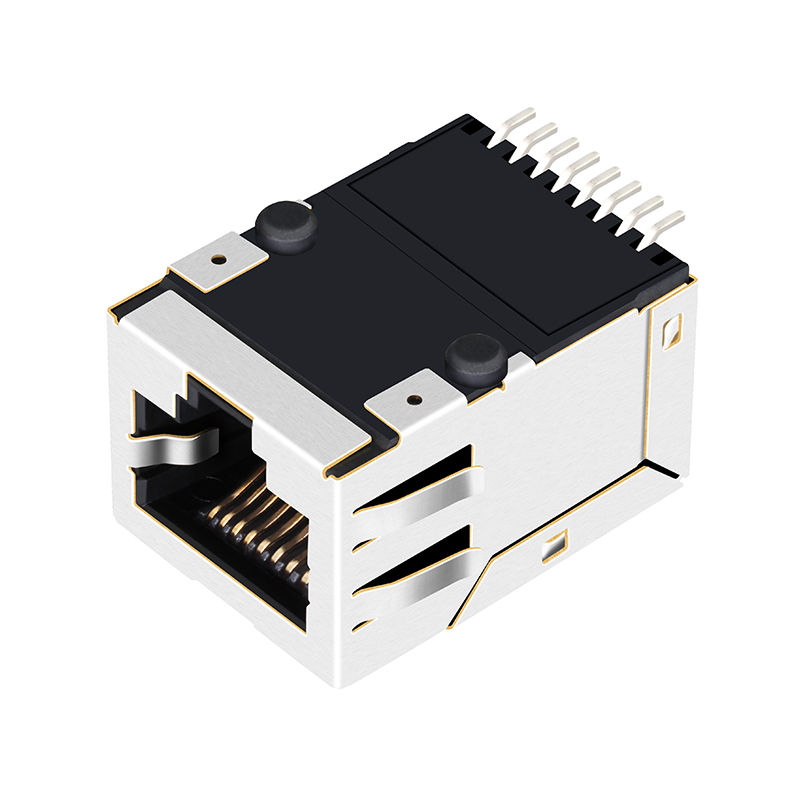

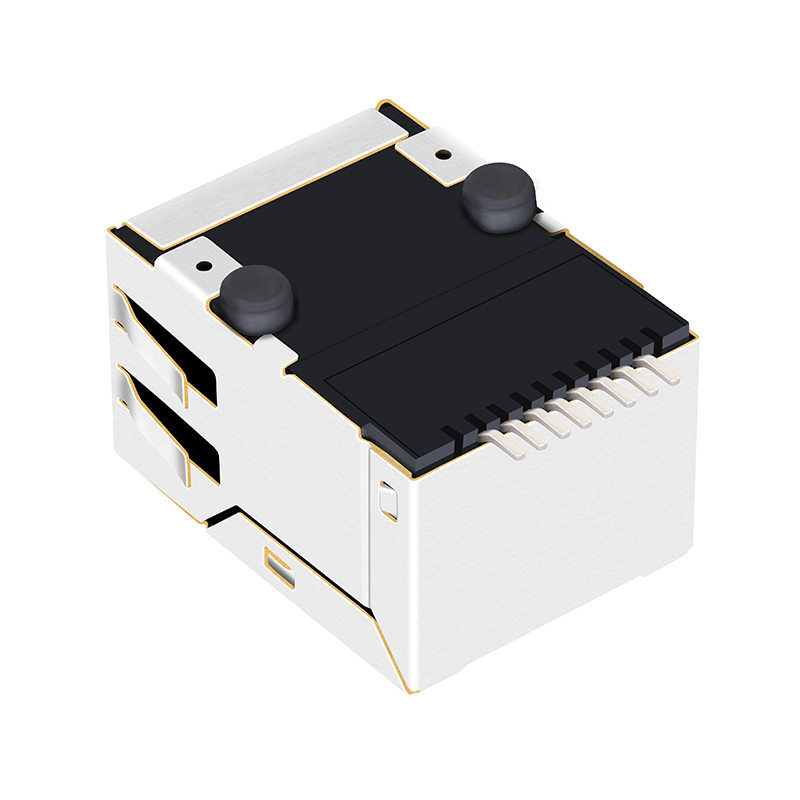

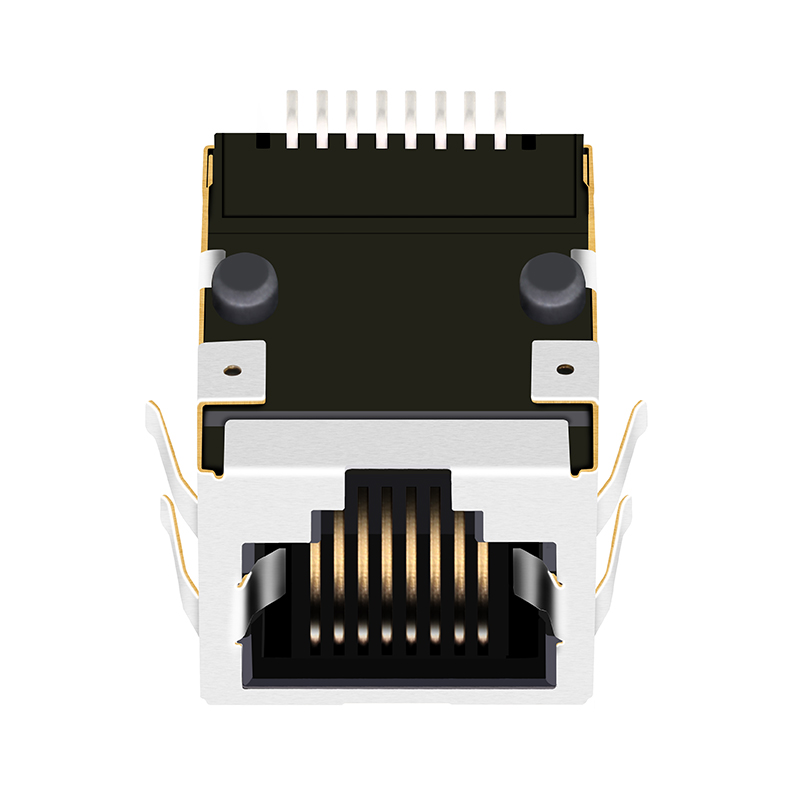

Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109

Send Inquiry

Product Description

Low Profile RJ45 Connector 8P8C SMT Top Entry Modular Jack 0855135109

Technical Specifications

Part Number	0855135109
Application-LAN	ETHERNET (NON POE)
Speed	10/100/1000 BASE-T
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
LED Option	WITH LEDS / WITHOUT LEDS
Latch	UP/DOWN
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
Pin Type	THT SOLDER
RoHS Compliant	YES (RoHS-5 WITH LEAD IN SOLDER EXEMPTION)
Temperature	0 TO 70°C / -40 TO 85°C

Key Advantages

Professional Certification

ISO 9001:2008
UL Certification
REACH Certification
RoHS Compliance
Active Environmental Policy

100% Quality Assurance

Manufactured Under Strict Controls
100% Fully Tested (Not Just Batch Tested)
OEM Services for Leading Global Brands
6-Year Quality Guarantee

Service & Delivery

Competitive Pricing Advantage
Delivery Time: 2-3 Weeks After Order
Free Samples Available
New Design Support for Custom Requirements

Industry Recognition

Preferred Supplier for industry leaders including Texas Instruments, Samsung, Cisco, Siemens, and Intel.

Our components are featured on high-performance development platforms such as the BeagleBone Board.

Frequently Asked Questions (FAQ)

1. What is the maximum data speed supported by the 0855135109 connector? This connector supports Gigabit Ethernet speeds, including 10/100/1000 BASE-T.

2. Can this modular jack be used in outdoor or harsh environments? Yes, it is available in an industrial temperature range from -40 TO 85°C, making it suitable for varying environmental conditions.

3. Does this RJ45 connector support Power over Ethernet (PoE)? According to the specifications, this specific model is designed for ETHERNET (NON POE) applications.

4. What are the plating options for the contact mating area? The contact area can be plated with Gold at thickness levels of 6u", 15u", or 30u" depending on your requirements.

5. Is this product compliant with international environmental standards? Yes, it is RoHS compliant and meets REACH certification standards to ensure environmental safety.

6. What is the mounting configuration for the PCB? This is a Low Profile SMT (Surface Mount Technology) connector with a side entry mount angle and THT solder pin type.
