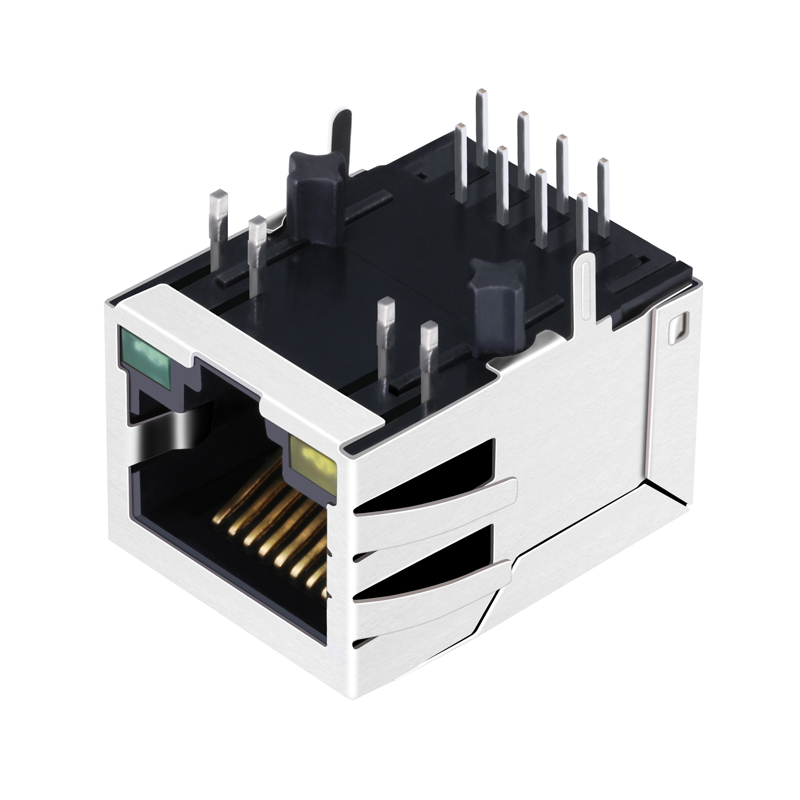

Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
1 / 5
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11

Female RJ45 for Internet Modular Plug TIC-L003-11

Send Inquiry

Product Description

Banner
Female RJ45 for Internet Modular Plug TIC-L003-11

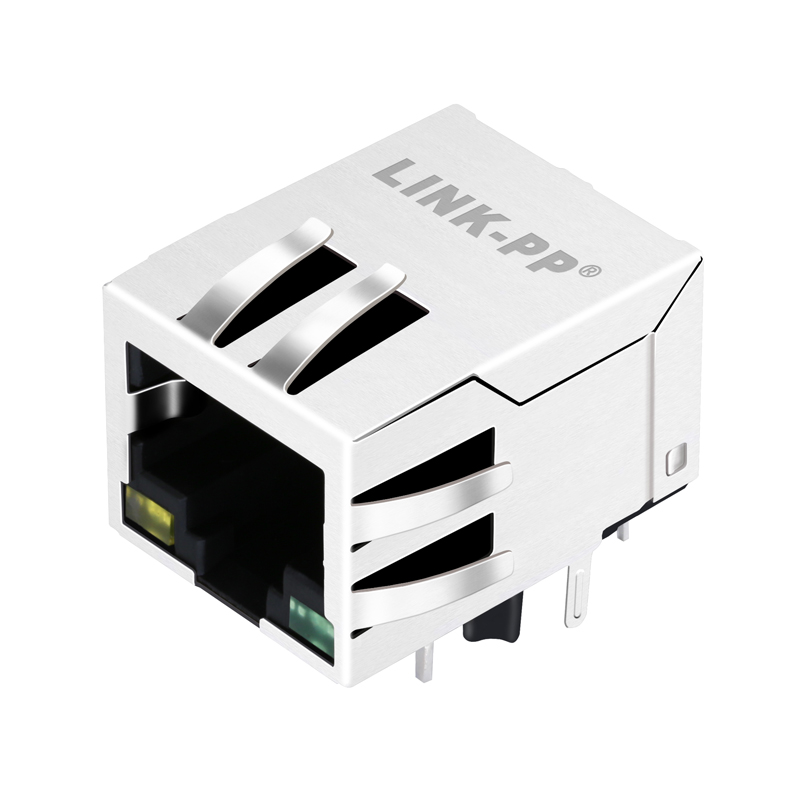

Product Image
Specs Title
Part NumberTIC-L003-11
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores Per Port4
DiodesNO DIODES
LED OptionWithOUT LEDS
LatchDOWN
Number of Ports1X1
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 With LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWith OR WithOUT
Speed10/100 BASE-T
Temperature0 TO 70°C/-40 TO 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Why Choose Us

Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Cetitifaction
  • RoHS Compliance
  • Active Environmental Policy

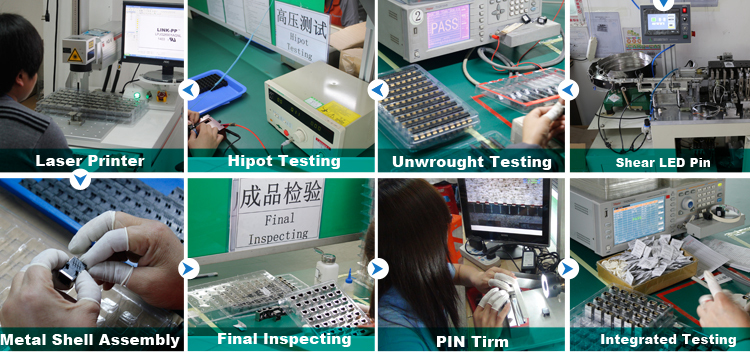

100% Guarantee Quality
  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • OEM Partner for Top Brands for 9 Years
  • Preferred Supplier of TI, Samsung, Cisco, Siemens, and Intel
  • Quality Guarantee: 6 Years
Competitive Price And Service
  • More Competitive Price Than Market Alternatives
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Are Available
  • Provide New Design For Customer Requirements
  • 90% Off Shipping Cost By Global Couriers
Corporate Policy
  • Highest Level Of Customer Satisfaction
  • Continuous Improvements In Quality & Service
  • Quality Performance From Every Employee
  • Standard Is Defect-Free Products
Technical Drawings & Dimensions
Drawing 1 Drawing 2
Technical Specs
PCB Layout

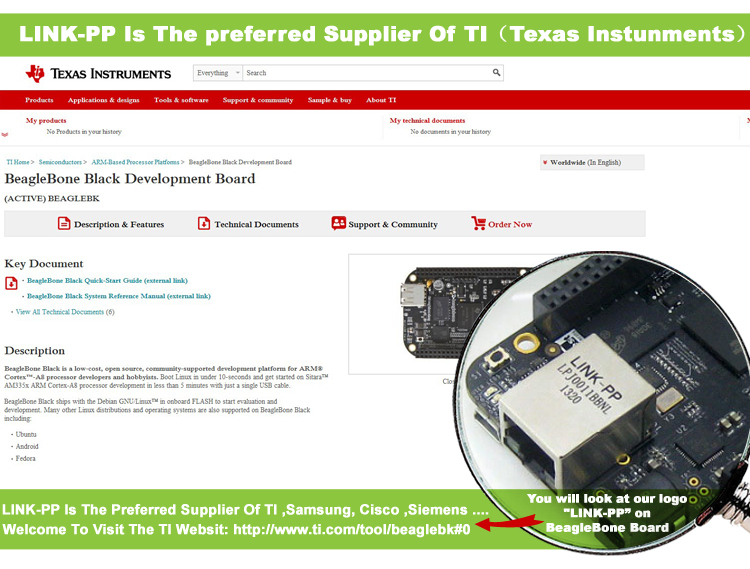

• Preferred Supplier Of TI Samsung Cisco Siemens …

• You Will Look At Our Logo On BeagleBone Board

Certification Line
Product View 1 Product View 2
Frequently Asked Questions
Q1: What is the transmission speed of the TIC-L003-11 connector? A: The TIC-L003-11 supports 10/100 BASE-T speeds, making it ideal for standard Ethernet applications.
Q2: Does this RJ45 connector include integrated LEDs? A: No, this specific model (TIC-L003-11) is designed without LEDs for a more compact and specific circuit requirement.
Q3: Is the TIC-L003-11 compliant with environmental standards? A: Yes, it is RoHS compliant (RoHS-5) with lead in solder exemption and follows active environmental policies.
Q4: What are the operating temperature ranges for this modular plug? A: It is designed to operate in temperatures ranging from 0 to 70°C, with industrial options supporting -40 to 85°C.
Q5: What type of plating is used on the contact mating area? A: The contacts feature high-quality gold plating available in 6u", 15u", or 30u" thicknesses to ensure superior connectivity.
Q6: What is the mounting orientation for the PCB? A: This connector features a side entry (right angle) PCB mount angle with a T-post for secure retaining.
