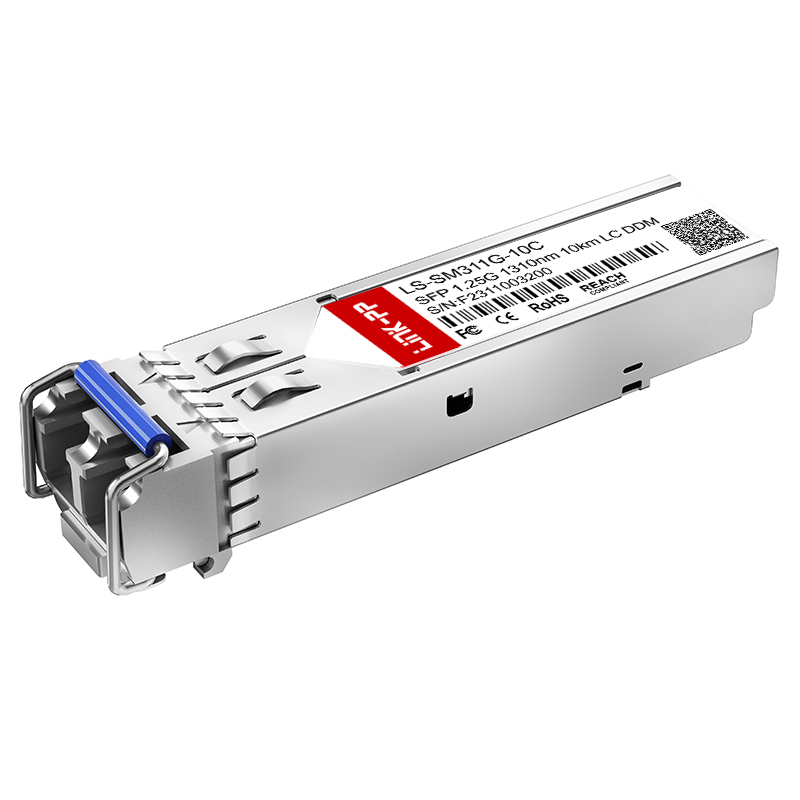

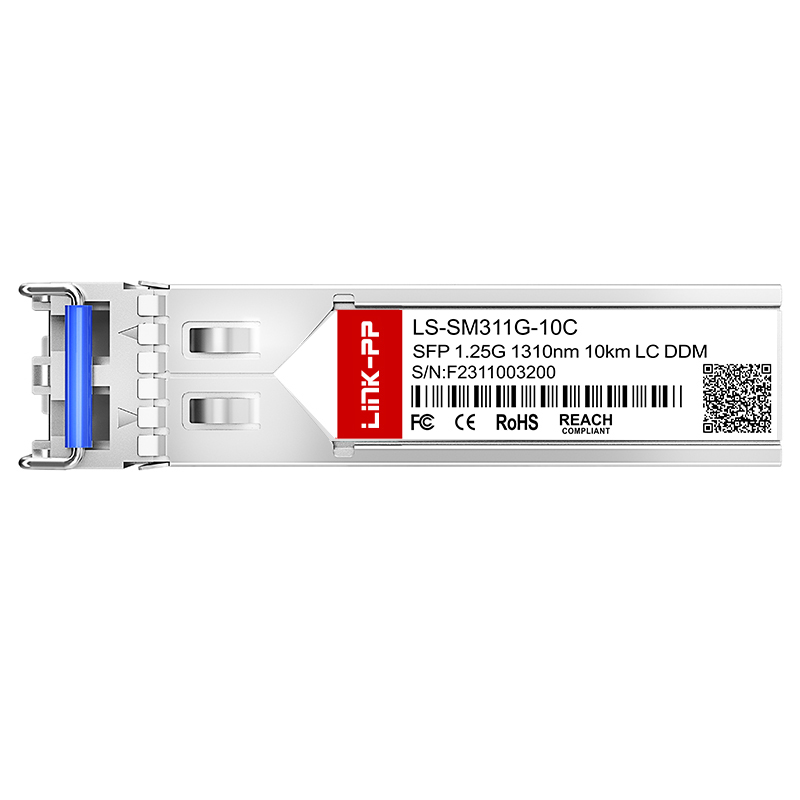

| Item | 1.25G SFP Module |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gpps |
| Wavelength | 1310nm |
| Max Cable Distance | 10KM |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | FP/PIN |
| TX Power | -9.5 ~ -3dBm |
| Receiver Sensitivity | < -20dBm |
| Power Consumption | ≤1W |
| Receiver Overload | -3dBm |
| DDM/DOM | Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty | 5 Years |
| Sample | Available |
We provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
For global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
