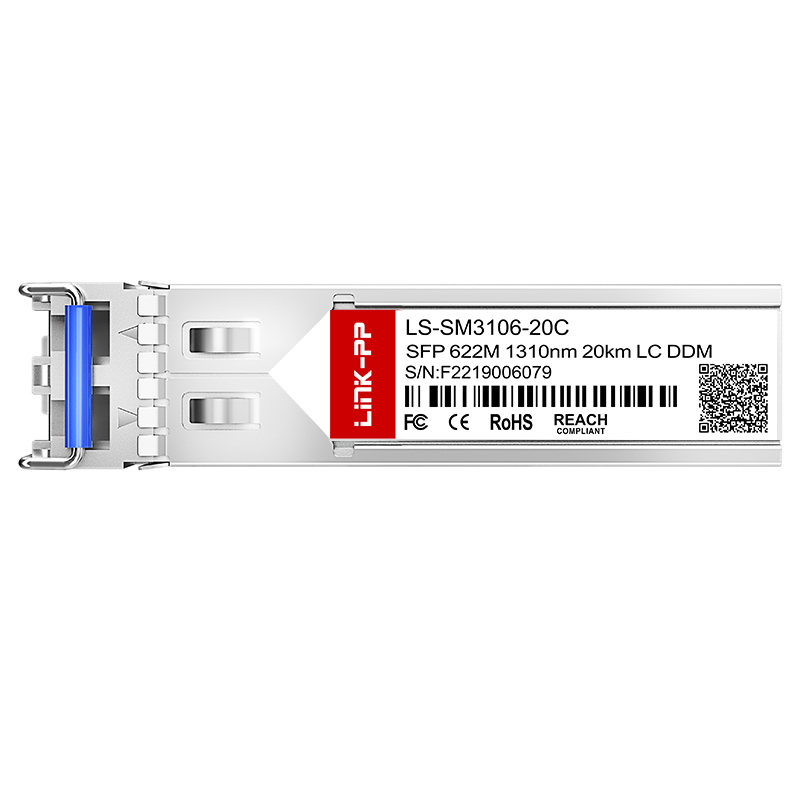

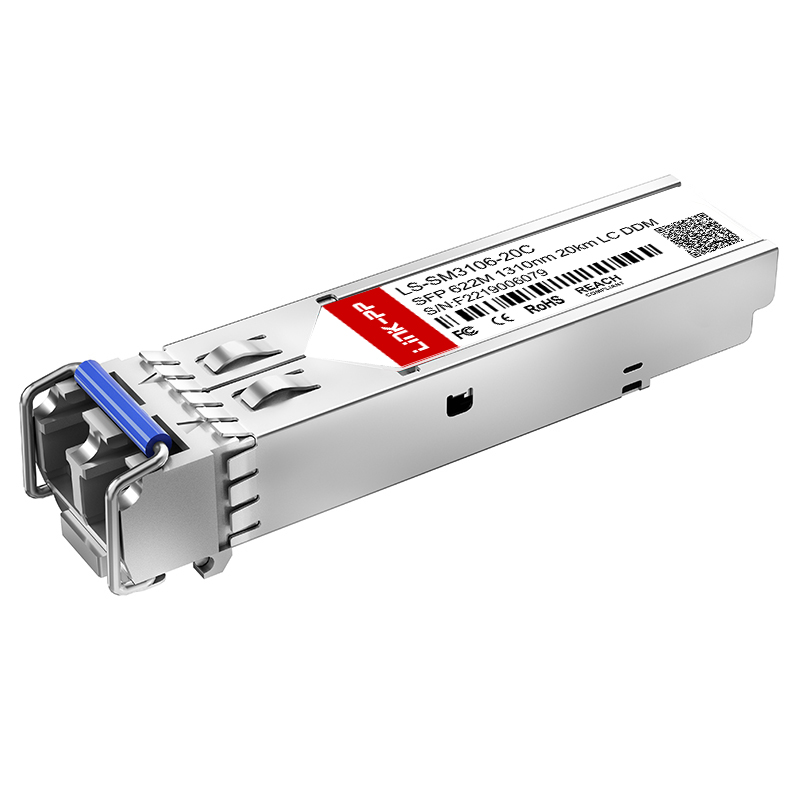

| Part No. | LS-SM3106-20C |
| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
● Over 10 years of expertise in chips and modules integration.
● Optimized for fast speeds, compact size, and power efficiency.
● Full series support for fixed access, wireless, carrier Ethernet, and WDM networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
Providing end-to-end DWDM devices including active modules and optical passive devices such as amplifiers (EDFA & RFA), Mux/Demux, and ROADM.
High-speed optical interconnection solutions ranging from 10G to 800G, designed to meet massive data transmission demands in modern data centers.
High-performance solutions for 4G/5G systems, covering Dark Fiber, WDM, Radio over Fiber, and Back-haul scenarios using mainstream chip technology.
Total fiber access solutions and line monitoring systems (OLP/OLM) to ensure the stability and protection of global communication lines.
