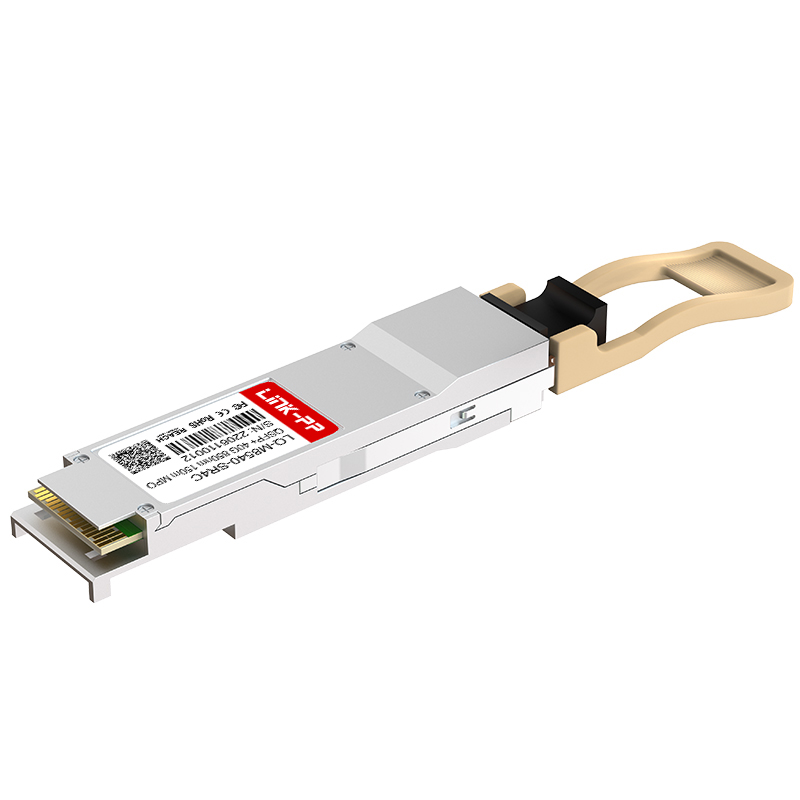

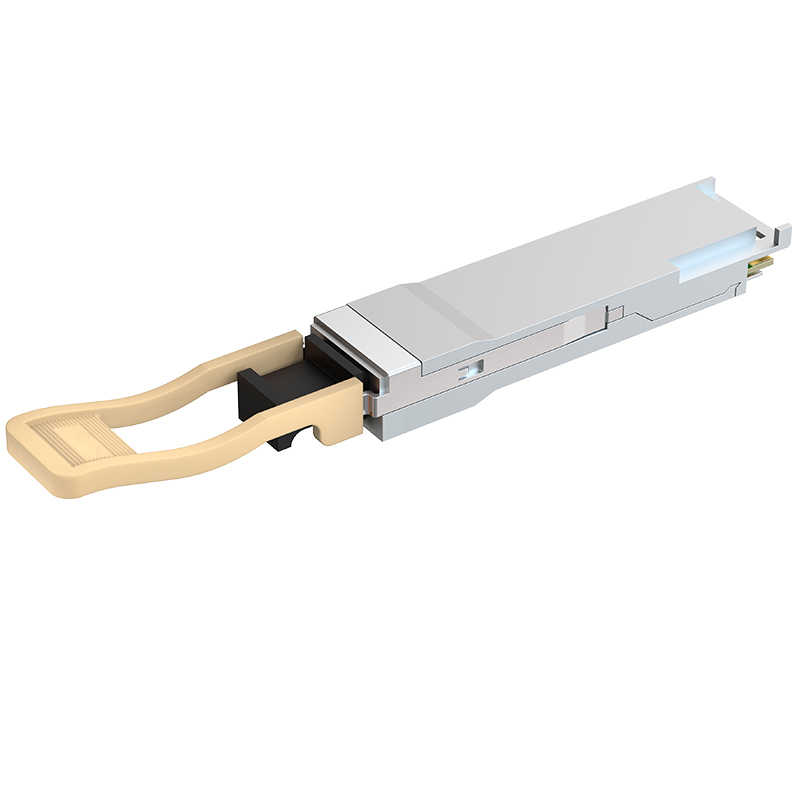

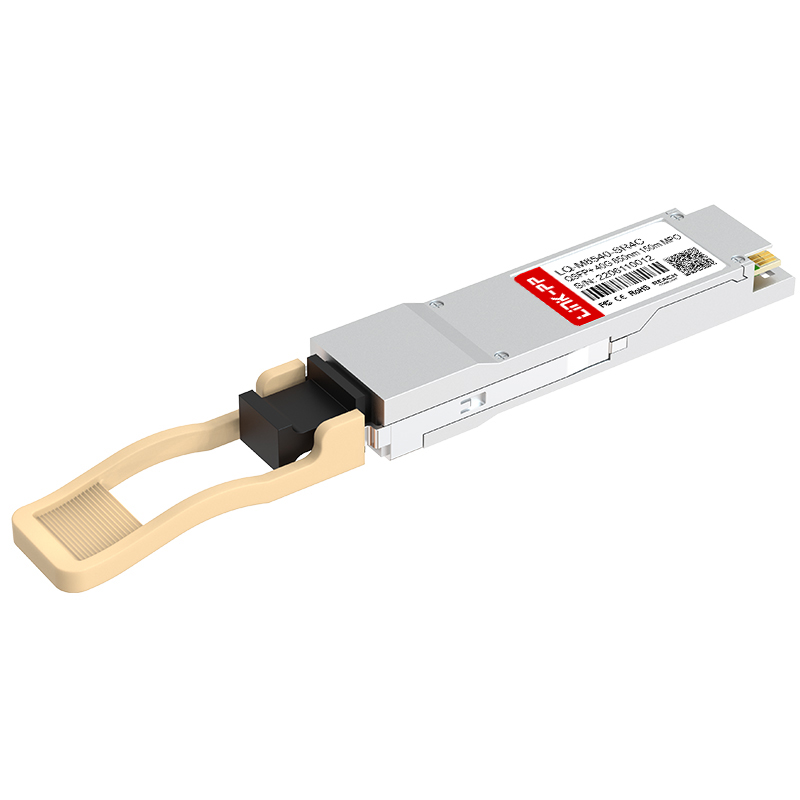

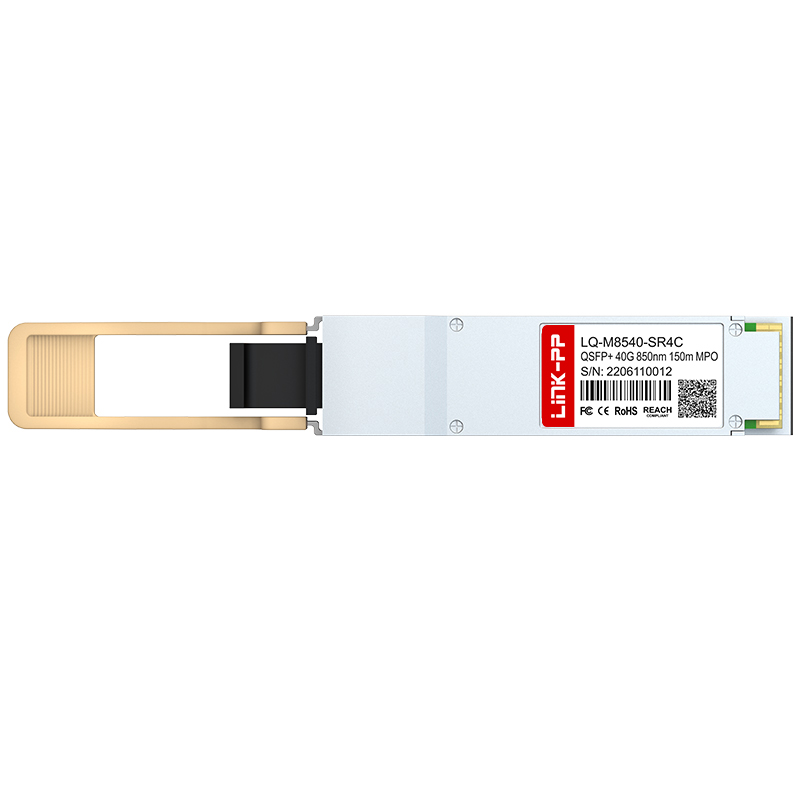

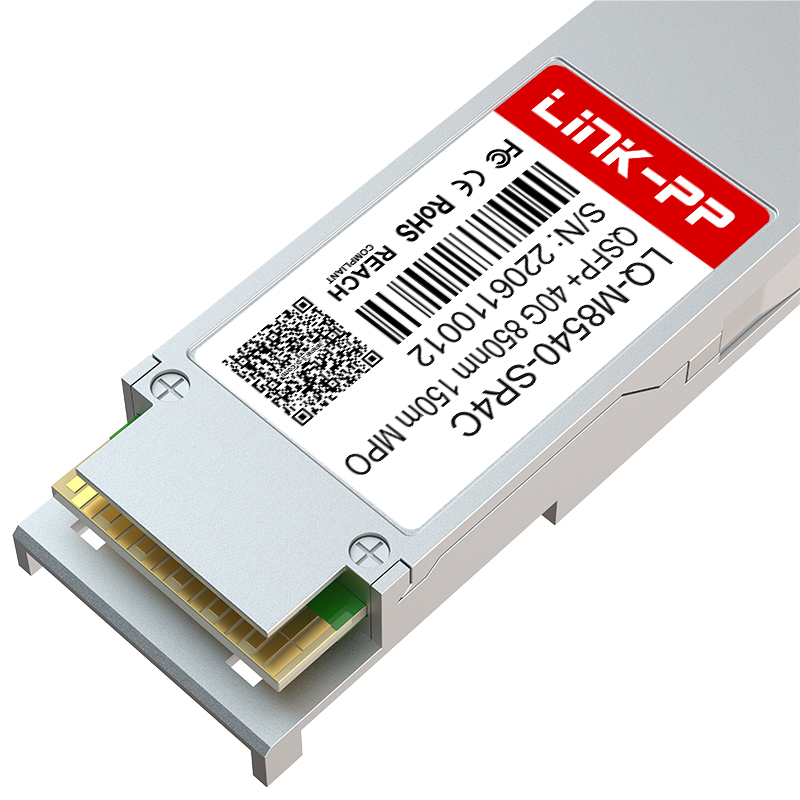

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
Products Description
| Item | 40G Optical Modules |
| Replaceable Part | Cisco, HW, Arista, Juniper, Brocade, Intel, etc |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 41.25Gbps (4x 10.3125Gbps) |
| Wavelength | 850nm |
| Max Cable Distance | 150m@OM4/100m@OM3 |
| Media | MMF |
| Connector | MTP/MPO-12 Male |
| Optical Component | VCSEL/PIN |
| TX Power | -7.1~1.9dBm |
| Receiver Sensitivity | < -10.3dBm |
| Power Budget | 3.5dB |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1.5W |
| Extinction Ratio | >3dB |
| DDM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
| Warranty | 5 Years |
