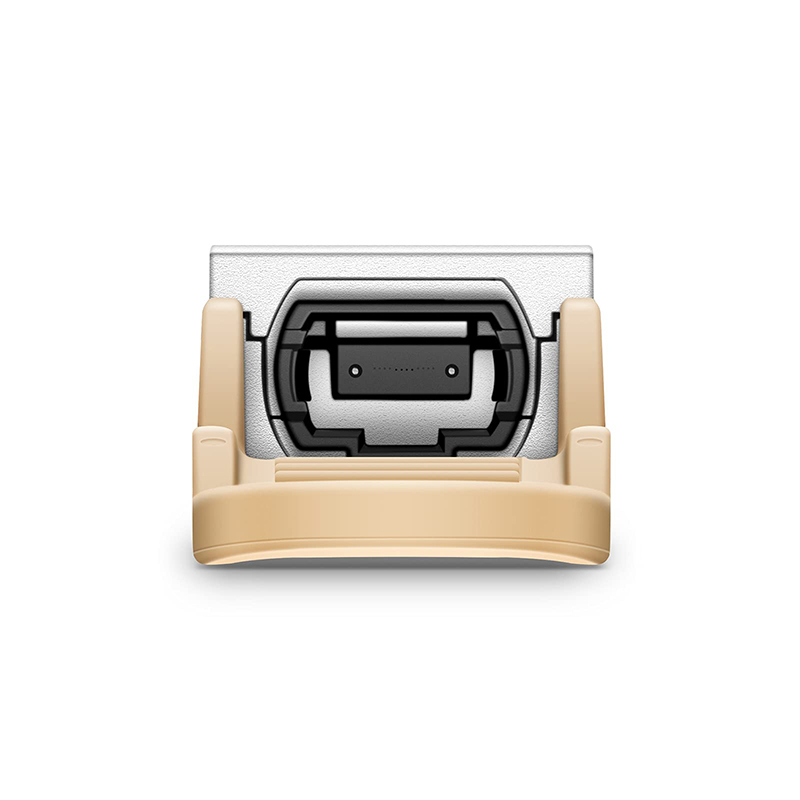

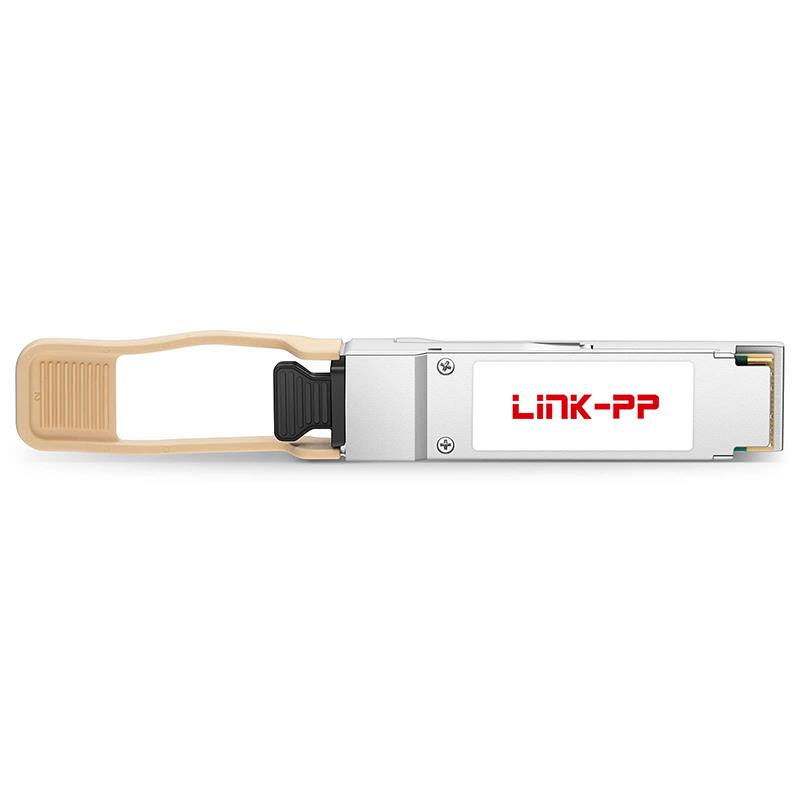

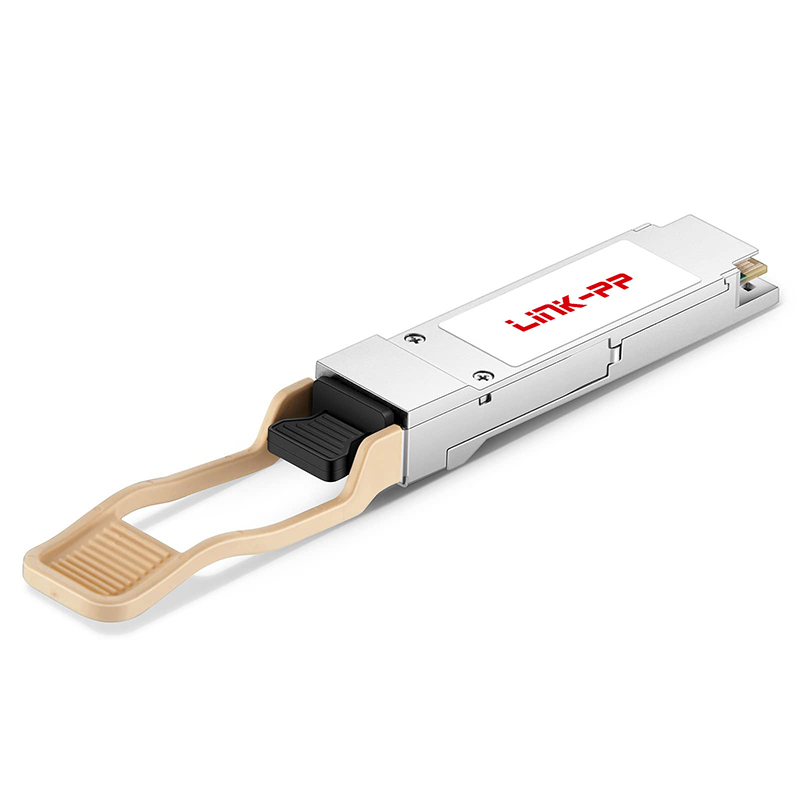

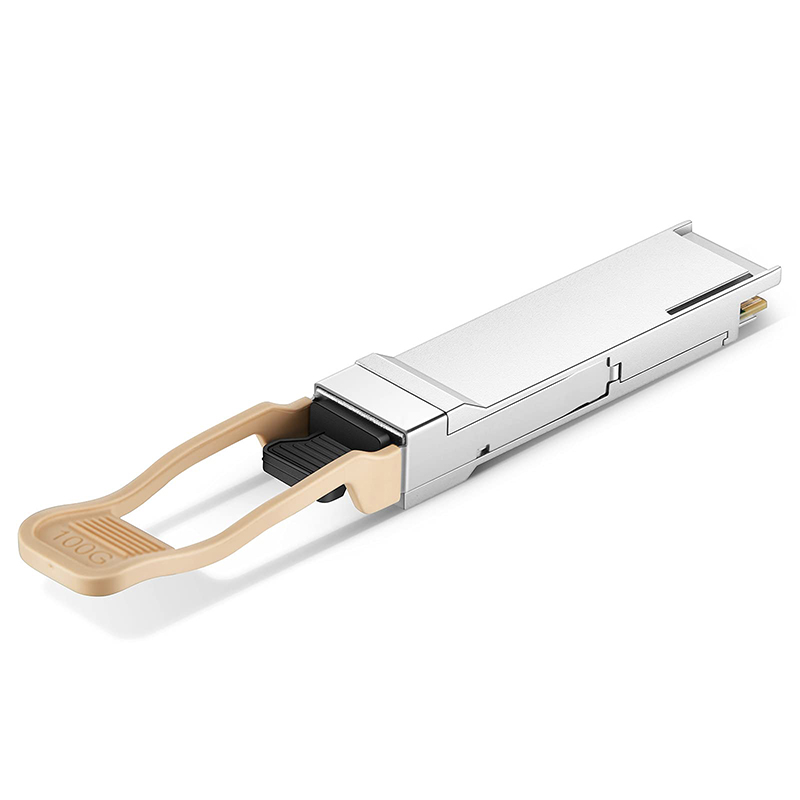

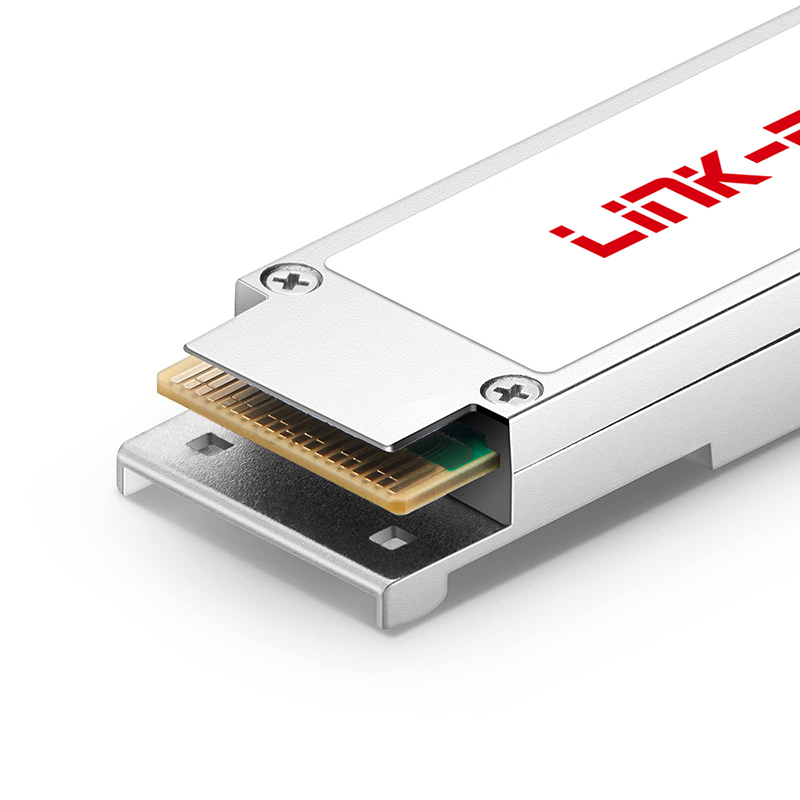

200GBASE-SR4 Optical Transceiver Module MTP/MPO-12 MMF Multimode 850nm 200G QSFP56 100m
| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP56 |
| Max Data Rate | 200Gbps |
| Max Cable Distance | 70m@OM3 / 100m@OM4 |
| Wavelength | 850nm |
| Connector | MTP/MPO-12 UPC |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -3~3dBm |
| Receiver Sensitivity | -6.5dBm |
| Powerbudget | 3.5dB |
| Receiver Overload | 5dBm |
| Power Consumption | ≤5W |
| Extinction Ratio | 3dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | 200G Ethernet, Data centers Interconnect, High performance computing |
As a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, we own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short lead time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
