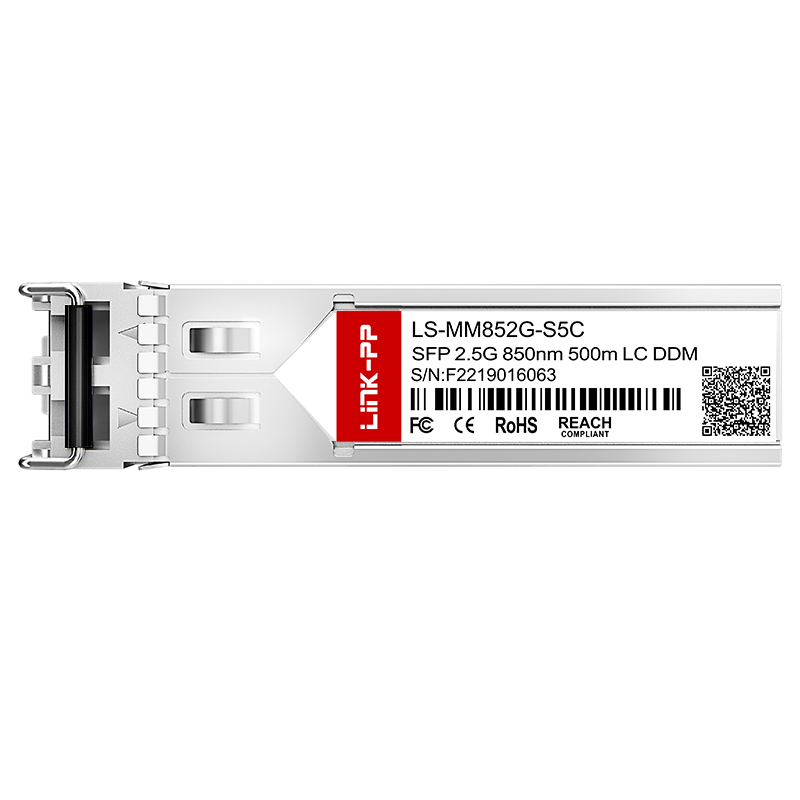

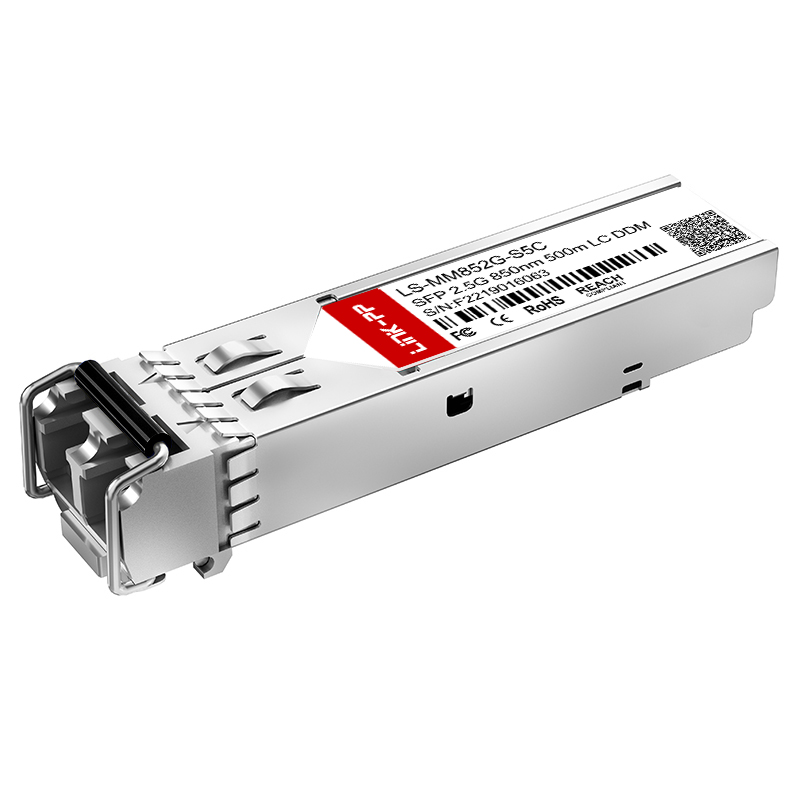

| Part No. | LS-MM852G-S5C |
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 550m |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -9 ~ 0dBm |
| Receiver Sensitivity | < -18dBm |
| DDM/DOM | Supported |
| Protocols | SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, SFF-8472 |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
Drawing on over 10 years of expertise in chips and modules, we integrate fast speeds, compact sizing, power efficiency, and high performance into every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, WDM, and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM852G-S3C | 2.5Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM852G-S5C | 2.5Gbps | 850nm | 550m | Multi-mode | Yes |
| LS-SM312G-02C | 2.5Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM312G-10C | 2.5Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM312G-20C | 2.5Gbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM552G-40C | 2.5Gbps | 1550nm | 40km | Single Mode | Yes |
| LS-SM552G-80C | 2.5Gbps | 1550nm | 80km | Single Mode | Yes |
Providing end-to-end DWDM devices including active modules and passive devices like optical amplifiers (EDFA & RFA), Mux & Demux, OPM, and ROADM.
Meeting mass data transmission demands with high-speed modules ranging from 10G to 800G, ensuring high-quality interconnection for modern data centers.
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. With advanced manufacturing and testing equipment, we maintain a monthly production capacity of 3000K units, ensuring rapid delivery and high reliability across the globe.
