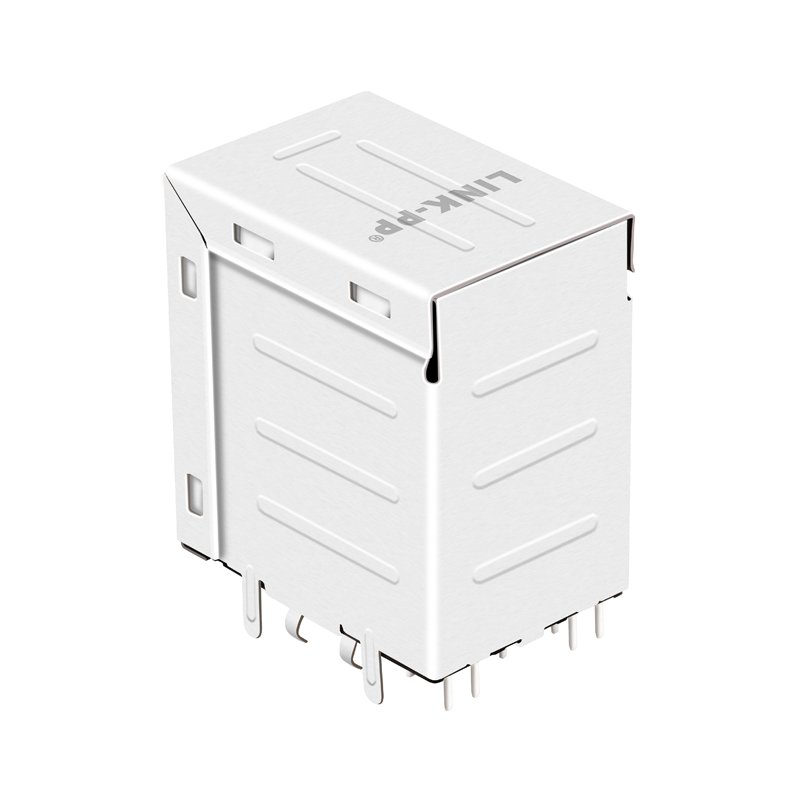

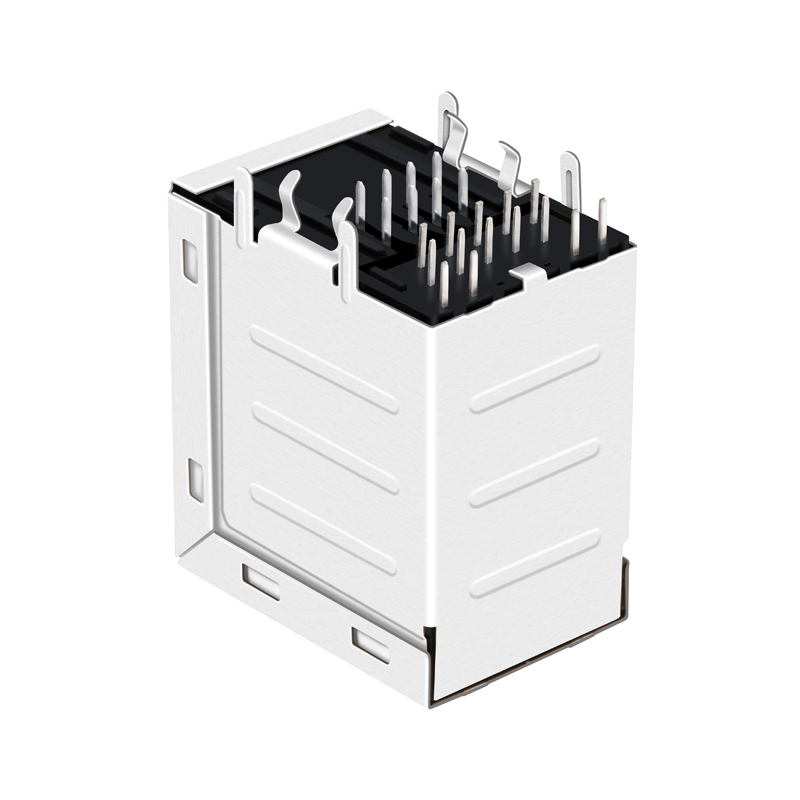

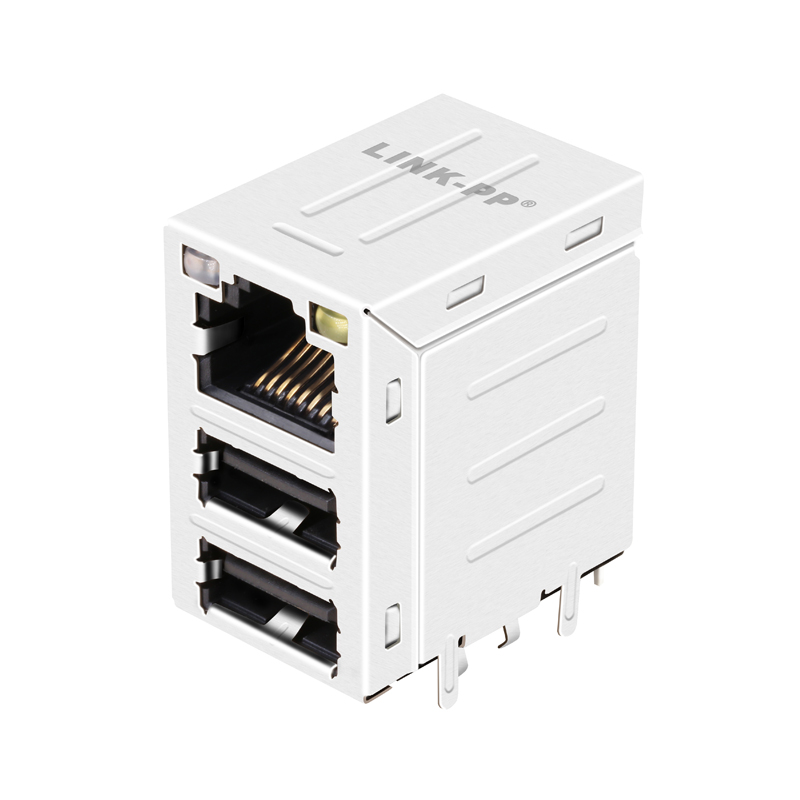

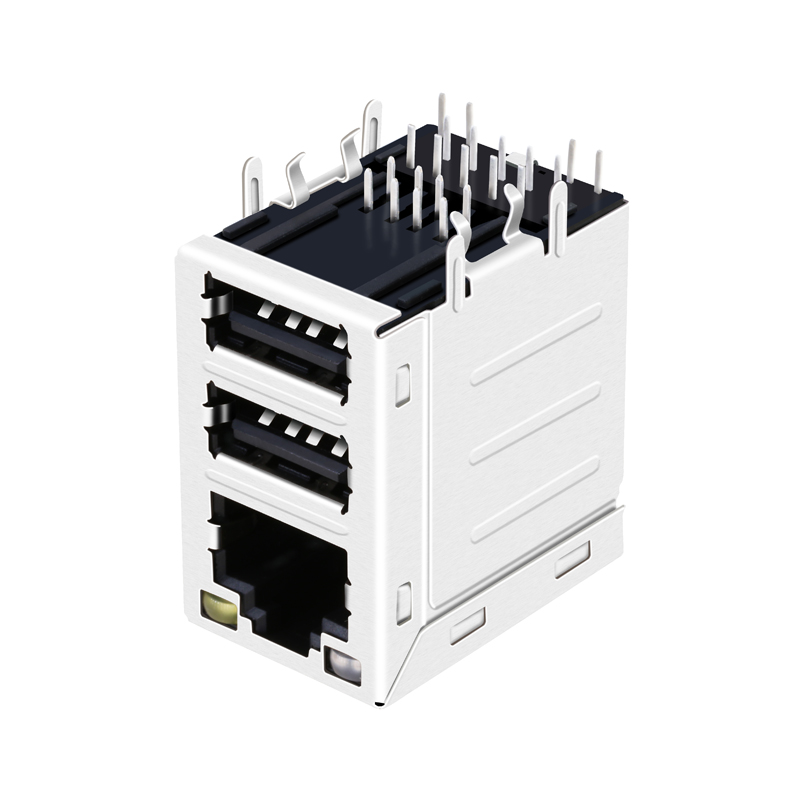

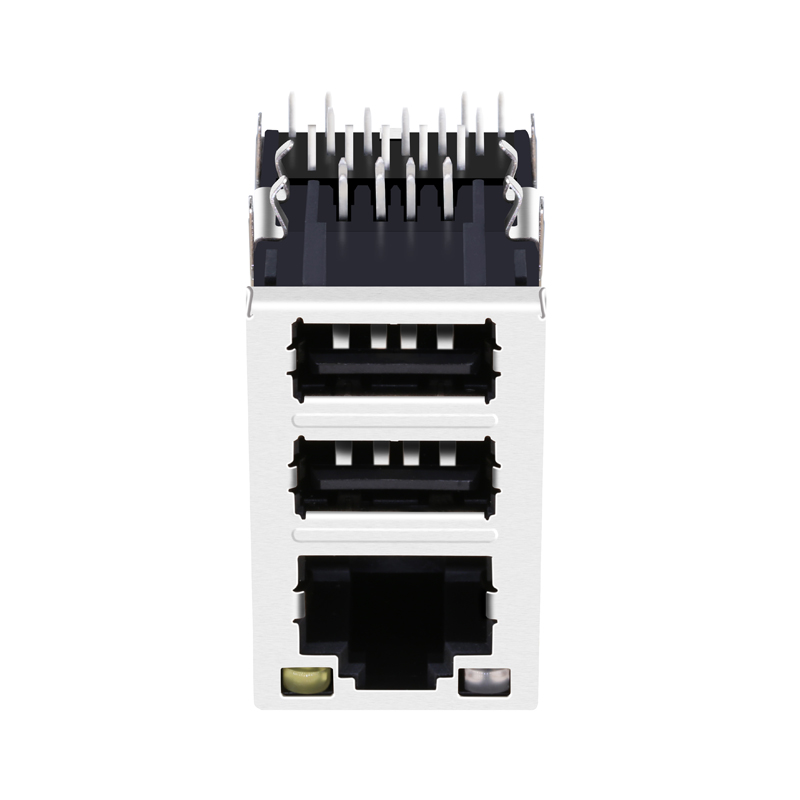

| Item | RJ45 Female Connector |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | Single Port With 2 USB |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Temperature Range | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutoMDX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have approximately 2,000 staff at present. With an abundant production capacity of 3,000K per month, we are able to deliver goods within a short lead time.
Main Products: 10/100/1000M LAN pulse transformers, filters, and RJ45 connectors with magnetic integration. We also provide T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN/ADSL/VDSL splitters. Our products are widely used in networking equipment such as Hubs, Switches, Routers, IP Phones, and xDSL modems, exported to more than 30 countries globally.
