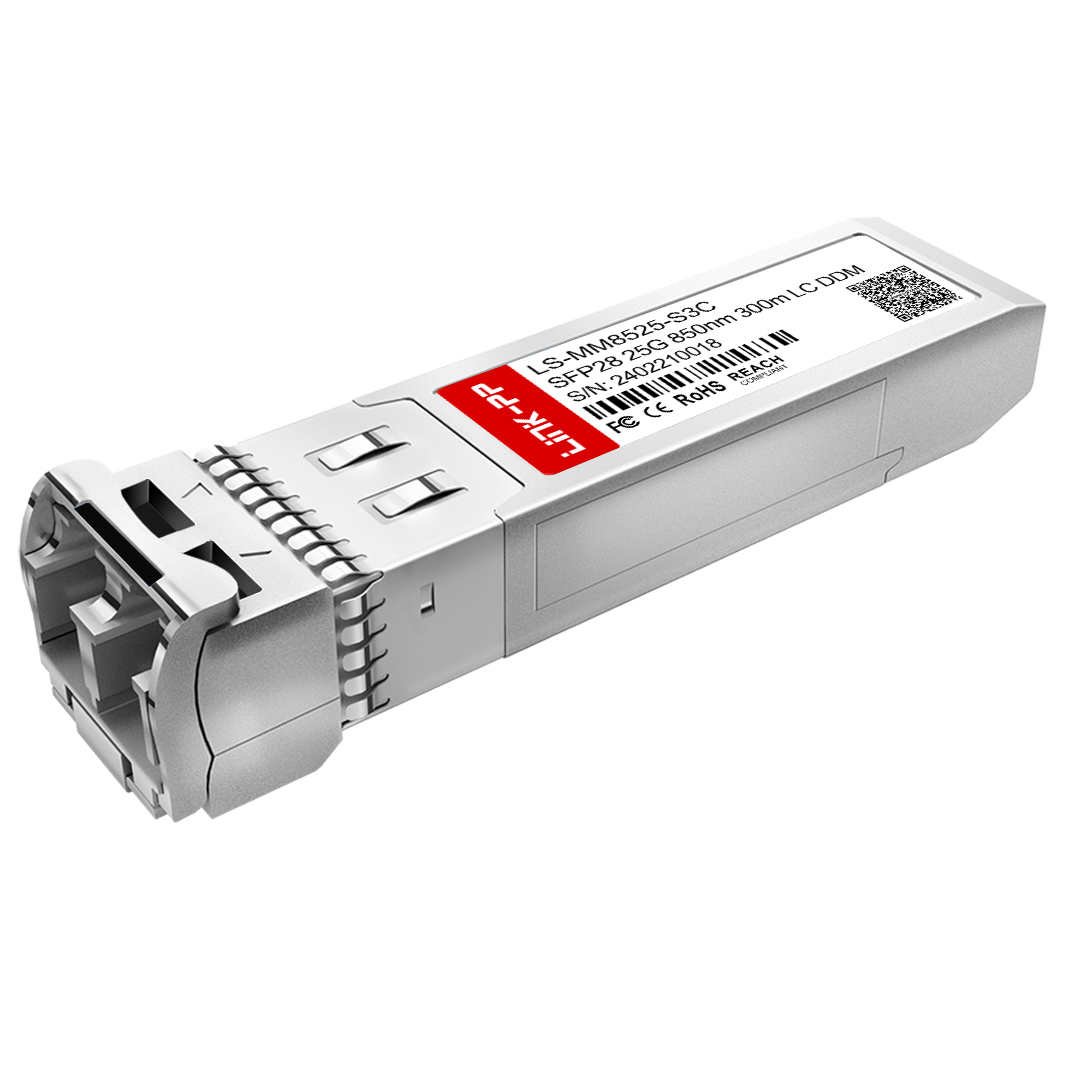

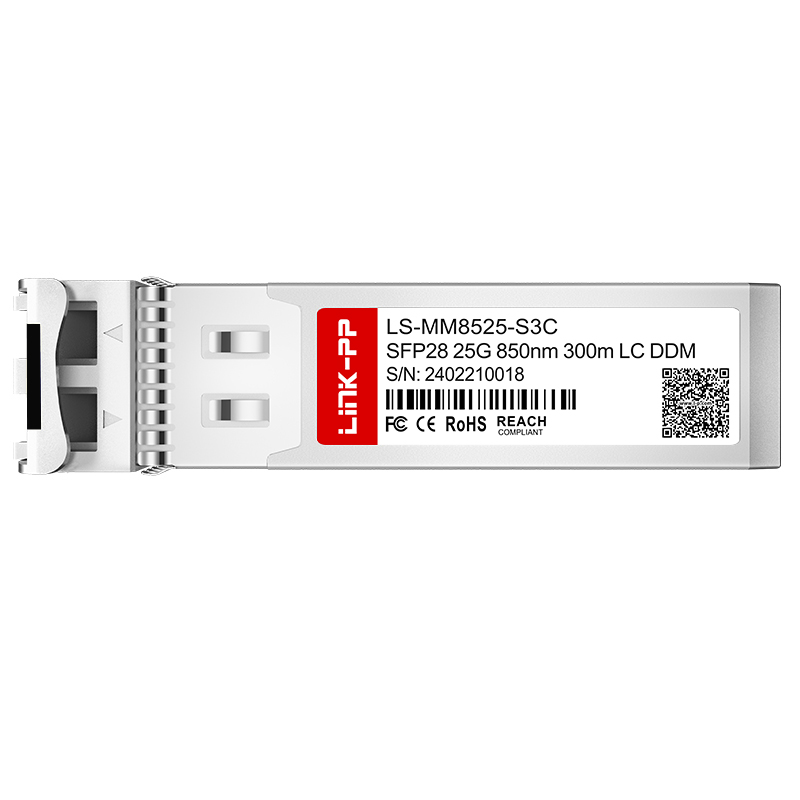

| Item | 25G SFP28 Transceiver |
| Part No. | LS-MM8525-S3C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -6.4~2.4dBm |
| Receiver Sensitivity | <-6dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | 2dB |
| DDM/DOM | Supported |
| Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
| Warranty | 5 Years |
| Sample | Available |
