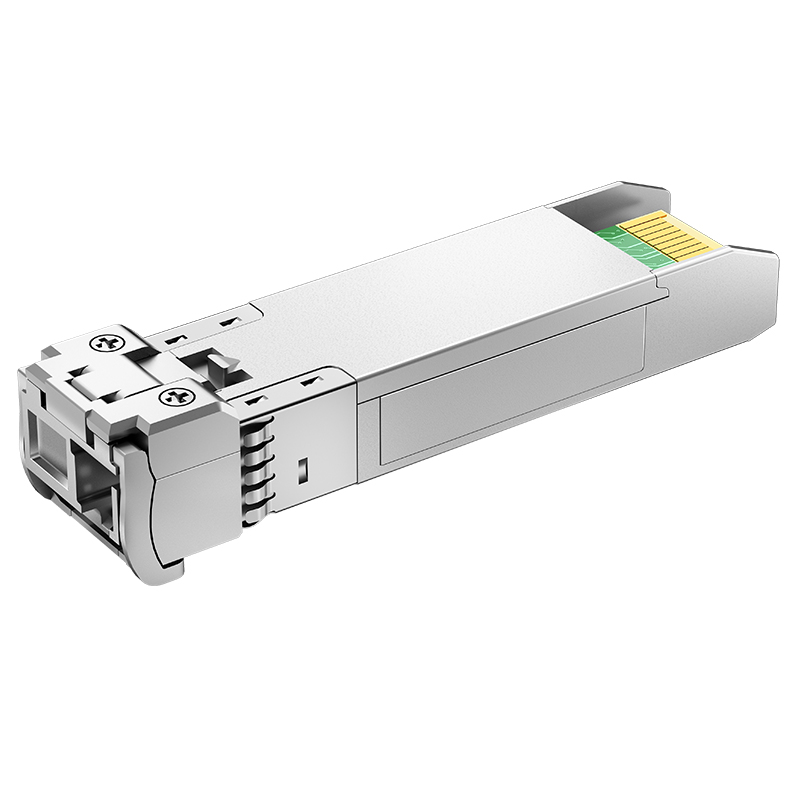

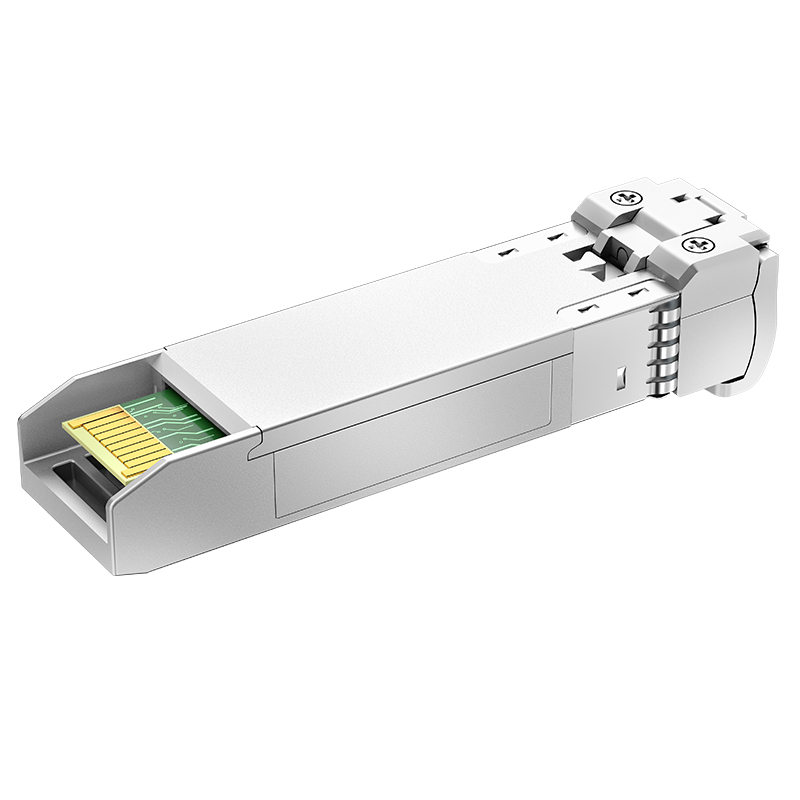

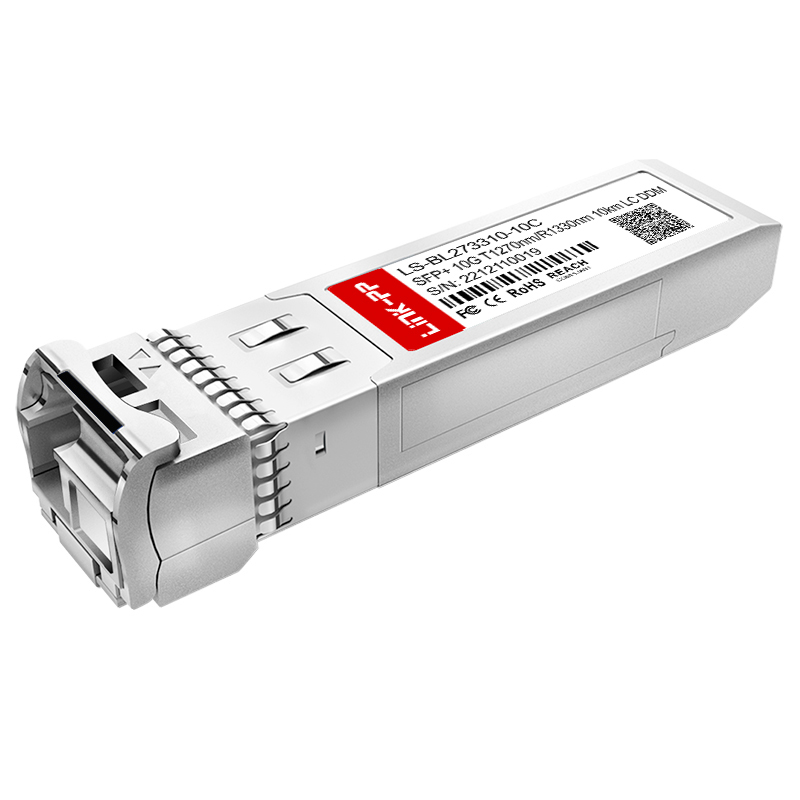

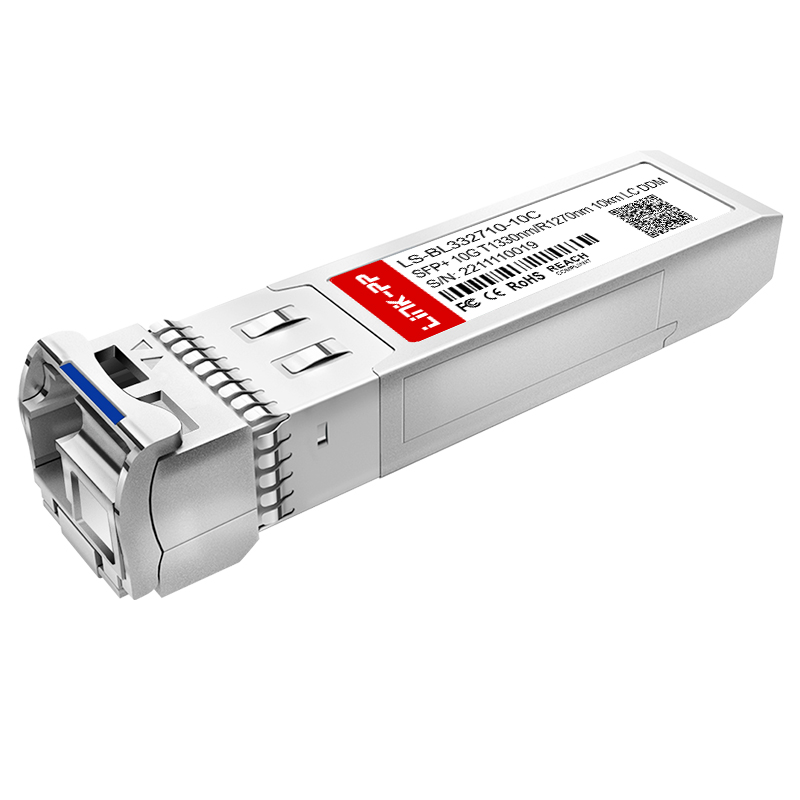

Single Mode Bidirectional 10G BiDi SFP+ 1270nm/1330nm 10km Simplex LC SMF Optical Transceiver Module

1 / 5

Single Mode Bidirectional 10G BiDi SFP+ 1270nm/1330nm 10km Simplex LC SMF Optical Transceiver Module

Send Inquiry

Product Description

Single Mode Bidirectional 10G BiDi SFP+ 1270nm/1330nm 10km Simplex LC SMF Optical Transceiver Module

Products Description

Item	10G BiDi SFP+
Part Status	Active
Form Factor	SFP+
Max Data Rate	10G
Max Cable Distance	10km
Wavelength	1270nm/1330nm
Connector	Simplex LC
Optical Components	DFB/PIN
Media	SMF
TX Power	-8.2~0.5dBm
Receiver Sensitivity	<-14.4dBm
Powerbudget	6.2dB
Receiver Overload	0.5dBm
Power Consumption	≤1W
DDM/DOM	DDM Supported
Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	SFP+ MSA Compliant, CPRI, eCPRI
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTION

🚀 We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

10-25G BiDi Transceiver Solutions

Application Scenarios

Optical Transport Networks

End-to-end DWDM devices with active modules and optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.

Cloud and Enterprise

Meeting mass data transmission demands in data centers with high-speed optical modules ranging from 10G to 800G for high-quality interconnection.

Wireless

High reliability and performance products for 4G/5G systems, covering Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul.

FTTx

Total FTTx optical fiber access solutions covering all-optical or optical copper combined access for global communication network constructors.

Subsystems

Integrating optical line protection systems (OLP) and optical line monitoring systems (OLM) to ensure normal operation of communication lines.

Manufacturing & Quality Control

Why Choose Us

Frequently Asked Questions

What is a 10G BiDi SFP+ transceiver?

A BiDi (Bidirectional) transceiver allows for communication over a single strand of fiber by using two different wavelengths for transmitting and receiving signals (e.g., 1270nm and 1330nm).

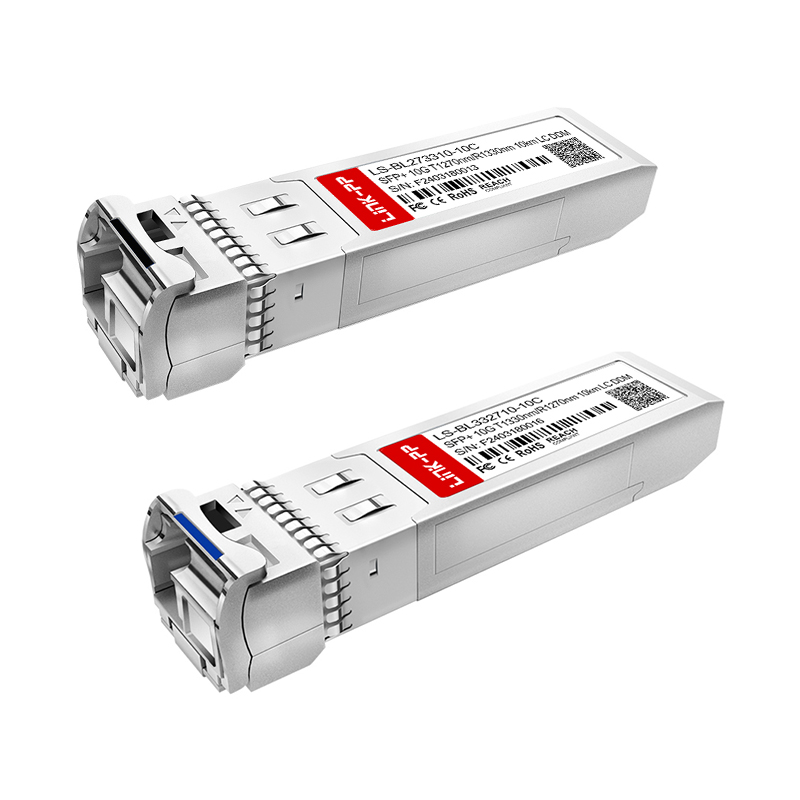

Do I need to use these in pairs?

Yes, BiDi transceivers must be used in pairs. If one side transmits at 1270nm and receives at 1330nm, the other side must transmit at 1330nm and receive at 1270nm.

What type of fiber cable is required for this module?

This module requires Single Mode Fiber (SMF) with a Simplex LC connector for optimal performance over distances up to 10km.

Does this 10G BiDi SFP+ support DDM?

Yes, Digital Diagnostic Monitoring (DDM) is supported, allowing you to monitor real-time parameters such as temperature, optical power, and voltage.

Can I get a sample for testing?

Yes, samples are available for quality evaluation. Please contact our support team to discuss your specific testing requirements.

What is the warranty period for these modules?

We provide a 5-year warranty on our optical transceiver modules, ensuring long-term reliability and technical support.

Product Detail

Single Mode Bidirectional 10G BiDi SFP+ 1270nm/1330nm 10km Simplex LC SMF Optical Transceiver Module

Product Description
